Zero Length Flanges

料號 尺寸 (Dimension in mm)
CF-ZL-212x133T
Main Flange: CF2.12" (DN25)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes

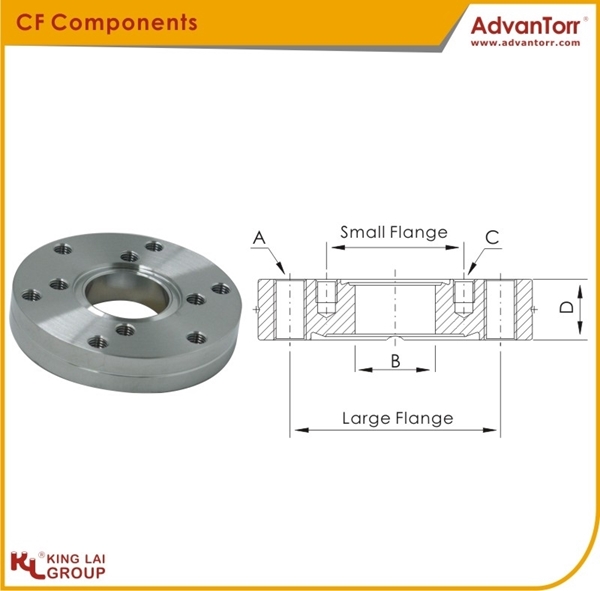

Large FlangeSmall FlangeAB (mm)CD (mm)
CF2.12"CF1.33" (DN16)1/4-2815.758-3211.9
CF-ZL-275x133Z
Main Flange: CF2.75" (DN40)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF2.75"CF1.33" (DN16)6.7315.758-3212.7
CF-ZL-275x212T
Main Flange: CF2.75" (DN40)
Small Flange: CF2.12" (DN25)
Bolt Hole Type: Inch tapped holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF2.75"CF2.12" (DN25)1/4-2825.41/4-2812.7
CF-ZL-338x133Z
Main Flange: CF3.38" (DN50)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF3.38"CF1.33" (DN16)8.4315.758-3216
CF-ZL-338x212Z
Main Flange: CF3.38" (DN50)
Small Flange: CF2.12" (DN25)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF3.38"CF2.12" (DN25)8.4325.41/4-2816
CF-ZL-338x275T
Main Flange: CF3.38" (DN50)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF3.38"CF2.75" (DN40)5/16-2438.11/4-2816
CF-ZL-450x133Z
Main Flange: CF4.50" (DN63)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.50"CF1.33" (DN16)8.4315.758-3217.4
CF-ZL-450x212Z
Main Flange: CF4.50" (DN63)
Small Flange: CF2.12" (DN25)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.50"CF2.12" (DN25)8.4325.41/4-2817.4
CF-ZL-450x275Z
Main Flange: CF4.50" (DN63)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.50"CF2.75" (DN40)8.4338.11/4-2817.4
CF-ZL-450x338T
Main Flange: CF4.50" (DN63)
Small Flange: CF3.38" (DN50)
Bolt Hole Type: Inch tapped holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.50"CF3.38" (DN50)5/16-2450.85/16-2417.4
CF-ZL-462x133Z
Main Flange: CF4.62" (DN80)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.62"CF1.33" (DN16)8.4315.758-3219.1
CF-ZL-462x212Z
Main Flange: CF4.62" (DN80)
Small Flange: CF2.12" (DN25)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.62"CF2.12" (DN25)8.4325.41/4-2819.1
CF-ZL-462x275Z
Main Flange: CF4.62" (DN80)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.62"CF2.75" (DN40)8.4338.11/4-2819.1
CF-ZL-462x338Z
Main Flange: CF4.62" (DN80)
Small Flange: CF3.38" (DN50)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.62"CF3.38" (DN50)8.4350.85/16-2419.1
CF-ZL-600x133Z
Main Flange: CF6.00" (DN100)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF1.33" (DN16)8.4315.758-3219.8
CF-ZL-600x212Z
Main Flange: CF6.00" (DN100)
Small Flange: CF2.12" (DN25)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF2.12" (DN25)8.4325.41/4-2819.8
CF-ZL-600x275Z
Main Flange: CF6.00" (DN100)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF2.75" (DN40)8.4338.11/4-2819.8
CF-ZL-600x338Z
Main Flange: CF6.00" (DN100)
Small Flange: CF3.38" (DN50)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF3.38" (DN50)8.4350.85/16-2419.8
CF-ZL-600x450Z
Main Flange: CF6.00" (DN100)
Small Flange: CF4.50" (DN63)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF4.50" (DN63)8.4363.55/16-2419.8
CF-ZL-600x462Z
Main Flange: CF6.00" (DN100)
Small Flange: CF4.62" (DN80)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF4.62" (DN80)8.4376.25/16-2419.8
CF-ZL-675x275Z
Main Flange: CF6.75" (DN130)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.75"CF2.75" (DN40)8.4338.11/4-2821.34
CF-ZL-675x450Z
Main Flange: CF6.75" (DN130)
Small Flange: CF4.50" (DN63)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.75"CF4.50" (DN63)8.4363.55/16-2421.34
CF-ZL-800x133Z
Main Flange: CF8.00" (DN160)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF8.00"CF1.33" (DN16)8.4315.758-3222.35
CF-ZL-800x275Z
Main Flange: CF8.00" (DN160)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF8.00"CF2.75" (DN40)8.4338.11/4-2822.35
CF-ZL-800x450Z
Main Flange: CF8.00" (DN160)
Small Flange: CF4.50" (DN63)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF8.00"CF4.50" (DN63)8.4363.55/16-2422.35
CF-ZL-800x600Z
Main Flange: CF8.00" (DN160)
Small Flange: CF6.00" (DN100)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF8.00"CF6.00" (DN100)8.43101.65/16-2422.35
CF-ZL-1000x133Z
Main Flange: CF10.00" (DN200)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF1.33" (DN16)8.4315.758-3224.6
CF-ZL-1000x275Z
Main Flange: CF10.00" (DN200)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF2.75" (DN40)8.4338.11/4-2824.6
CF-ZL-1000x450Z
Main Flange: CF10.00" (DN200)
Small Flange: CF4.50" (DN63)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF4.50" (DN63)8.4363.55/16-2424.6
CF-ZL-1000x600Z
Main Flange: CF10.00" (DN200)
Small Flange: CF6.00" (DN100)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF6.00" (DN100)8.43101.65/16-2424.6
CF-ZL-1000x800Z
Main Flange: CF10.00" (DN200)
Small Flange: CF8.00" (DN160)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF8.00" (DN160)8.43152.45/16-2424.6
CF-ZL-1325x133Z
Main Flange: CF13.25" (DN270)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF13.25"CF1.33" (DN16)10.4915.758-3228.45
CF-ZL-1325x275Z
Main Flange: CF13.25" (DN270)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF13.25"CF2.75" (DN40)10.4938.11/4-2828.45
CF-ZL-1325x450Z
Main Flange: CF13.25" (DN270)
Small Flange: CF4.50" (DN63)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF13.25"CF4.50" (DN63)10.4963.55/16-2428.45
CF-ZL-1325x600Z
Main Flange: CF13.25" (DN270)
Small Flange: CF6.00" (DN100)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF13.25"CF6.00" (DN100)10.49101.65/16-2428.45
CF-ZL-1325x800Z
Main Flange: CF13.25" (DN270)
Small Flange: CF8.00" (DN160)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF13.25"CF8.00" (DN160)10.49152.45/16-2428.45
CF-ZL-1325x1000Z
Main Flange: CF13.25" (DN270)
Small Flange: CF10.00" (DN200)
Bolt Hole Type: A: Inch tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF13.25"CF10.00" (DN200)10.49203.25/16-2428.45
CF-ZL-275x133Y
Main Flange: CF2.75" (DN40)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF2.75"CF1.33" (DN16)6.7315.75M412.7
CF-ZL-275x212Y
Main Flange: CF2.75" (DN40)
Small Flange: CF2.12" (DN25)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF2.75"CF2.12" (DN25)6.7325.4M612.7
CF-ZL-338x212Y
Main Flange: CF3.38" (DN50)
Small Flange: CF2.12" (DN25)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF3.38"CF2.12" (DN25)8.4325.4M616
CF-ZL-338x275M
Main Flange: CF3.38" (DN50)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF3.38"CF2.75" (DN40)M838.1M616
CF-ZL-338x275Y
Main Flange: CF3.38" (DN50)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF3.38"CF2.75" (DN40)8.4338.1M616
CF-ZL-450x133Y
Main Flange: CF4.50" (DN63)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.50"CF1.33" (DN16)8.4315.75M417.4
CF-ZL-450x212Y
Main Flange: CF4.50" (DN63)
Small Flange: CF2.12" (DN25)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.50"CF2.12" (DN25)8.4325.4M617.4
CF-ZL-450x275Y
Main Flange: CF4.50" (DN63)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF4.50"CF2.75" (DN40)8.4338.1M617.4
CF-ZL-600x133Y
Main Flange: CF6.00" (DN100)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF1.33" (DN16)8.4315.75M419.8
CF-ZL-600x275Y
Main Flange: CF6.00" (DN100)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF2.75" (DN40)8.4338.1M619.8
CF-ZL-600x450Y
Main Flange: CF6.00" (DN100)
Small Flange: CF4.50" (DN63)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF6.00"CF4.50" (DN63)8.4363.5M819.8
CF-ZL-800x133Y
Main Flange: CF8.00" (DN160)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF8.00"CF1.33" (DN16)8.4315.75M422.35
CF-ZL-800x275Y
Main Flange: CF8.00" (DN160)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF8.00"CF2.75" (DN40)8.4338.1M622.35
CF-ZL-800x450Y
Main Flange: CF8.00" (DN160)
Small Flange: CF4.50" (DN63)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF8.00"CF4.50" (DN63)8.4363.5M822.35
CF-ZL-800x600Y
Main Flange: CF8.00" (DN160)
Small Flange: CF6.00" (DN100)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF8.00"CF6.00" (DN100)8.43101.6M822.35
CF-ZL-1000x133Y
Main Flange: CF10.00" (DN200)
Small Flange: CF1.33" (DN16)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF1.33" (DN16)8.4315.75M424.6
CF-ZL-1000x275Y
Main Flange: CF10.00" (DN200)
Small Flange: CF2.75" (DN40)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF2.75" (DN40)8.4338.1M624.6
CF-ZL-1000x450Y
Main Flange: CF10.00" (DN200)
Small Flange: CF4.50" (DN63)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF4.50" (DN63)8.4363.5M824.6
CF-ZL-1000x600Y
Main Flange: CF10.00" (DN200)
Small Flange: CF6.00" (DN100)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF6.00" (DN100)8.43101.6M824.6
CF-ZL-1000x800Y
Main Flange: CF10.00" (DN200)
Small Flange: CF8.00" (DN160)
Bolt Hole Type: A: Metric tapped holes + C: Thru holes
Large FlangeSmall FlangeAB (mm)CD (mm)
CF10.00"CF8.00" (DN160)8.43152.4M824.6
