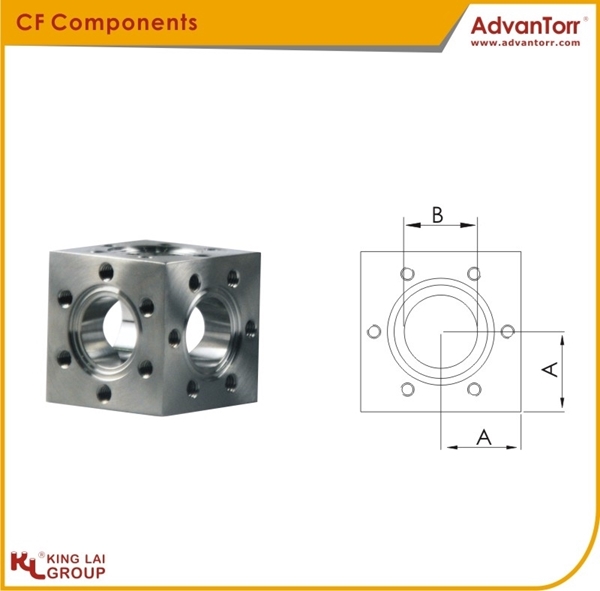

CF 6-way Cubes

料號 尺寸 (Dimension in mm)
CF-6CU-133T
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes
ABDiameter (mm) / Thread Type
1715.758-32
CF-6CU-133M
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Metric tapped holes
ABDiameter (mm) / Thread Type
1715.75M4
CF-6CU-275T
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
ABDiameter (mm) / Thread Type
35.0538.11/4-28
CF-6CU-275M
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
ABDiameter (mm) / Thread Type
35.0538.1M6
CF-6CU-338T
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Inch tapped holes
ABDiameter (mm) / Thread Type
42.550.85/16-24
CF-6CU-338M
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Metric tapped holes
ABDiameter (mm) / Thread Type
42.550.8M8
CF-6CU-450T
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Inch tapped holes
ABDiameter (mm) / Thread Type
56.7563.55/16-24
CF-6CU-450M
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Metric tapped holes
ABDiameter (mm) / Thread Type
56.7563.5M8
CF-6CU-600T
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Inch tapped holes
ABDiameter (mm) / Thread Type
75.8101.65/16-24
CF-6CU-600M
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Metric tapped holes
ABDiameter (mm) / Thread Type
75.8101.6M8
