CF Elbows

料號 尺寸 (Dimension in mm)

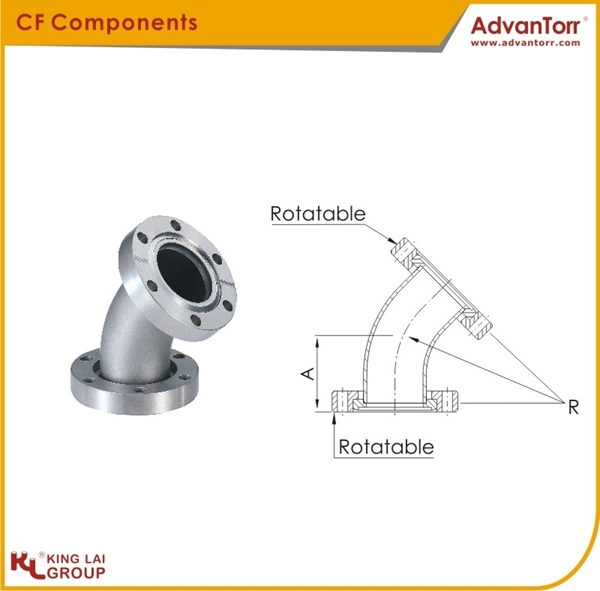

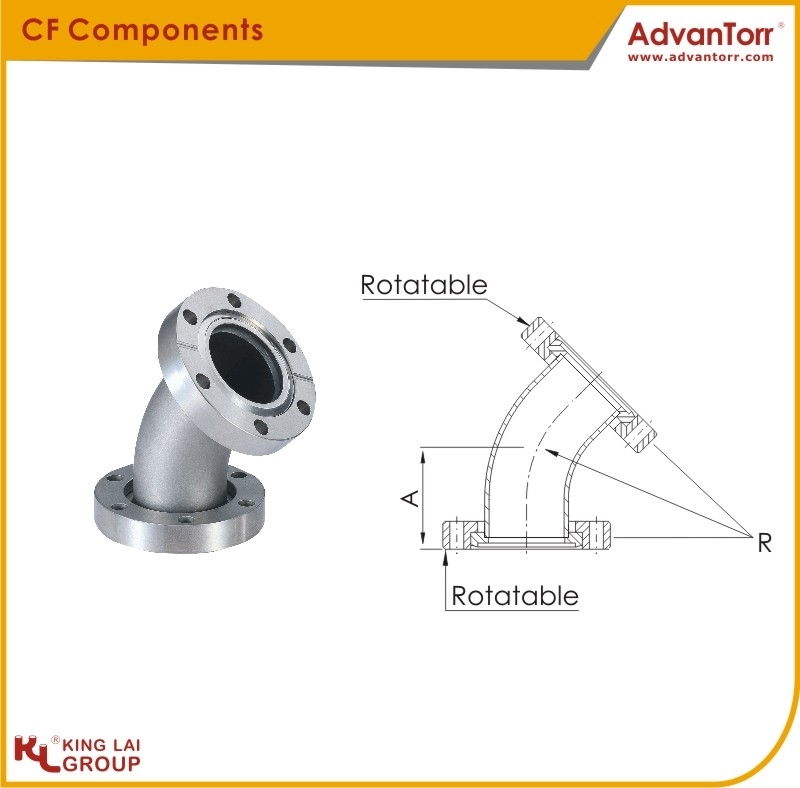

CF-45EL-133
Bend Type: Radius
Angle: 45 Deg
Flange Size: CF1.33" (DN16)
AR
23.825.4
CF-45EL-212
Bend Type: Radius
Angle: 45 Deg
Flange Size: CF2.12" (DN25)
AR
28.938.1
CF-45EL-275
Bend Type: Radius
Angle: 45 Deg
Flange Size: CF2.75" (DN40)
AR
44.257.2
CF-45EL-338
Bend Type: Radius
Angle: 45 Deg
Flange Size: CF3.38" (DN50)
AR
52.576.2
CF-45EL-450
Bend Type: Radius
Angle: 45 Deg
Flange Size: CF4.50" (DN63)
AR
85.695.3
CF-45EL-462
Bend Type: Radius
Angle: 45 Deg
Flange Size: CF4.62" (DN80)
AR
100.6114.3
CF-45EL-600
Bend Type: Radius
Angle: 45 Deg
Flange Size: CF6.00" (DN100)
AR
132.5152.4

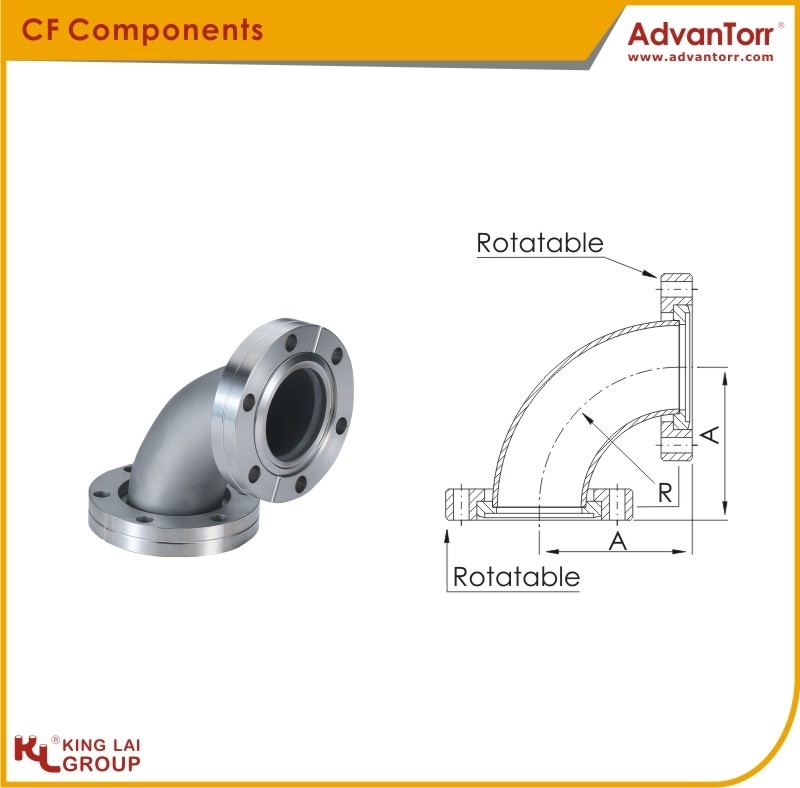

CF-90EL-133
Bend Type: Radius
Angle: 90 Deg
Flange Size: CF1.33" (DN16)
AR
38.128.6
CF-90EL-212
Bend Type: Radius
Angle: 90 Deg
Flange Size: CF2.12" (DN25)
AR
42.438.1
CF-90EL-275
Bend Type: Radius
Angle: 90 Deg
Flange Size: CF2.75" (DN40)
AR
62.557.15
CF-90EL-338
Bend Type: Radius
Angle: 90 Deg
Flange Size: CF3.38" (DN50)
AR
81.876.2
CF-90EL-450
Bend Type: Radius
Angle: 90 Deg
Flange Size: CF4.50" (DN63)
AR
104.695.25
CF-90EL-462
Bend Type: Radius
Angle: 90 Deg
Flange Size: CF4.62" (DN80)
AR
121.4114.3
CF-90EL-600
Bend Type: Radius
Angle: 90 Deg
Flange Size: CF6.00" (DN100)
AR
163.6152.4

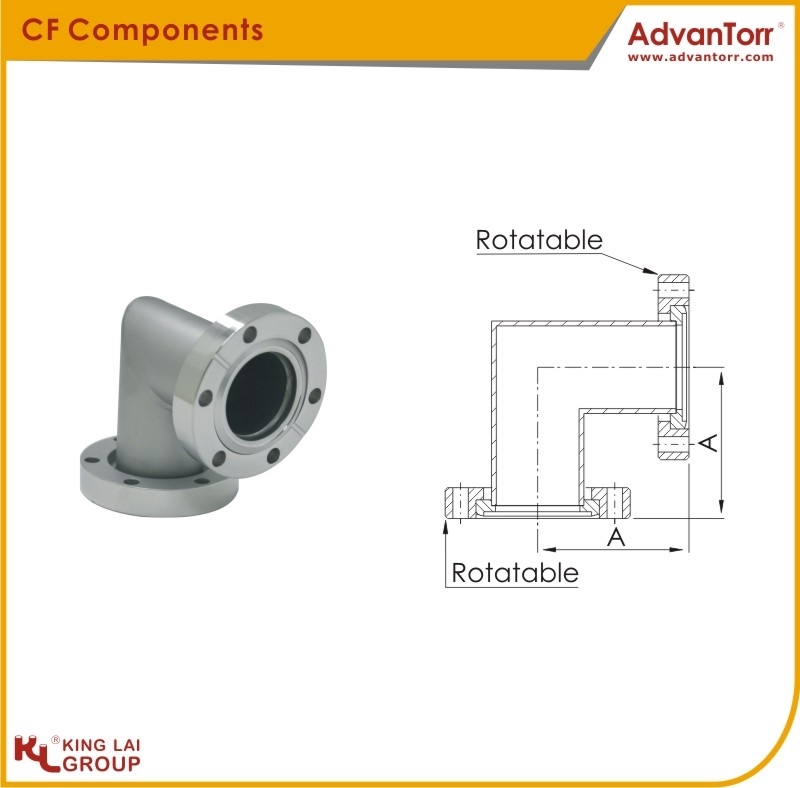

CF-90MEL-133
Bend Type: Mitre
Angle: 90 Deg
Flange Size: CF1.33" (DN16)
A
38.1
CF-90MEL-212
Bend Type: Mitre
Angle: 90 Deg
Flange Size: CF2.12" (DN25)
A
52
CF-90MEL-275
Bend Type: Mitre
Angle: 90 Deg
Flange Size: CF2.75" (DN40)
A
62.5
CF-90MEL-338
Bend Type: Mitre
Angle: 90 Deg
Flange Size: CF3.38" (DN50)
A
81.8
CF-90MEL-450
Bend Type: Mitre
Angle: 90 Deg
Flange Size: CF4.50" (DN63)
A
85.9
CF-90MEL-462
Bend Type: Mitre
Angle: 90 Deg
Flange Size: CF4.62" (DN80)
A
89.7
CF-90MEL-600
Bend Type: Mitre
Angle: 90 Deg
Flange Size: CF6.00" (DN100)
A
109.7
