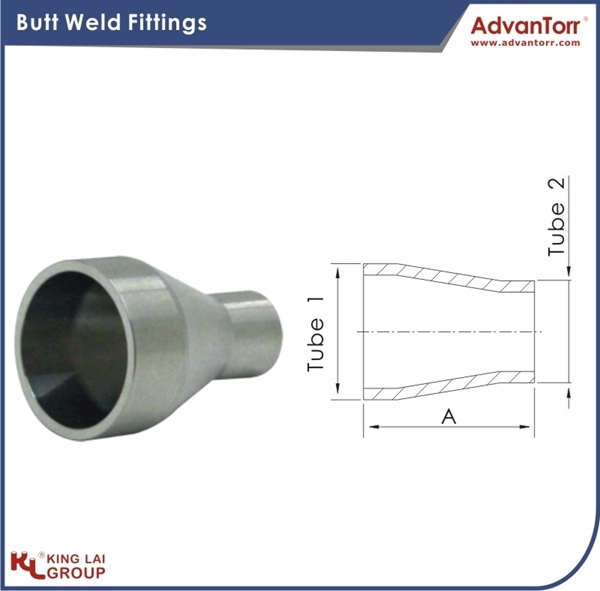

Weld Reducers

料號 尺寸 (Dimension in mm)
BW-CRN-100x050
Main Tube Size: 1"
Reducer Tube Size: ½"
Tube 1 ODxTTube2 OD*TA
1"x1.65mm½"x1.65mm34.9
BW-CRN-100x075
Main Tube Size: 1"
Reducer Tube Size: ¾"
Tube 1 ODxTTube2 OD*TA
1"x1.65mm¾"x1.65mm34.9
BW-CRN-150x050
Main Tube Size: 1½"
Reducer Tube Size: ½"
Tube 1 ODxTTube2 OD*TA
1½"x1.65mm½"x1.65mm60.3
BW-CRN-150x075
Main Tube Size: 1½"
Reducer Tube Size: ¾"
Tube 1 ODxTTube2 OD*TA
1½"x1.65mm¾"x1.65mm60.3
BW-CRN-150x100
Main Tube Size: 1½"
Reducer Tube Size: 1"
Tube 1 ODxTTube2 OD*TA
1½"x1.65mm1"x1.65mm60.3
BW-CRN-200x100
Main Tube Size: 2"
Reducer Tube Size: 1"
Tube 1 ODxTTube2 OD*TA
2"x1.65mm1"x1.65mm60.3
BW-CRN-200x150
Main Tube Size: 2"
Reducer Tube Size: 1½"
Tube 1 ODxTTube2 OD*TA
2"x1.65mm1½"x1.65mm60.3
BW-CRN-250x150
Main Tube Size: 2½"
Reducer Tube Size: 1½"
Tube 1 ODxTTube2 OD*TA
2½"x1.65mm1½"x1.65mm60.3
BW-CRN-250x200
Main Tube Size: 2½"
Reducer Tube Size: 2"
Tube 1 ODxTTube2 OD*TA
2½"x1.65mm2"x1.65mm60.3
BW-CRN-300x150
Main Tube Size: 3"
Reducer Tube Size: 1½"
Tube 1 ODxTTube2 OD*TA
3"x1.65mm1½"x1.65mm92.1
BW-CRN-300x200
Main Tube Size: 3"
Reducer Tube Size: 2"
Tube 1 ODxTTube2 OD*TA
3"x1.65mm2"x1.65mm92.1
BW-CRN-300x250
Main Tube Size: 3"
Reducer Tube Size: 2½"
Tube 1 ODxTTube2 OD*TA
3"x1.65mm2½"x1.65mm92.1
BW-CRN-400x150
Main Tube Size: 4"
Reducer Tube Size: 1½"
Tube 1 ODxTTube2 OD*TA
4"x2.11mm1½"x1.65mm92.1
BW-CRN-400x200
Main Tube Size: 4"
Reducer Tube Size: 2"
Tube 1 ODxTTube2 OD*TA
4"x2.11mm2"x1.65mm92.1
BW-CRN-400x250
Main Tube Size: 4"
Reducer Tube Size: 2½"
Tube 1 ODxTTube2 OD*TA
4"x2.11mm2½"x1.65mm92.1
BW-CRN-400x300
Main Tube Size: 4"
Reducer Tube Size: 3"
Tube 1 ODxTTube2 OD*TA
4"x2.11mm3"x1.65mm92.1
