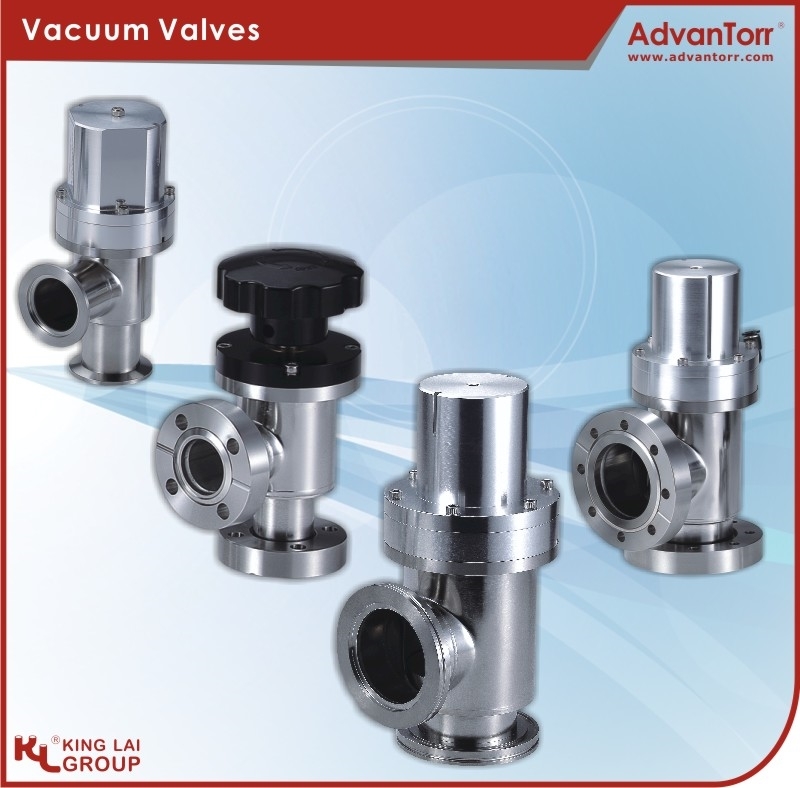

Angle Valves

Actuator
Vacuum Grade
Flange Size
Dim A

料號尺寸 (Dimension in mm)

料號:

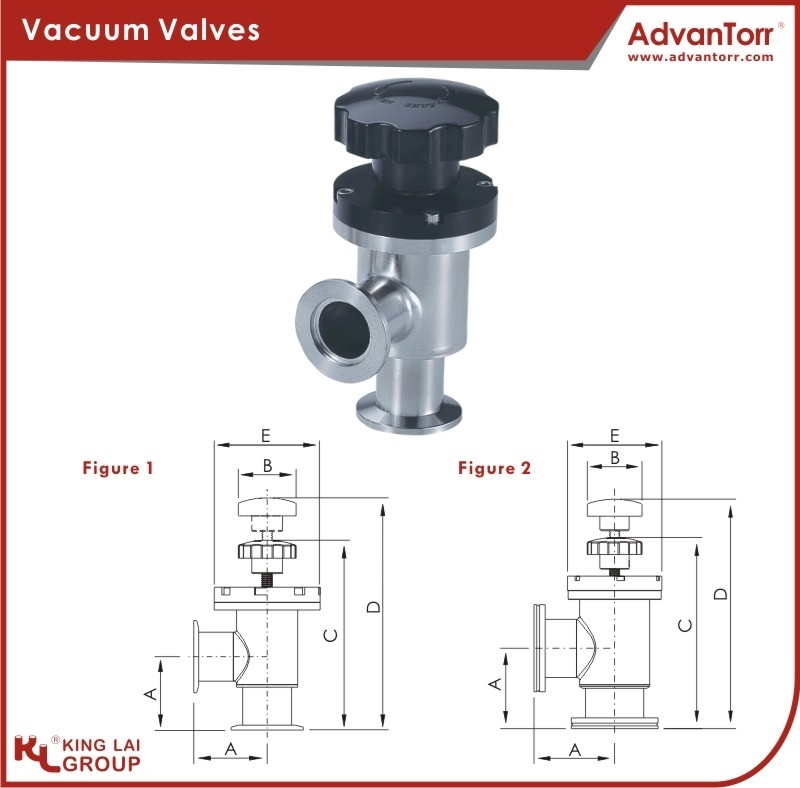

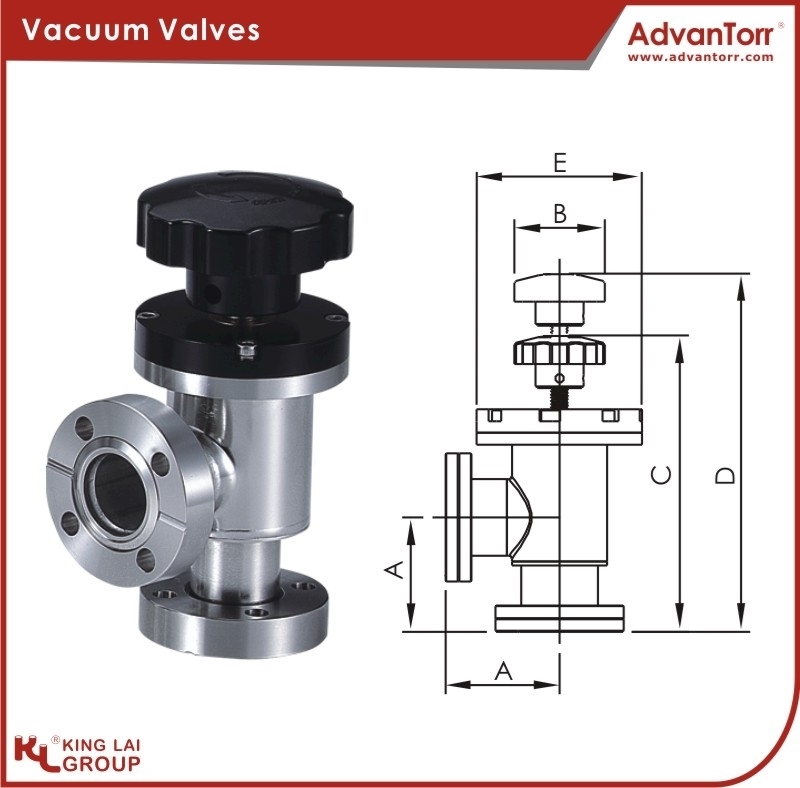

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF1.33" (DN16)
Dim A: 41.00

A	B	C	D	E
41	60	124	148	70

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF1.33" (DN16)
Dim A: 55.00

A	B	C	D	E
55	60	139	163	70

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF2.12" (DN25)
Dim A: 53.00

A	B	C	D	E
53	60	133	157	70

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF2.75" (DN40)
Dim A: 63.00

A	B	C	D	E
63	60	162	186	86

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF2.75" (DN40)
Dim A: 67.00

A	B	C	D	E
67	60	193	217	86

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF3.38" (DN50)
Dim A: 78.00

A	B	C	D	E
78	60	199	240	110

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF4.50" (DN63)
Dim A: 86.00

A	B	C	D	E
86	60	204	246	122

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF1.33" (DN16)
Dim A: 41.00

A	B	C	D	E
41	60	124	148	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF1.33" (DN16)
Dim A: 55.00

A	B	C	D	E
55	60	138	162	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF2.12" (DN25)
Dim A: 50.00

A	B	C	D	E
50	60	131	155	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF2.12" (DN25)
Dim A: 53.00

A	B	C	D	E
53	60	133	157	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF2.75" (DN40)
Dim A: 63.00

A	B	C	D	E
63	60	162	186	77

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF2.75" (DN40)
Dim A: 67.00

A	B	C	D	E
67	60	165	189	77

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF3.38" (DN50)
Dim A: 72.00

A	B	C	D	E
72	60	193	234	85

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF3.38" (DN50)
Dim A: 78.00

A	B	C	D	E
78	60	199	240	85

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF4.50" (DN63)
Dim A: 91.00

A	B	C	D	E
91	60	210	252	102

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: CF4.50" (DN63)
Dim A: 86.00

A	B	C	D	E
86	60	204	246	102

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: KF16
Dim A: 40.00

A	B	C	D	E
40	60	123	147	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: KF16
Dim A: 55.00

A	B	C	D	E
55	60	138	162	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: KF25
Dim A: 50.00

A	B	C	D	E
50	60	130	154	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: KF25
Dim A: 52.00

A	B	C	D	E
52	60	132	156	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: KF40
Dim A: 65.00

A	B	C	D	E
65	60	164	188	77

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: KF50
Dim A: 70.00

A	B	C	D	E
70	60	179	213	85

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: KF50
Dim A: 76.00

A	B	C	D	E
76	60	198	239	85

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: ISO-K 63
Dim A: 88.00

A	B	C	D	E
88	60	209	251	102

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: ISO-K 63
Dim A: 83.00

A	B	C	D	E
83	60	204	246	102

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: ¾"
Dim A: 50.80

A	B	C	D	E
48	60	134	61	158

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: 1"
Dim A: 48.27

A	B	C	D	E
61	60	128	61	153

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: 1½"
Dim A: 61.20

A	B	C	D	E
72	60	160	77	184

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: 2"
Dim A: 72.40

A	B	C	D	E
51	60	194	85	235

料號:

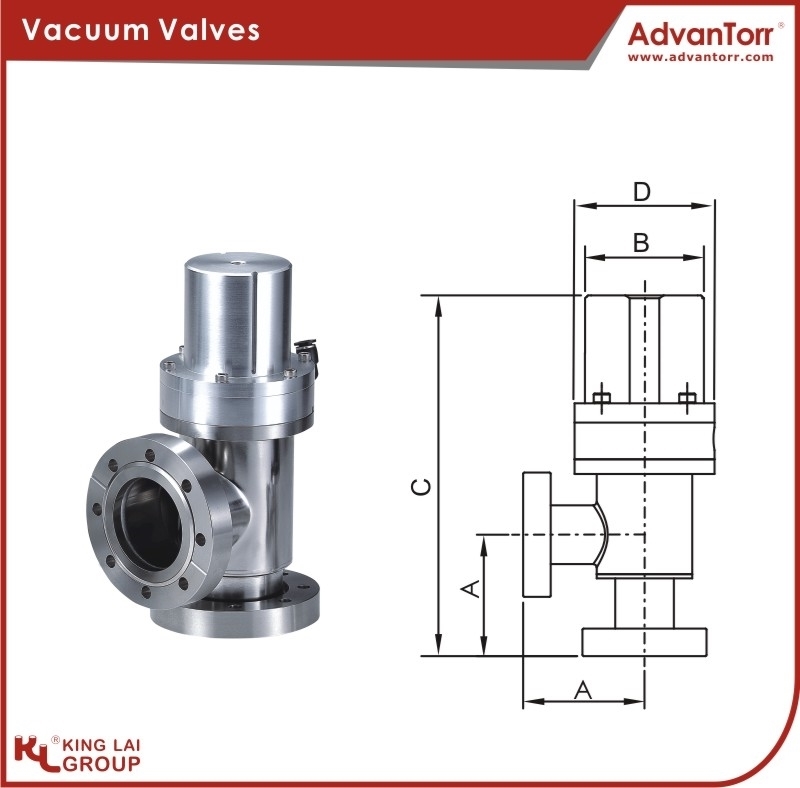

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF1.33" (DN16)
Dim A: 41.00

A	B	C	D	E
41	52	147	70	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF1.33" (DN16)
Dim A: 55.00

A	B	C	D	E
55	52	162	70	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF2.75" (DN40)
Dim A: 63.00

A	B	C	D	E
63	65	174	86	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF2.75" (DN40)
Dim A: 67.00

A	B	C	D	E
67	65	178	86	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF4.50" (DN63)
Dim A: 91.00

A	B	C	D	E
91	70	251	122	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF4.50" (DN63)
Dim A: 86.00

A	B	C	D	E
86	70	246	122	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF6.00" (DN100)
Dim A: 113.00

A	B	C	D	E
113	89	342	171	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF6.00" (DN100)
Dim A: 118.00

A	B	C	D	E
118	89	348	171	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF1.33" (DN16)
Dim A: 41.00

A	B	C	D	E
41	52	147	61	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF1.33" (DN16)
Dim A: 55.00

A	B	C	D	E
55	52	162	61	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF2.12" (DN25)
Dim A: 50.00

A	B	C	D	E
50	52	154	61	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF2.12" (DN25)
Dim A: 53.00

A	B	C	D	E
53	52	156	61	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF2.75" (DN40)
Dim A: 63.00

A	B	C	D	E
63	65	174	77	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF2.75" (DN40)
Dim A: 67.00

A	B	C	D	E
67	65	178	77	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF3.38" (DN50)
Dim A: 72.00

A	B	C	D	E
72	67	234	85	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF3.38" (DN50)
Dim A: 78.00

A	B	C	D	E
78	67	240	85	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF4.50" (DN63)
Dim A: 91.00

A	B	C	D	E
91	70	251	102	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF4.50" (DN63)
Dim A: 86.00

A	B	C	D	E
86	70	246	102	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF6.00" (DN100)
Dim A: 113.00

A	B	C	D	E
113	89	342	165	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF6.00" (DN100)
Dim A: 118.00

A	B	C	D	E
118	89	348	165	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF8.00" (DN160)
Dim A: 144.00

A	B	C	D	E
144	140	449	227	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF8.00" (DN160)
Dim A: 165.00

A	B	C	D	E
165	140	469	227	-

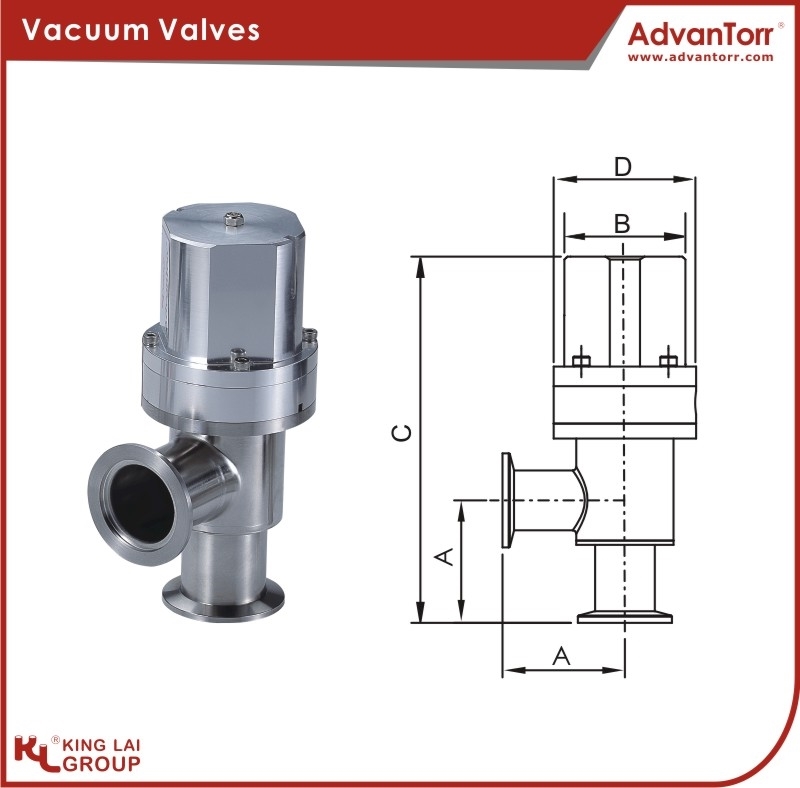

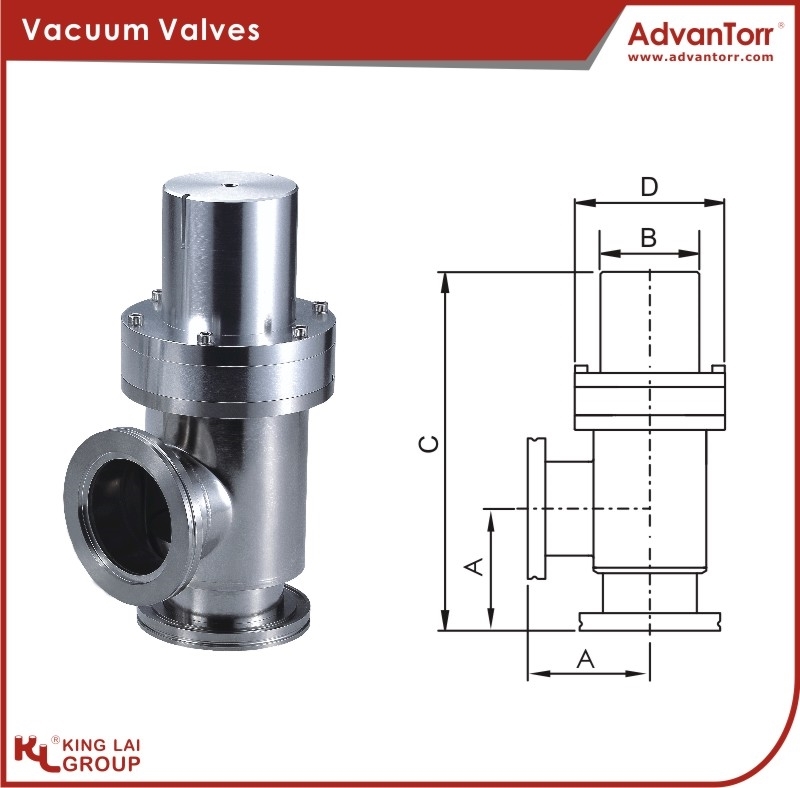

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF16
Dim A: 40.00

A	B	C	D	E
40	52	147	61	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF16
Dim A: 55.00

A	B	C	D	E
55	52	161	61	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF25
Dim A: 50.00

A	B	C	D	E
50	52	154	61	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF25
Dim A: 52.00

A	B	C	D	E
52	52	156	61	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF40
Dim A: 65.00

A	B	C	D	E
65	65	176	77	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF50
Dim A: 70.00

A	B	C	D	E
70	67	232	85	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF50
Dim A: 76.00

A	B	C	D	E
76	67	238	85	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 63
Dim A: 88.00

A	B	C	D	E
88	70	70	102	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 63
Dim A: 83.00

A	B	C	D	E
83	70	70	102	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 80
Dim A: 90.00

A	B	C	D	E
90	82	82	132	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 80
Dim A: 89.00

A	B	C	D	E
89	82	82	132	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 100
Dim A: 108.00

A	B	C	D	E
108	89	89	165	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 100
Dim A: 114.00

A	B	C	D	E
114	89	89	165	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 160
Dim A: 138.00

A	B	C	D	E
138	140	140	227	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 160
Dim A: 159.00

A	B	C	D	E
159	140	140	227	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 200
Dim A: 178.00

A	B	C	D	E
178	140	140	285	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 200
Dim A: 210.00

A	B	C	D	E
210	140	140	285	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 250
Dim A: 208.00

A	B	C	D	E
208	202	202	353	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 250
Dim A: 260.00

A	B	C	D	E
260	202	202	353	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ¾"
Dim A: 51.00

A	B	C	D	E
51	61	156	156	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 1"
Dim A: 48.00

A	B	C	D	E
48	61	152	152	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 1½"
Dim A: 61.00

A	B	C	D	E
61	77	173	173	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 2"
Dim A: 72.00

A	B	C	D	E
72	85	243	243	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 2.5"
Dim A: 76.00

A	B	C	D	E
76	102	236	236	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 3"
Dim A: 83.00

A	B	C	D	E
83	132	277	277	-

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 4"
Dim A: 107.24

A	B	C	D
112	151	332	165

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 6"
Dim A: 152.35

A	B	C	D
126	228	478	227

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 8"
Dim A: 203.20

A	B	C	D
162	249	578	285

料號:

Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 10"
Dim A: 254.00

A	B	C	D
201	311	636	353

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF3.38" (DN50)
Dim A: 76.00

A	B	C	D	E
76	60	197	238	110

料號:

Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF4.50" (DN63)
Dim A: 91.00

A	B	C	D	E
91	60	210	252	122

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: ¾"
Dim A: 51.00

A	B	C	D	E
51	60	134	158	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: 1"
Dim A: 48.00

A	B	C	D	E
48	60	128	153	61

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: 1½"
Dim A: 61.00

A	B	C	D	E
61	60	160	184	77

料號:

Actuator: Manual
Vacuum Grade: HV
Flange Size: 2"
Dim A: 72.00

A	B	C	D	E
72	60	194	235	85

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF2.12" (DN25)
Dim A: 53.00

A	B	C	D	E
53	52	156	70	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF3.38" (DN50)
Dim A: 72.00

A	B	C	D	E
72	67	234	110	-

料號:

Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF3.38" (DN50)
Dim A: 78.00

A	B	C	D	E
78	67	240	110	-

料號:

A	B	C	D	E
112	151	332	332	-

料號:

A	B	C	D	E
126	228	478	478	-

料號:

A	B	C	D	E
162	249	578	578	-

料號:

A	B	C	D	E
201	311	636	636	-
