CF Crosses

料號 尺寸 (Dimension in mm)

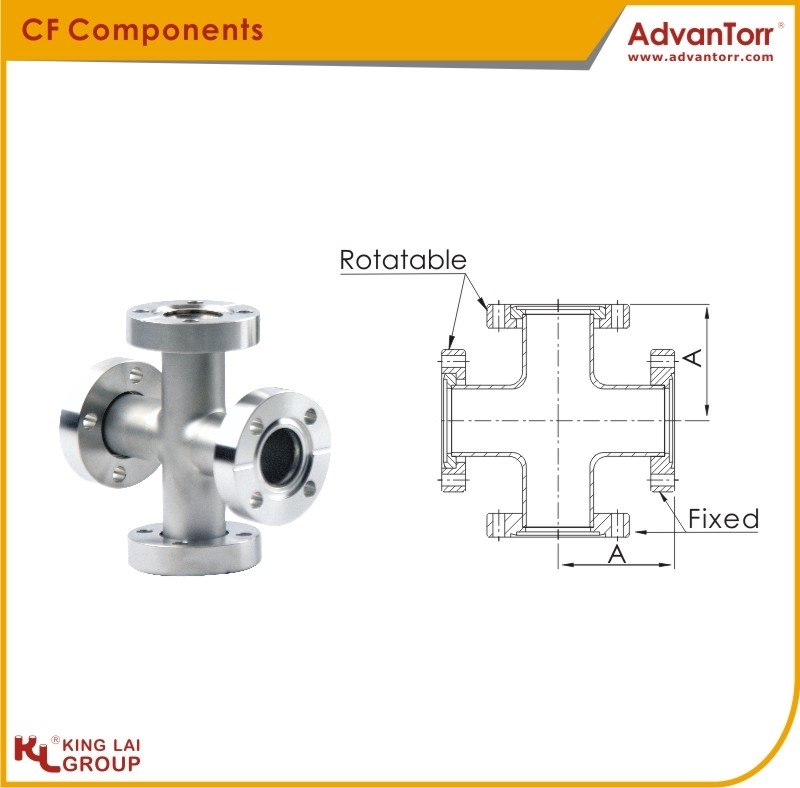

CF-4C-133
Type: Equal
Main Flange Size: CF1.33" (DN16)
Reducer Flange Size: n/a
A
38.1
CF-4C-212
Type: Equal
Main Flange Size: CF2.12" (DN25)
Reducer Flange Size: n/a
A
52
CF-4C-275
Type: Equal
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: n/a
A
62.5
CF-4C-338
Type: Equal
Main Flange Size: CF3.38" (DN50)
Reducer Flange Size: n/a
A
81.8
CF-4C-450
Type: Equal
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: n/a
A
85.9
CF-4C-462
Type: Equal
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: n/a
A
89.7
CF-4C-600
Type: Equal
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: n/a
A
109.7

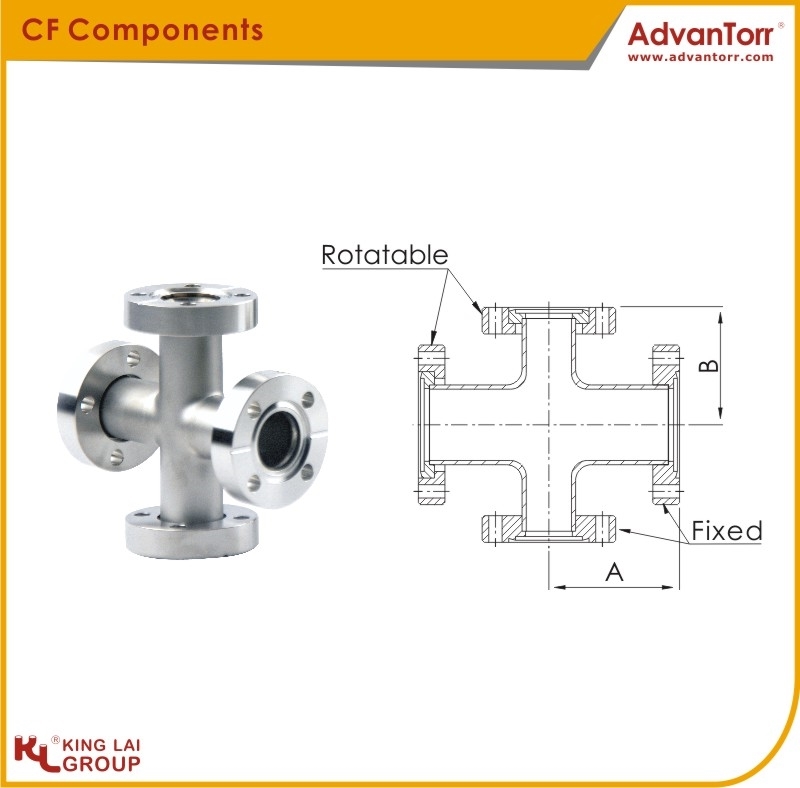

CF-4RC-275x133
Type: Reducing
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: CF1.33" (DN16)
AB
62.547.5
CF-4RC-275x212
Type: Reducing
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: CF2.12" (DN25)
AB
62.558.2
CF-4RC-338x133
Type: Reducing
Main Flange Size: CF3.38" (DN50)
Reducer Flange Size: CF1.33" (DN16)
AB
81.854.1
CF-4RC-338x275
Type: Reducing
Main Flange Size: CF3.38" (DN50)
Reducer Flange Size: CF2.75" (DN40)
AB
81.868.8
CF-4RC-450x275
Type: Reducing
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: CF2.75" (DN40)
AB
85.975.2
CF-4RC-450x338
Type: Reducing
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: CF3.38" (DN50)
AB
85.988.4
CF-4RC-462x338
Type: Reducing
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: CF3.38" (DN50)
AB
89.794.7
CF-4RC-462x450
Type: Reducing
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: CF4.50" (DN63)
AB
89.792.2
CF-4RC-600x275
Type: Reducing
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF2.75" (DN40)
AB
109.794.2
CF-4RC-600x338
Type: Reducing
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF3.38" (DN50)
AB
109.7107.4
CF-4RC-600x450
Type: Reducing
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF4.50" (DN63)
AB
109.7104.9
CF-4RC-600x462
Type: Reducing
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF4.62" (DN80)
AB
109.7104.9
