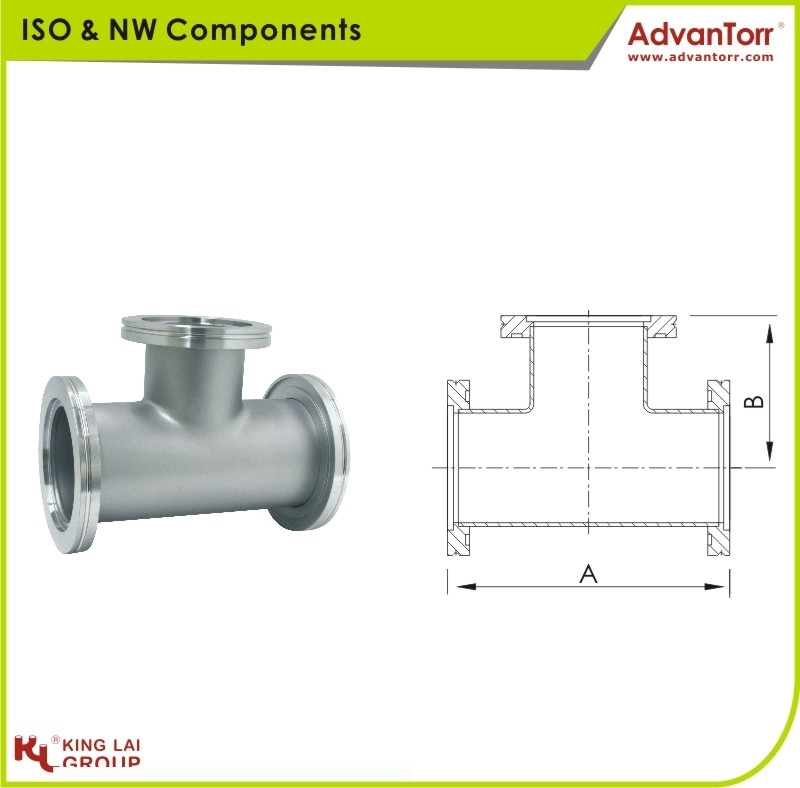

ISO Tees

料號 尺寸 (Dimension in mm)
ISOK-ET-63
Type: Equal
Main Flange Size: ISO-K 63
Reducer Flange Size: n/a
Length: 165.00
AB
16582.5
ISOK-ET-63-1
Type: Equal
Main Flange Size: ISO-K 63
Reducer Flange Size: n/a
Length: 176.00
AB
17688
ISOK-ET-80
Type: Equal
Main Flange Size: ISO-K 80
Reducer Flange Size: n/a
Length: 177.80
AB
177.888.9
ISOK-ET-80-1
Type: Equal
Main Flange Size: ISO-K 80
Reducer Flange Size: n/a
Length: 196.00
AB
19698
ISOK-ET-100
Type: Equal
Main Flange Size: ISO-K 100
Reducer Flange Size: n/a
Length: 209.40
AB
209.4104.7
ISOK-ET-100-1
Type: Equal
Main Flange Size: ISO-K 100
Reducer Flange Size: n/a
Length: 216.00
AB
216108
ISOK-ET-160
Type: Equal
Main Flange Size: ISO-K 160
Reducer Flange Size: n/a
Length: 266.60
AB
266.6133.3

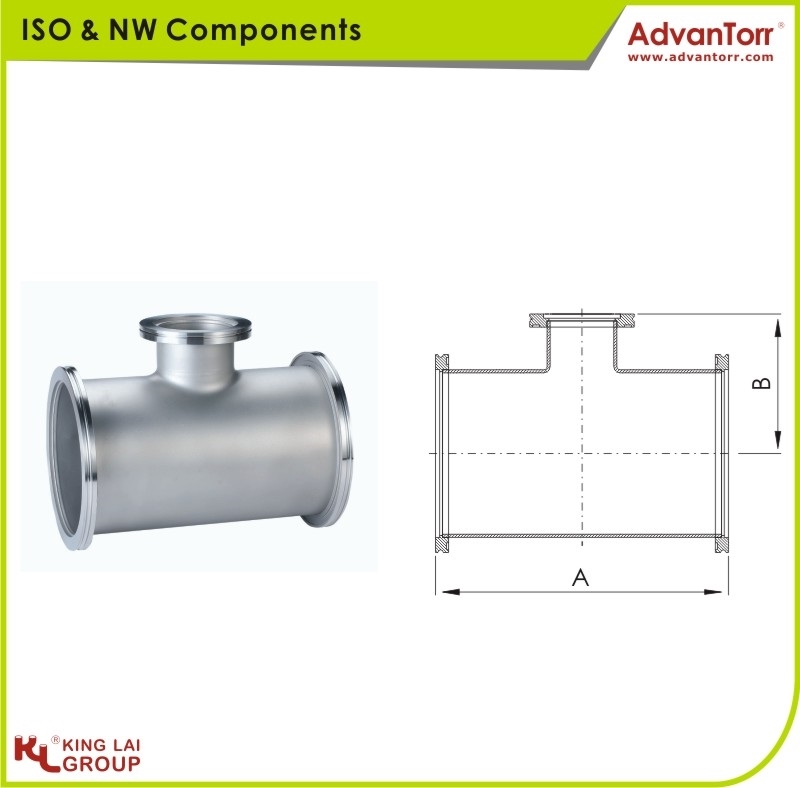

ISOK-RT-80x63
Type: Reducing
Main Flange Size: ISO-K 80
Reducer Flange Size: ISO-K 63
Length: 177.70
AB
177.788.9
ISOK-RT-100x63
Type: Reducing
Main Flange Size: ISO-K 100
Reducer Flange Size: ISO-K 63
Length: 209.70
AB
209.7101.6
ISOK-RT-100x80
Type: Reducing
Main Flange Size: ISO-K 100
Reducer Flange Size: ISO-K 80
Length: 209.70
AB
209.7101.6
ISOK-RT-160x63
Type: Reducing
Main Flange Size: ISO-K 160
Reducer Flange Size: ISO-K 63
Length: 266.60
AB
266.6126.9
ISOK-RT-160x80
Type: Reducing
Main Flange Size: ISO-K 160
Reducer Flange Size: ISO-K 80
Length: 266.60
AB
266.6126.9
ISOK-RT-160x100
Type: Reducing
Main Flange Size: ISO-K 160
Reducer Flange Size: ISO-K 100
Length: 266.60
AB
266.6130.3
