CF Reducers

Type
Main Flange Size
Reducer Flange Size

料號尺寸 (Dimension in mm)

料號: CF-CRN-212x133

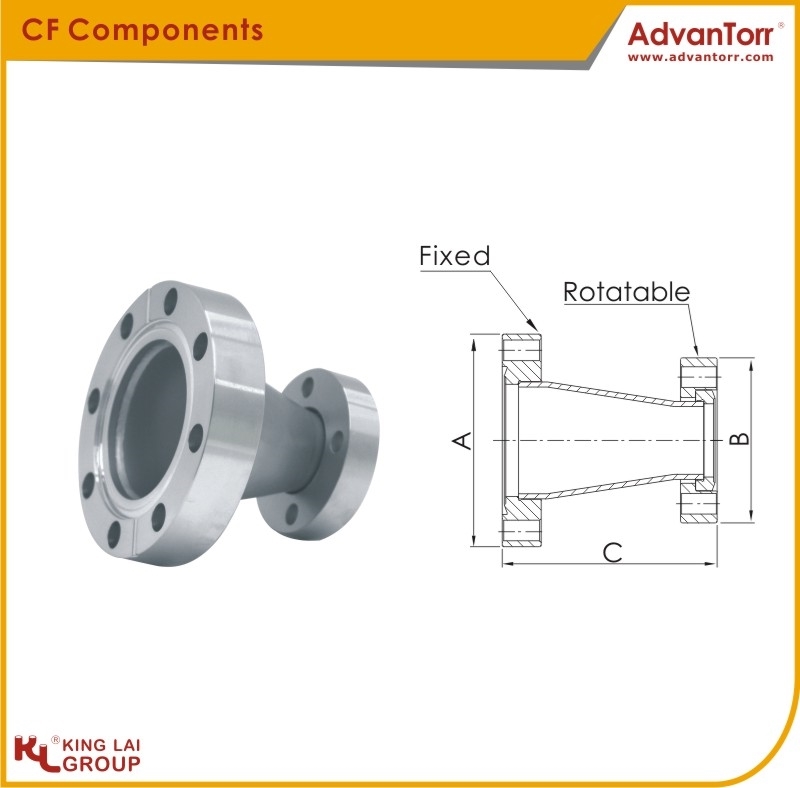

Type: Conical
Main Flange Size: CF2.12" (DN25)
Reducer Flange Size: CF1.33" (DN16)

A	B	C
2.12"	1.33"	51.9

料號: CF-CRN-275x133

Type: Conical
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: CF1.33" (DN16)

A	B	C
2.75"	1.33"	78.3

料號: CF-CRN-275x212

Type: Conical
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: CF2.12" (DN25)

A	B	C
2.75"	2.12"	69.9

料號: CF-CRN-338x212

Type: Conical
Main Flange Size: CF3.38" (DN50)
Reducer Flange Size: CF2.12" (DN25)

A	B	C
3.38"	2.12"	70.3

料號: CF-CRN-338x275

Type: Conical
Main Flange Size: CF3.38" (DN50)
Reducer Flange Size: CF2.75" (DN40)

A	B	C
3.38"	2.75"	71.3

料號: CF-CRN-450x275

Type: Conical
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: CF2.75" (DN40)

A	B	C
4.50"	2.75"	75.2

料號: CF-CRN-450x338

Type: Conical
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: CF3.38" (DN50)

A	B	C
4.50"	3.38"	75.6

料號: CF-CRN-462x275

Type: Conical
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: CF2.75" (DN40)

A	B	C
4.62"	2.75"	104.5

料號: CF-CRN-462x338

Type: Conical
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: CF3.38" (DN50)

A	B	C
4.62"	3.38"	104.9

料號: CF-CRN-462x450

Type: Conical
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: CF4.50" (DN63)

A	B	C
4.62"	4.50"	108.7

料號: CF-CRN-600x338

Type: Conical
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF3.38" (DN50)

A	B	C
6.00"	3.38"	108.9

料號: CF-CRN-600x450

Type: Conical
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF4.50" (DN63)

A	B	C
6.00"	4.50"	112.7

料號: CF-CRN-600x462

Type: Conical
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF4.62" (DN80)

A	B	C
6.00"	4.62"	110.3

料號: CF-SRN-275x133

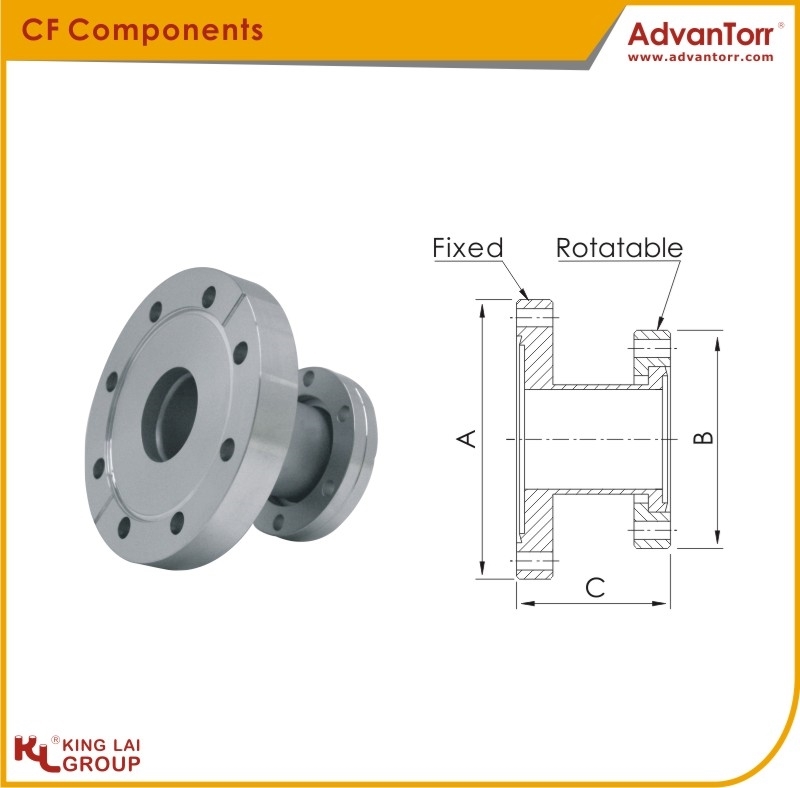

Type: Straight
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: CF1.33" (DN16)

A	B	C
2.75"	1.33"	45

料號: CF-SRN-450x133

Type: Straight
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: CF1.33" (DN16)

A	B	C
4.50"	1.33"	70

料號: CF-SRN-450x275

Type: Straight
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: CF2.75" (DN40)

A	B	C
4.50"	2.75"	75

料號: CF-SRN-600x275

Type: Straight
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF2.75" (DN40)

A	B	C
6.00"	2.75"	127

料號: CF-SRN-600x450

Type: Straight
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF4.50" (DN63)

A	B	C
6.00"	4.50"	95

料號: CF-SRN-800x275

Type: Straight
Main Flange Size: CF8.00" (DN160)
Reducer Flange Size: CF2.75" (DN40)

A	B	C
8.00"	2.75"	127

料號: CF-SRN-800x450

Type: Straight
Main Flange Size: CF8.00" (DN160)
Reducer Flange Size: CF4.50" (DN63)

A	B	C
8.00"	4.50"	127

料號: CF-SRN-800x600

Type: Straight
Main Flange Size: CF8.00" (DN160)
Reducer Flange Size: CF6.00" (DN100)

A	B	C
8.00"	6.00"	127

料號: CF-SRN-1000x275

Type: Straight
Main Flange Size: CF10.00" (DN200)
Reducer Flange Size: CF2.75" (DN40)

A	B	C
10.00"	2.75"	127

料號: CF-SRN-1000x450

Type: Straight
Main Flange Size: CF10.00" (DN200)
Reducer Flange Size: CF4.50" (DN63)

A	B	C
10.00"	4.50"	127

料號: CF-SRN-1000x600

Type: Straight
Main Flange Size: CF10.00" (DN200)
Reducer Flange Size: CF6.00" (DN100)

A	B	C
10.00"	6.00"	127

料號: CF-SRN-1000x800

Type: Straight
Main Flange Size: CF10.00" (DN200)
Reducer Flange Size: CF8.00" (DN160)

A	B	C
10.00"	8.00"	127
