Standard Flanges

aaaa

Flange Type
Type
Flange Size
Bolt Hole Type
Bore

bbbbb

料號尺寸 (Dimension in mm)

料號:

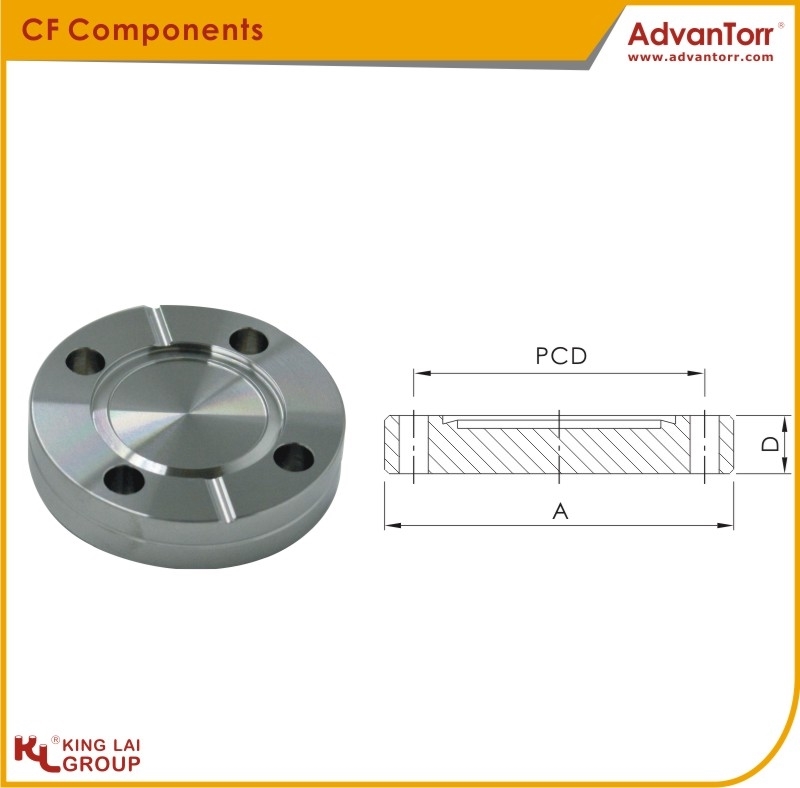

Flange Type: Blank
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	7.6	26.97	6	4.37

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	7.6	26.97	6	8-32

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	7.6	26.97	6	M4

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	11.9	41.28	4	6.73

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	11.9	41.28	4	1/4-28

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	11.9	41.28	4	M6

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	12.7	58.72	6	6.73

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	12.7	58.72	6	1/4-28

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	12.7	58.72	6	M6

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	16	72.39	8	8.43

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	16	72.39	8	5/16-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	16	72.39	8	M8

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	17.3	92.15	8	8.43

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	17.3	92.15	8	5/16-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	17.3	92.15	8	M8

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	19.1	102.36	10	8.43

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	19.1	102.36	10	5/16-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	19.1	102.36	10	M8

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	19.8	130.25	16	8.43

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	19.8	130.25	16	5/16-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	19.8	130.25	16	M8

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	21.3	151.61	18	8.43

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	21.3	151.61	18	5/16-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	21.3	151.61	18	M8

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	22.35	181.05	20	8.43

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	22.35	181.05	20	5/16-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	22.35	181.05	20	M8

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	24.6	231.85	24	8.43

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	24.6	231.85	24	5/16-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	24.6	231.85	24	M8

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.4	25.9	283.97	32	8.43

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.4	25.9	283.97	32	5/16-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.4	25.9	283.97	32	M8

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	28.45	306.32	30	10.49

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	28.45	306.32	30	3/8-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	28.45	306.32	30	M10

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	28.45	325.37	30	10.49

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	28.45	325.37	30	3/8-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	28.45	325.37	30	M10

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	28.45	388.87	36	10.49

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	28.45	388.87	36	3/8-24

料號:

Flange Type: Blank
Type: Fixed
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	28.45	388.87	36	M10

料號:

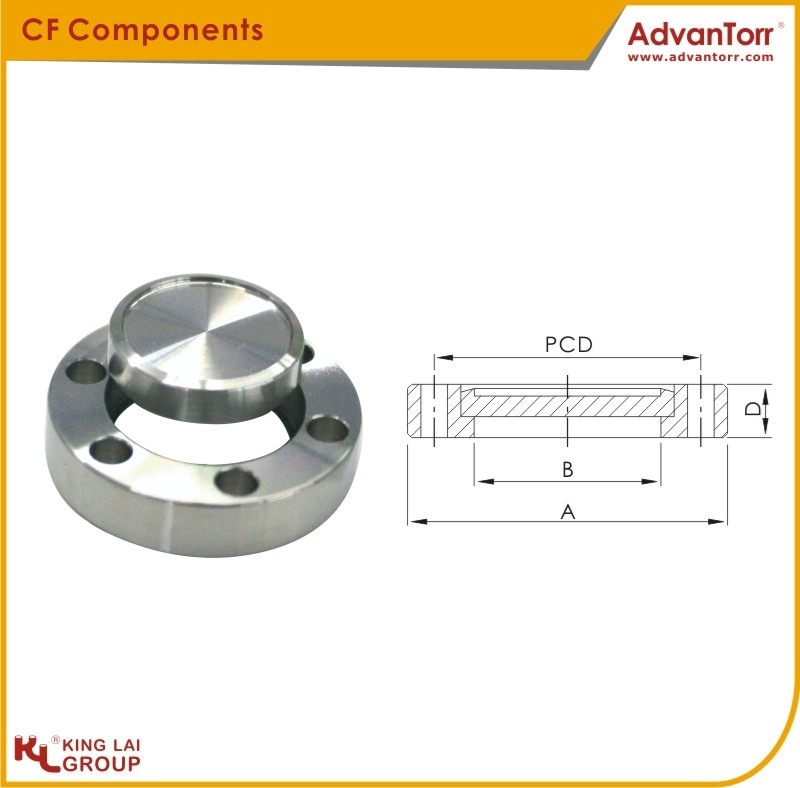

Flange Type: Blank
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	19.41	7.6	26.97	6	4.37

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	19.41	7.6	26.97	6	8-32

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	19.41	7.6	26.97	6	M4

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	27.94	11.9	41.28	4	6.73

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	27.94	11.9	41.28	4	1/4-28

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	27.94	11.9	41.28	4	M6

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	48.31	12.7	58.72	6	6.73

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	48.31	12.7	58.72	6	1/4-28

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	48.31	12.7	58.72	6	M6

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	54.5	17.4	72.39	8	8.43

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	54.5	17.4	72.39	8	5/16-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	54.5	17.4	72.39	8	M8

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	72.39	19.1	92.15	8	8.43

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	72.39	19.1	92.15	8	5/16-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	72.39	19.1	92.15	8	M8

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	79.71	20.6	102.36	10	8.43

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	79.71	20.6	102.36	10	5/16-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	79.71	20.6	102.36	10	M8

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	106.17	21.3	130.25	16	8.43

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	106.17	21.3	130.25	16	5/16-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	106.17	21.3	130.25	16	M8

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	129.5	21.3	151.61	18	8.43

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	129.5	21.3	151.61	18	5/16-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	129.5	21.3	151.61	18	M8

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	155.7	23.9	181.05	20	8.43

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	155.7	23.9	181.05	20	5/16-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	155.7	23.9	181.05	20	M8

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	208.28	24.6	231.85	24	8.43

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	208.28	24.6	231.85	24	5/16-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	208.28	24.6	231.85	24	M8

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	256.03	25.9	283.97	32	8.43

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	256.03	25.9	283.97	32	5/16-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	256.03	25.9	283.97	32	M8

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	276.3	28.45	306.32	30	10.49

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	276.3	28.45	306.32	30	3/8-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	276.3	28.45	306.32	30	M10

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	305.82	28.45	325.37	30	10.49

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	305.82	28.45	325.37	30	3/8-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	305.82	28.45	325.37	30	M10

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Thru holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	359.61	28.45	388.87	36	10.49

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Inch tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	359.61	28.45	388.87	36	3/8-24

料號:

Flange Type: Blank
Type: Rotatable
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Metric tapped holes
Bore: Blank

A (mm)	B (mm)	D (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	359.61	28.45	388.87	36	M10

料號:

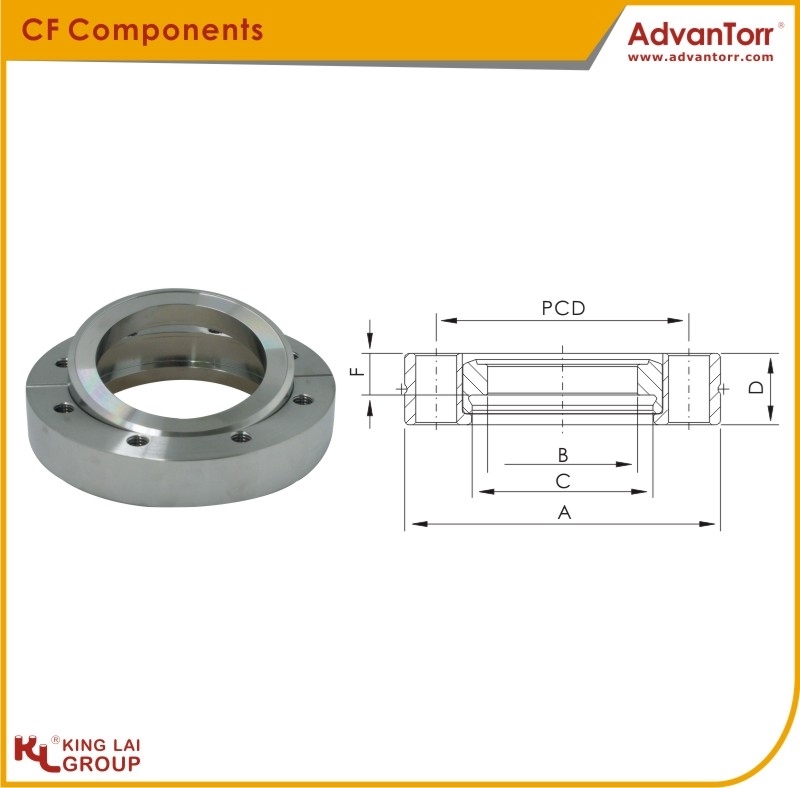

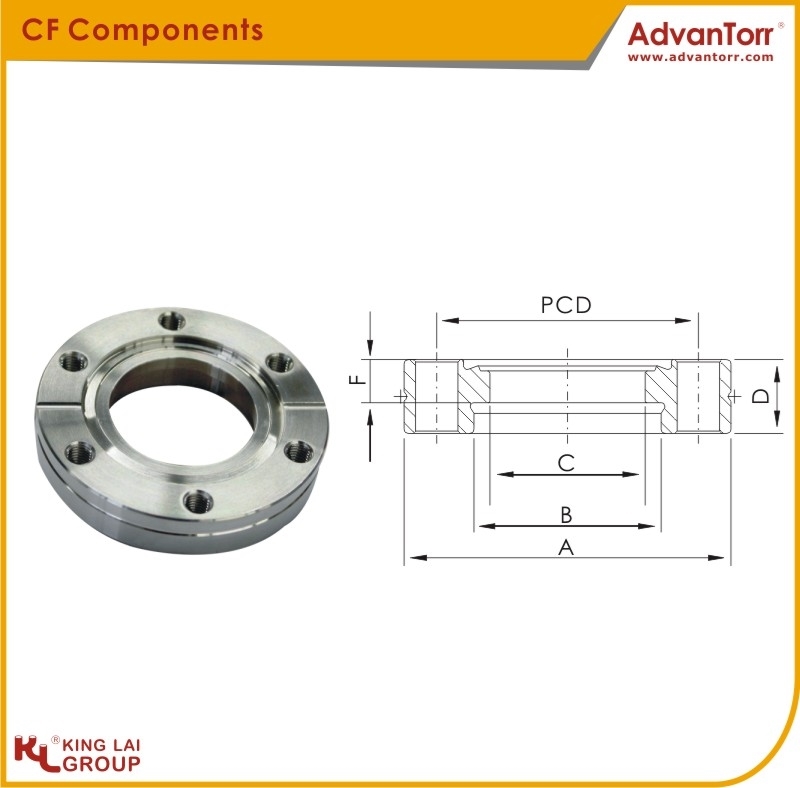

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Thru holes
Bore: 9.65

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	9.65	-	7.6	-	26.97	6	4.37

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes
Bore: 9.65

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	9.65	-	7.6	-	26.97	6	8-32

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Metric tapped holes
Bore: 9.65

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	9.65	-	7.6	-	26.97	6	M4

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Thru holes
Bore: 12.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	12.83	-	7.6	-	26.97	6	4.37

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes
Bore: 12.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	12.83	-	7.6	-	26.97	6	8-32

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Metric tapped holes
Bore: 12.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	12.83	-	7.6	-	26.97	6	M4

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Thru holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	19.3	16	7.6	4.45	26.97	6	4.37

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	19.3	16	7.6	4.45	26.97	6	8-32

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Metric tapped holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	19.3	16	7.6	4.45	26.97	6	M4

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Thru holes
Bore: 23.90

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	25.65	23.9	11.9	4.32	41.28	4	6.73

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Inch tapped holes
Bore: 23.90

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	25.65	23.9	11.9	4.32	41.28	4	1/4-28

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Metric tapped holes
Bore: 23.90

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	25.65	23.9	11.9	4.32	41.28	4	M6

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Thru holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	19.3	16	12.7	5.31	58.72	6	6.73

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	19.3	16	12.7	5.31	58.72	6	1/4-28

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	19.3	16	12.7	5.31	58.72	6	M6

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Thru holes
Bore: 22.10

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	25.65	22.1	12.7	5.31	58.72	6	6.73

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Bore: 22.10

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	25.65	22.1	12.7	5.31	58.72	6	1/4-28

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Bore: 22.10

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	25.65	22.1	12.7	5.31	58.72	6	M6

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Thru holes
Bore: 36.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	38.35	36.6	12.7	5.31	58.72	6	6.73

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Bore: 36.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	38.35	36.6	12.7	5.31	58.72	6	1/4-28

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Bore: 36.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	38.35	36.6	12.7	5.31	58.72	6	M6

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Thru holes
Bore: 41.20

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	44.7	41.2	12.7	5.31	58.72	6	6.73

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Bore: 41.20

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	44.7	41.2	12.7	5.31	58.72	6	1/4-28

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Bore: 41.20

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	44.7	41.2	12.7	5.31	58.72	6	M6

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Thru holes
Bore: 49.30

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	51.05	49.3	17.4	5.72	72.39	8	8.43

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Inch tapped holes
Bore: 49.30

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	51.05	49.3	17.4	5.72	72.39	8	5/16-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Metric tapped holes
Bore: 49.30

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	51.05	49.3	17.4	5.72	72.39	8	M8

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Thru holes
Bore: 62.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	63.75	62	17.4	9.53	92.15	8	8.43

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Inch tapped holes
Bore: 62.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	63.75	62	17.4	9.53	92.15	8	5/16-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Metric tapped holes
Bore: 62.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	63.75	62	17.4	9.53	92.15	8	M8

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Thru holes
Bore: 74.70

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	76.45	74.7	20.6	9.6	102.36	10	8.43

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Inch tapped holes
Bore: 74.70

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	76.45	74.7	20.6	9.6	102.36	10	5/16-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Metric tapped holes
Bore: 74.70

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	76.45	74.7	20.6	9.6	102.36	10	M8

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Thru holes
Bore: 99.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	101.85	99.6	19.8	11.1	130.25	16	8.43

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Inch tapped holes
Bore: 99.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	101.85	99.6	19.8	11.1	130.25	16	5/16-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Metric tapped holes
Bore: 99.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	101.85	99.6	19.8	11.1	130.25	16	M8

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Thru holes
Bore: 123.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	127.25	123.83	21.34	11.68	151.61	18	8.43

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Inch tapped holes
Bore: 123.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	127.25	123.83	21.34	11.68	151.61	18	5/16-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Metric tapped holes
Bore: 123.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	127.25	123.83	21.34	11.68	151.61	18	M8

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Thru holes
Bore: 150.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	152.91	150.4	22.35	12.7	181.05	20	8.43

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Inch tapped holes
Bore: 150.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	152.91	150.4	22.35	12.7	181.05	20	5/16-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Metric tapped holes
Bore: 150.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	152.91	150.4	22.35	12.7	181.05	20	M8

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Thru holes
Bore: 200.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	203.71	200.4	24.64	12.7	231.85	24	8.43

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Inch tapped holes
Bore: 200.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	203.71	200.4	24.64	12.7	231.85	24	5/16-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Metric tapped holes
Bore: 200.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	203.71	200.4	24.64	12.7	231.85	24	M8

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Thru holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	254.51	250.95	25.9	12.7	283.97	32	8.43

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Inch tapped holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	254.51	250.95	25.9	12.7	283.97	32	5/16-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Metric tapped holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	254.51	250.95	25.9	12.7	283.97	32	M8

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Thru holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	254.51	250.95	28.45	12.7	306.32	30	10.49

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Inch tapped holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	254.51	250.95	28.45	12.7	306.32	30	3/8-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Metric tapped holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	254.51	250.95	28.45	12.7	306.32	30	M10

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Thru holes
Bore: 301.75

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	305.31	301.75	28.45	12.7	325.37	30	10.49

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Inch tapped holes
Bore: 301.75

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	305.31	301.75	28.45	12.7	325.37	30	3/8-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Metric tapped holes
Bore: 301.75

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	305.31	301.75	28.45	12.7	325.37	30	M10

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Thru holes
Bore: 352.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	356.11	352	28.45	12.7	388.87	36	10.49

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Inch tapped holes
Bore: 352.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	356.11	352	28.45	12.7	388.87	36	3/8-24

料號:

Flange Type: Bored
Type: Fixed
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Metric tapped holes
Bore: 352.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	356.11	352	28.45	12.7	388.87	36	M10

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Thru holes
Bore: 12.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	12.83	12.83	7.6	-	26.97	6	4.37

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes
Bore: 12.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	12.83	12.83	7.6	-	26.97	6	8-32

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Metric tapped holes
Bore: 12.83

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	12.83	12.83	7.6	-	26.97	6	M4

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Thru holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	16	19.3	7.6	4.44	26.97	6	4.37

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Inch tapped holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	16	19.3	7.6	4.44	26.97	6	8-32

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF1.33" (DN16)
Bolt Hole Type: Metric tapped holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
33.7	16	19.3	7.6	4.44	26.97	6	M4

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Thru holes
Bore: 23.90

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	23.9	25.91	11.9	4.32	41.28	4	6.73

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Inch tapped holes
Bore: 23.90

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	23.9	25.91	11.9	4.32	41.28	4	1/4-28

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.12" (DN25)
Bolt Hole Type: Metric tapped holes
Bore: 23.90

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
53.8	23.9	25.91	11.9	4.32	41.28	4	M6

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Thru holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	16	19.3	12.7	5.31	58.72	6	6.73

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	16	19.3	12.7	5.31	58.72	6	1/4-28

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Bore: 16.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	16	19.3	12.7	5.31	58.72	6	M6

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Thru holes
Bore: 36.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	36.6	38.61	12.7	5.31	58.72	6	6.73

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Inch tapped holes
Bore: 36.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	36.6	38.61	12.7	5.31	58.72	6	1/4-28

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF2.75" (DN40)
Bolt Hole Type: Metric tapped holes
Bore: 36.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
69.3	36.6	38.61	12.7	5.31	58.72	6	M6

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Thru holes
Bore: 49.30

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	49.3	51.31	17.4	5.71	72.39	8	8.43

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Inch tapped holes
Bore: 49.30

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	49.3	51.31	17.4	5.71	72.39	8	5/16-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF3.38" (DN50)
Bolt Hole Type: Metric tapped holes
Bore: 49.30

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
85.3	49.3	51.31	17.4	5.71	72.39	8	M8

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Thru holes
Bore: 62.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	62	64.01	19.1	9.52	92.15	8	8.43

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Inch tapped holes
Bore: 62.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	62	64.01	19.1	9.52	92.15	8	5/16-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF4.50" (DN63)
Bolt Hole Type: Metric tapped holes
Bore: 62.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
113.5	62	64.01	19.1	9.52	92.15	8	M8

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Thru holes
Bore: 74.70

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	74.7	76.71	20.6	9.52	102.36	10	8.43

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Inch tapped holes
Bore: 74.70

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	74.7	76.71	20.6	9.52	102.36	10	5/16-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF4.62" (DN80)
Bolt Hole Type: Metric tapped holes
Bore: 74.70

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
117	74.7	76.71	20.6	9.52	102.36	10	M8

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Thru holes
Bore: 99.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	99.6	102.11	21.3	11.1	130.25	16	8.43

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Inch tapped holes
Bore: 99.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	99.6	102.11	21.3	11.1	130.25	16	5/16-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF6.00" (DN100)
Bolt Hole Type: Metric tapped holes
Bore: 99.60

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
151.6	99.6	102.11	21.3	11.1	130.25	16	M8

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Thru holes
Bore: 125.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	125	127.51	21.3	11.68	151.61	18	8.43

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Inch tapped holes
Bore: 125.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	125	127.51	21.3	11.68	151.61	18	5/16-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF6.75" (DN130)
Bolt Hole Type: Metric tapped holes
Bore: 125.00

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
170.69	125	127.51	21.3	11.68	151.61	18	M8

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Thru holes
Bore: 150.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	150.4	152.91	23.9	12.7	181.05	20	8.43

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Inch tapped holes
Bore: 150.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	150.4	152.91	23.9	12.7	181.05	20	5/16-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF8.00" (DN160)
Bolt Hole Type: Metric tapped holes
Bore: 150.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
202.44	150.4	152.91	23.9	12.7	181.05	20	M8

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Thru holes
Bore: 200.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	200.4	203.71	24.6	12.7	231.85	24	8.43

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Inch tapped holes
Bore: 200.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	200.4	203.71	24.6	12.7	231.85	24	5/16-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF10.00" (DN200)
Bolt Hole Type: Metric tapped holes
Bore: 200.40

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
253.24	200.4	203.71	24.6	12.7	231.85	24	M8

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Thru holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	250.95	254.51	25.9	12.7	283.97	32	8.43

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Inch tapped holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	250.95	254.51	25.9	12.7	283.97	32	5/16-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF12.00" (DN250)
Bolt Hole Type: Metric tapped holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
304.04	250.95	254.51	25.9	12.7	283.97	32	M8

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Thru holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	250.95	254.51	28.45	12.7	306.32	30	10.49

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Inch tapped holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	250.95	254.51	28.45	12.7	306.32	30	3/8-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF13.25" (DN270)
Bolt Hole Type: Metric tapped holes
Bore: 250.95

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
335.79	250.95	254.51	28.45	12.7	306.32	30	M10

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Thru holes
Bore: 301.75

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	301.75	305.31	28.45	12.7	325.37	30	10.49

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Inch tapped holes
Bore: 301.75

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	301.75	305.31	28.45	12.7	325.37	30	3/8-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF14.00" (DN300)
Bolt Hole Type: Metric tapped holes
Bore: 301.75

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
354.84	301.75	305.31	28.45	12.7	325.37	30	M10

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Thru holes
Bore: 352.55

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	352.55	356.11	28.45	12.7	388.87	36	10.49

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Inch tapped holes
Bore: 352.55

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	352.55	356.11	28.45	12.7	388.87	36	3/8-24

料號:

Flange Type: Bored
Type: Rotatable
Flange Size: CF16.50" (DN350)
Bolt Hole Type: Metric tapped holes
Bore: 352.55

A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter/ Thread Type (mm)
418.34	352.55	356.11	28.45	12.7	388.87	36	M10
