KF Centering Rings & O-rings

Flange Size
Centering Ring Material
O-ring Material
Outer Ring Material
Mesh Material

料號尺寸 (Dimension in mm)

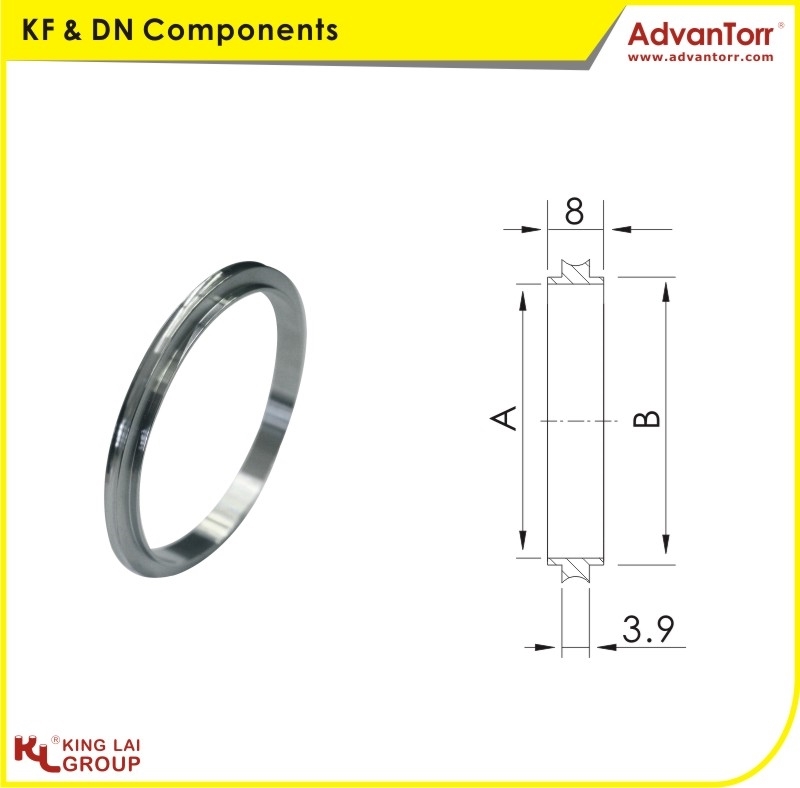

料號:

Flange Size: KF10
Centering Ring Material: SS304
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
10	12

料號:

Flange Size: KF16
Centering Ring Material: SS304
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
16	17

料號:

Flange Size: KF25
Centering Ring Material: SS304
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
25	26

料號:

Flange Size: KF40
Centering Ring Material: SS304
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
40	41

料號:

Flange Size: KF50
Centering Ring Material: SS304
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
50	52

料號:

Flange Size: KF10
Centering Ring Material: Aluminum
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
10	12

料號:

Flange Size: KF16
Centering Ring Material: Aluminum
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
16	17

料號:

Flange Size: KF25
Centering Ring Material: Aluminum
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
25	26

料號:

Flange Size: KF40
Centering Ring Material: Aluminum
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
40	41

料號:

Flange Size: KF50
Centering Ring Material: Aluminum
O-ring Material: n/a
Outer Ring Material: n/a
Mesh Material: n/a

A	B
50	52

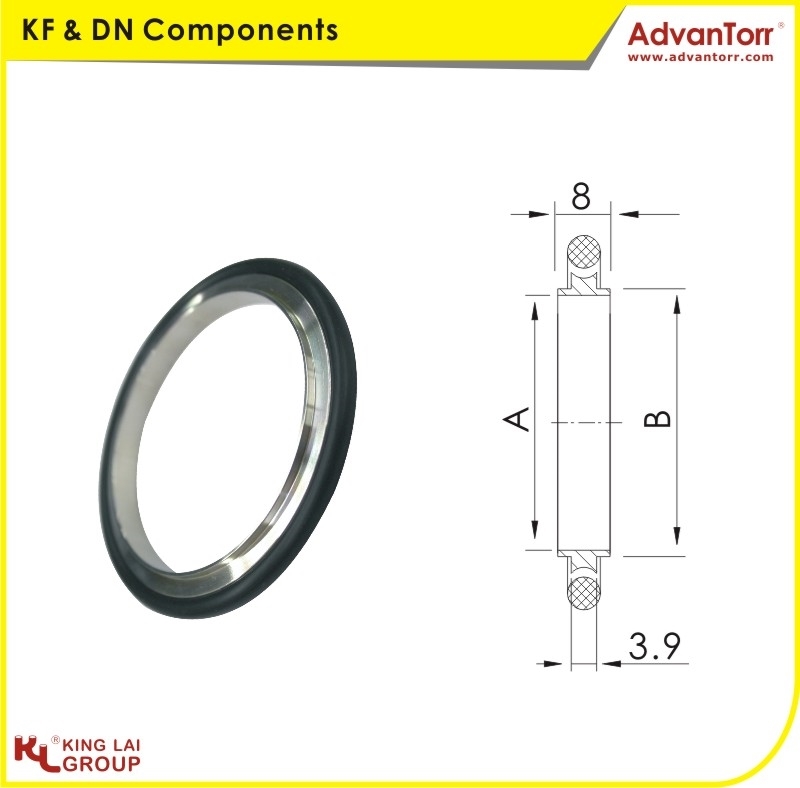

料號:

Flange Size: KF10
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
10	12

料號:

Flange Size: KF16
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
16	17

料號:

Flange Size: KF25
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
25	26

料號:

Flange Size: KF40
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
40	41

料號:

Flange Size: KF50
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
50	52

料號:

Flange Size: KF10
Centering Ring Material: SS304
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
10	12

料號:

Flange Size: KF16
Centering Ring Material: SS304
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
16	17

料號:

Flange Size: KF25
Centering Ring Material: SS304
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
25	26

料號:

Flange Size: KF40
Centering Ring Material: SS304
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
40	41

料號:

Flange Size: KF50
Centering Ring Material: SS304
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
50	52

料號:

Flange Size: KF10
Centering Ring Material: Aluminum
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
10	12

料號:

Flange Size: KF16
Centering Ring Material: Aluminum
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
16	17

料號:

Flange Size: KF25
Centering Ring Material: Aluminum
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
25	26

料號:

Flange Size: KF40
Centering Ring Material: Aluminum
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
40	41

料號:

Flange Size: KF50
Centering Ring Material: Aluminum
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B
50	52

料號:

Flange Size: KF10
Centering Ring Material: Aluminum
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
10	12

料號:

Flange Size: KF16
Centering Ring Material: Aluminum
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
16	17

料號:

Flange Size: KF25
Centering Ring Material: Aluminum
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
25	26

料號:

Flange Size: KF40
Centering Ring Material: Aluminum
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
40	41

料號:

Flange Size: KF50
Centering Ring Material: Aluminum
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A	B
50	52

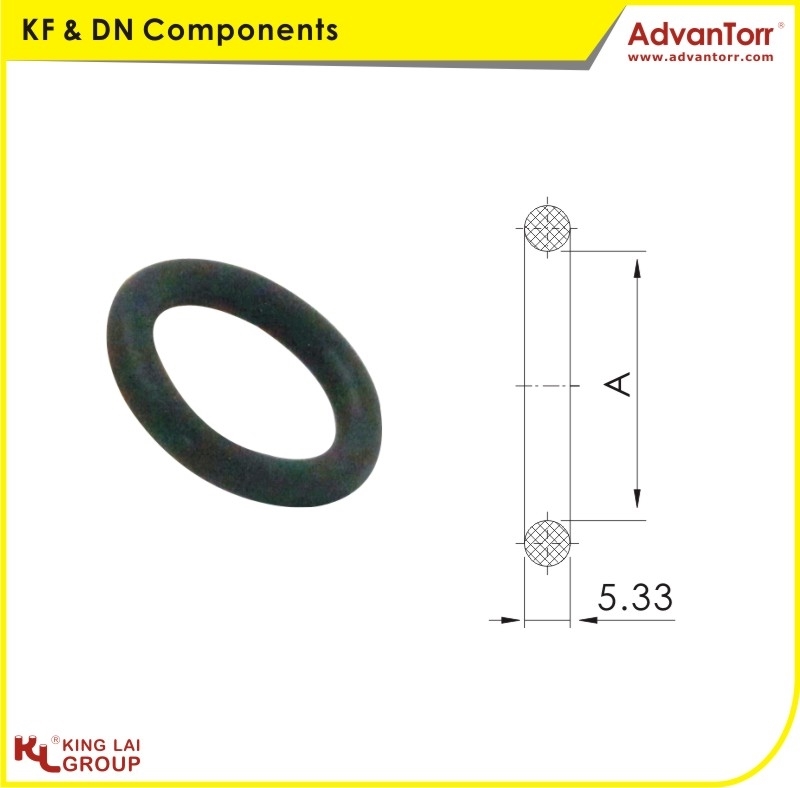

料號:

Flange Size: KF10
Centering Ring Material: n/a
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A
15.24

料號:

Flange Size: KF16
Centering Ring Material: n/a
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A
18.42

料號:

Flange Size: KF25
Centering Ring Material: n/a
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A
27.94

料號:

Flange Size: KF40
Centering Ring Material: n/a
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A
40.64

料號:

Flange Size: KF50
Centering Ring Material: n/a
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A
53.34

料號:

Flange Size: KF10
Centering Ring Material: n/a
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A
15.24

料號:

Flange Size: KF16
Centering Ring Material: n/a
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A
18.42

料號:

Flange Size: KF25
Centering Ring Material: n/a
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A
27.94

料號:

Flange Size: KF40
Centering Ring Material: n/a
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A
40.64

料號:

Flange Size: KF50
Centering Ring Material: n/a
O-ring Material: NBR
Outer Ring Material: n/a
Mesh Material: n/a

A
53.34

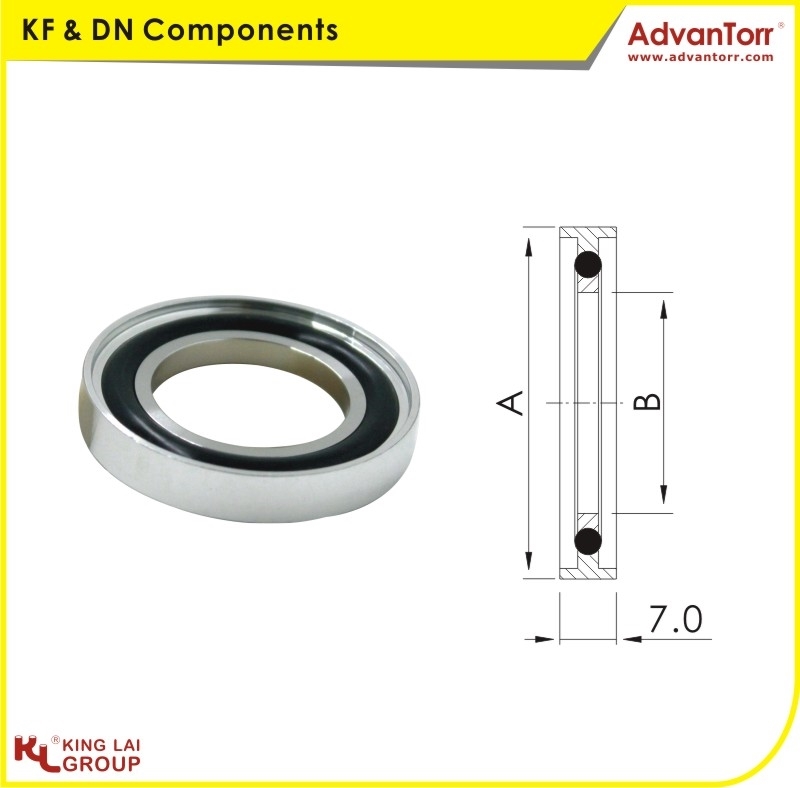

料號:

Flange Size: KF16
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
32.5	16

料號:

Flange Size: KF25
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
42.5	25

料號:

Flange Size: KF40
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
57.5	40

料號:

Flange Size: KF50
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
77.5	50

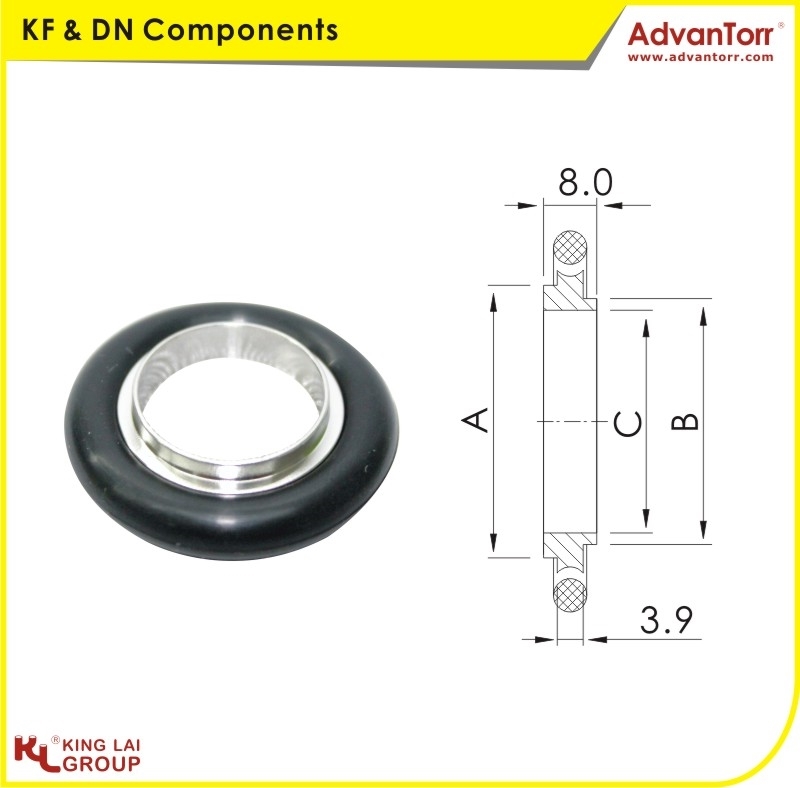

料號:

Flange Size: KF10 & KF16
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B	C
17	12	10

料號:

Flange Size: KF20 & KF25
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B	C
26	22	20

料號:

Flange Size: KF32 & KF40
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: n/a

A	B	C
41	34	32

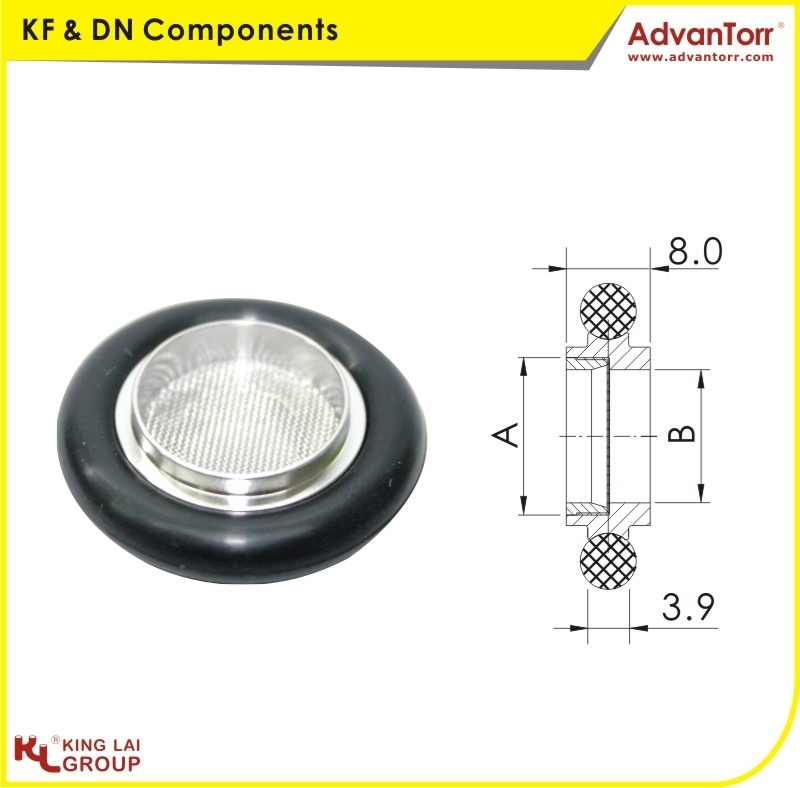

料號:

Flange Size: KF16
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: SS304

A	B
15	12.7

料號:

Flange Size: KF25
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: SS304

A	B
23.8	21.8

料號:

Flange Size: KF40
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: SS304

A	B
38.8	36.8

料號:

Flange Size: KF50
Centering Ring Material: SS304
O-ring Material: FKM
Outer Ring Material: n/a
Mesh Material: SS304

A	B
50	47.75

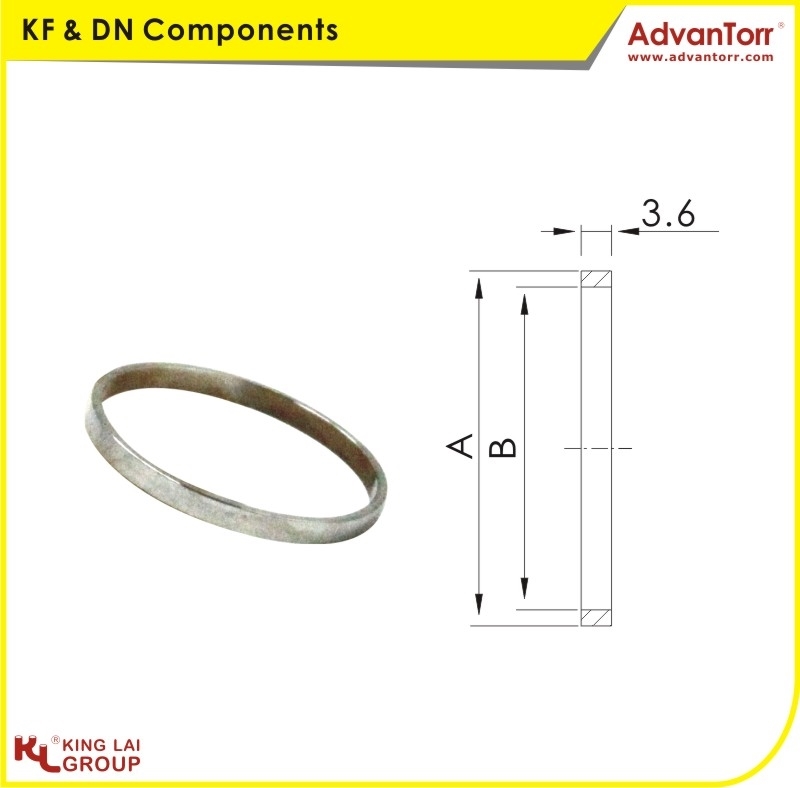

料號:

Flange Size: KF10
Centering Ring Material: n/a
O-ring Material: n/a
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
31.8	27.7

料號:

Flange Size: KF16
Centering Ring Material: n/a
O-ring Material: n/a
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
31.8	29.9

料號:

Flange Size: KF25
Centering Ring Material: n/a
O-ring Material: n/a
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
41.9	39.1

料號:

Flange Size: KF40
Centering Ring Material: n/a
O-ring Material: n/a
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
57.2	54.5

料號:

Flange Size: KF50
Centering Ring Material: n/a
O-ring Material: n/a
Outer Ring Material: Aluminum
Mesh Material: n/a

A	B
69.9	67.6
