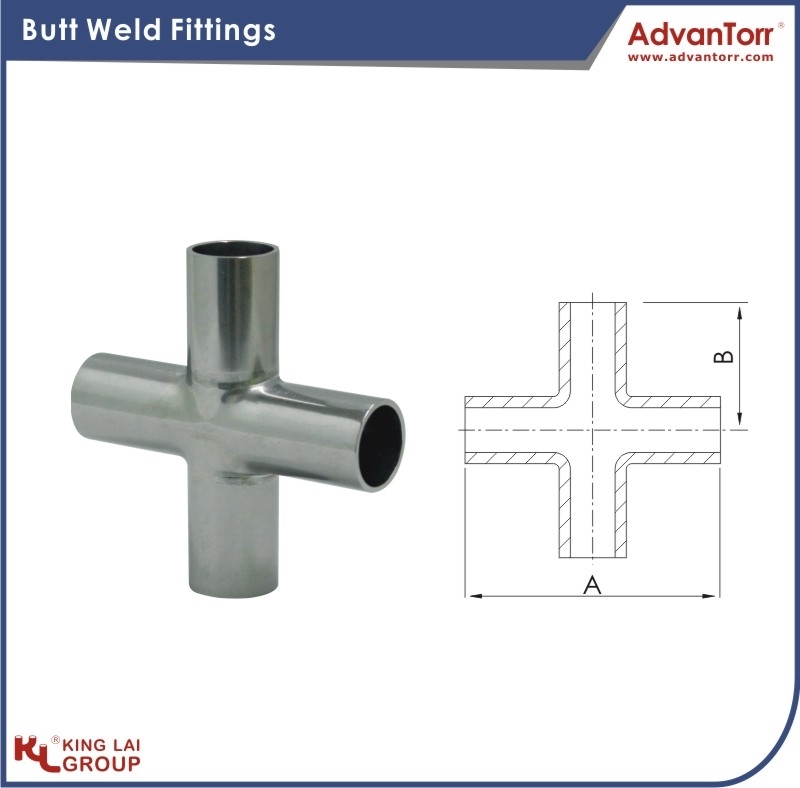

BW4C050

Type: Equal Main Tube Size: ½" Reducer Tube Size: n/a Dim A: 38.10
Tube 1 ODxT  A  B

½"x1.65mm  38.1  19.05

BW4C075

Type: Equal Main Tube Size: ¾" Reducer Tube Size: n/a Dim A: 50.80
Tube 1 ODxT  A  B

¾"x1.65mm  50.8  25.4

BW4C0751

Type: Equal Main Tube Size: ¾" Reducer Tube Size: n/a Dim A: 71.20
Tube 1 ODxT  A  B

¾"x1.65mm  71.2  35.6

BW4C0752

Type: Equal Main Tube Size: ¾" Reducer Tube Size: n/a Dim A: 95.20
Tube 1 ODxT  A  B

¾"x1.65mm  95.2  47.6

BW4C100

Type: Equal Main Tube Size: 1" Reducer Tube Size: n/a Dim A: 95.20
Tube 1 ODxT  A  B

1"x1.65mm  95.2  47.6

BW4C1001

Type: Equal Main Tube Size: 1" Reducer Tube Size: n/a Dim A: 91.40
Tube 1 ODxT  A  B

1"x1.65mm  91.4  45.7

BW4C150

Type: Equal Main Tube Size: 1½" Reducer Tube Size: n/a Dim A: 114.40
Tube 1 ODxT  A  B

1½"x1.65mm  114.4  57.2

BW4C1501

Type: Equal Main Tube Size: 1½" Reducer Tube Size: n/a Dim A: 121.42
Tube 1 ODxT  A  B

1½"x1.65mm  121.42  60.71

BW4C200

Type: Equal Main Tube Size: 2" Reducer Tube Size: n/a Dim A: 152.40
Tube 1 ODxT  A  B

2"x1.65mm  152.4  76.2

BW4C2001

Type: Equal Main Tube Size: 2" Reducer Tube Size: n/a Dim A: 131.60
Tube 1 ODxT  A  B

2"x1.65mm  131.6  65.8

BW4C250

Type: Equal Main Tube Size: 2½" Reducer Tube Size: n/a Dim A: 152.40
Tube 1 ODxT  A  B

2½"x1.65mm  152.4  76.2

BW4C2501

Type: Equal Main Tube Size: 2½" Reducer Tube Size: n/a Dim A: 190.50
Tube 1 ODxT  A  B

2½"x1.65mm  190.5  95.25

BW4C300

Type: Equal Main Tube Size: 3" Reducer Tube Size: n/a Dim A: 160.28
Tube 1 ODxT  A  B

3"x1.65mm  160.28  80.14

BW4C3001

Type: Equal Main Tube Size: 3" Reducer Tube Size: n/a Dim A: 165.20
Tube 1 ODxT  A  B

3"x1.65mm  165.2  82.6

BW4C400

Type: Equal Main Tube Size: 4" Reducer Tube Size: n/a Dim A: 196.80
Tube 1 ODxT  A  B

4"x2.11mm  196.8  98.4

BW4C4001

Type: Equal Main Tube Size: 4" Reducer Tube Size: n/a Dim A: 247.40
Tube 1 ODxT  A  B

4"x2.11mm  247.4  123.7

BW4C600

Type: Equal Main Tube Size: 6" Reducer Tube Size: n/a Dim A: 254.00
Tube 1 ODxT  A  B

6"x2.77mm  254  127

BW4C6001

Type: Equal Main Tube Size: 6" Reducer Tube Size: n/a Dim A: 307.80
Tube 1 ODxT  A  B

6"x2.77mm  307.8  153.9

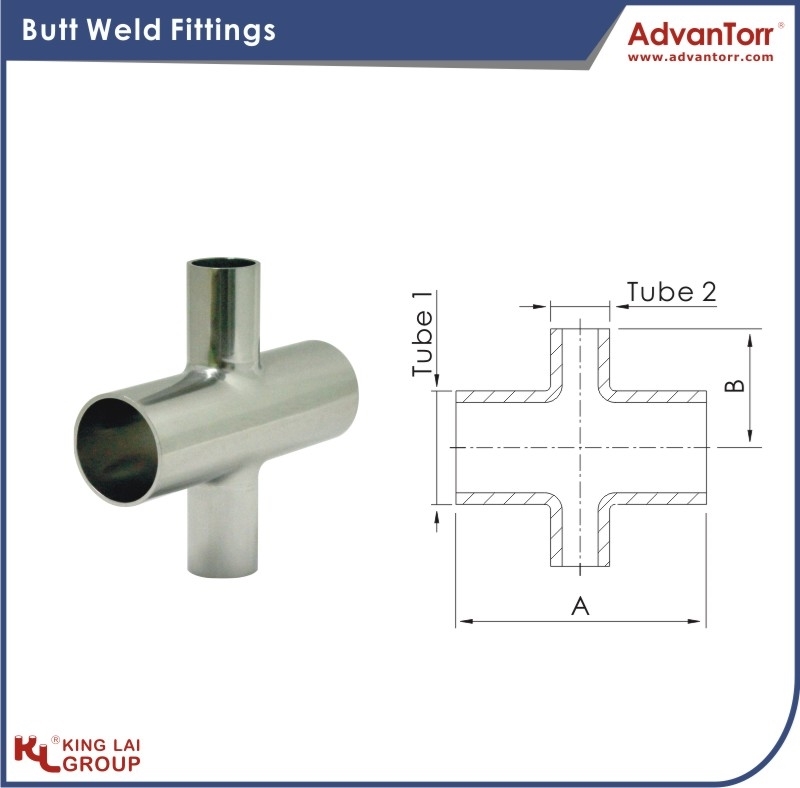

BW4RC100x050

Type: Reducing Main Tube Size: 1" Reducer Tube Size: ½" Dim A: 95.50
Tube 1 ODxT  Tube2 ODxT  A  B

1"x1.65mm  ½"x1.65mm  95.5  25.4

BW4RC100x075

Type: Reducing Main Tube Size: 1" Reducer Tube Size: ¾" Dim A: 95.50
Tube 1 ODxT  Tube2 ODxT  A  B

1"x1.65mm  ¾"x1.65mm  95.5  28.45

BW4RC150x050

Type: Reducing Main Tube Size: 1½" Reducer Tube Size: ½" Dim A: 114.30
Tube 1 ODxT  Tube2 ODxT  A  B

1½"x1.65mm  ½"x1.65mm  114.3  31.75

BW4RC150x075

Type: Reducing Main Tube Size: 1½" Reducer Tube Size: ¾" Dim A: 114.30
Tube 1 ODxT  Tube2 ODxT  A  B

1½"x1.65mm  ¾"x1.65mm  114.3  35.05

BW4RC150x100

Type: Reducing Main Tube Size: 1½" Reducer Tube Size: 1" Dim A: 114.30
Tube 1 ODxT  Tube2 ODxT  A  B

1½"x1.65mm  1"x1.65mm  114.3  54.1

BW4RC200x050

Type: Reducing Main Tube Size: 2" Reducer Tube Size: ½" Dim A: 152.40
Tube 1 ODxT  Tube2 ODxT  A  B

2"x1.65mm  ½"x1.65mm  152.4  38.1

BW4RC200x075

Type: Reducing Main Tube Size: 2" Reducer Tube Size: ¾" Dim A: 152.40
Tube 1 ODxT  Tube2 ODxT  A  B

2"x1.65mm  ¾"x1.65mm  152.4  41.4

BW4RC200x100

Type: Reducing Main Tube Size: 2" Reducer Tube Size: 1" Dim A: 152.40
Tube 1 ODxT  Tube2 ODxT  A  B

2"x1.65mm  1"x1.65mm  152.4  60.45

BW4RC200x150

Type: Reducing Main Tube Size: 2" Reducer Tube Size: 1½" Dim A: 152.40
Tube 1 ODxT  Tube2 ODxT  A  B

2"x1.65mm  1½"x1.65mm  152.4  63.5

BW4RC250x150

Type: Reducing Main Tube Size: 2½" Reducer Tube Size: 1½" Dim A: 152.40
Tube 1 ODxT  Tube2 ODxT  A  B

2½"x1.65mm  1½"x1.65mm  152.4  69.85

BW4RC250x200

Type: Reducing Main Tube Size: 2½" Reducer Tube Size: 2" Dim A: 152.40
Tube 1 ODxT  Tube2 ODxT  A  B

2½"x1.65mm  2"x1.65mm  152.4  82.55

BW4RC300x150

Type: Reducing Main Tube Size: 3" Reducer Tube Size: 1½" Dim A: 165.10
Tube 1 ODxT  Tube2 ODxT  A  B

3"x1.65mm  1½"x1.65mm  165.1  76.2

BW4RC300x200

Type: Reducing Main Tube Size: 3" Reducer Tube Size: 2" Dim A: 165.10
Tube 1 ODxT  Tube2 ODxT  A  B

3"x1.65mm  2"x1.65mm  165.1  88.9

BW4RC300x250

Type: Reducing Main Tube Size: 3" Reducer Tube Size: 2½" Dim A: 165.10
Tube 1 ODxT  Tube2 ODxT  A  B

3"x1.65mm  2½"x1.65mm  165.1  82.55

BW4RC400x150

Type: Reducing Main Tube Size: 4" Reducer Tube Size: 1½" Dim A: 197.10
Tube 1 ODxT  Tube2 ODxT  A  B

4"x2.11mm  1½"x1.65mm  197.1  88.9

BW4RC400x200

Type: Reducing Main Tube Size: 4" Reducer Tube Size: 2" Dim A: 197.10
Tube 1 ODxT  Tube2 ODxT  A  B

4"x2.11mm  2"x1.65mm  197.1  101.6

BW4RC400x250

Type: Reducing Main Tube Size: 4" Reducer Tube Size: 2½" Dim A: 197.10
Tube 1 ODxT  Tube2 ODxT  A  B

4"x2.11mm  2½"x1.65mm  197.1  95.25

BW4RC400x300

Type: Reducing Main Tube Size: 4" Reducer Tube Size: 3" Dim A: 197.10
Tube 1 ODxT  Tube2 ODxT  A  B

4"x2.11mm  3"x1.65mm  197.1  95.25

BW4RC600x150

Type: Reducing Main Tube Size: 6" Reducer Tube Size: 1½" Dim A: 254.00
Tube 1 ODxT  Tube2 ODxT  A  B

6"x2.11mm  1½"x1.65mm  254  114.3

BW4RC600x200

Type: Reducing Main Tube Size: 6" Reducer Tube Size: 2" Dim A: 254.00
Tube 1 ODxT  Tube2 ODxT  A  B

6"x2.11mm  2"x1.65mm  254  127

BW4RC600x250

Type: Reducing Main Tube Size: 6" Reducer Tube Size: 2½" Dim A: 254.00
Tube 1 ODxT  Tube2 ODxT  A  B

6"x2.11mm  2½"x1.65mm  254  120.65

BW4RC600x300

Type: Reducing Main Tube Size: 6" Reducer Tube Size: 3" Dim A: 254.00
Tube 1 ODxT  Tube2 ODxT  A  B

6"x2.11mm  3"x1.65mm  254  120.65

BW4RC600x400

Type: Reducing Main Tube Size: 6" Reducer Tube Size: 4" Dim A: 254.00
Tube 1 ODxT  Tube2 ODxT  A  B

6"x2.11mm  4"x2.11mm  254  123.95
