SMART Gate Valves

料號 尺寸 (Dimension in mm)

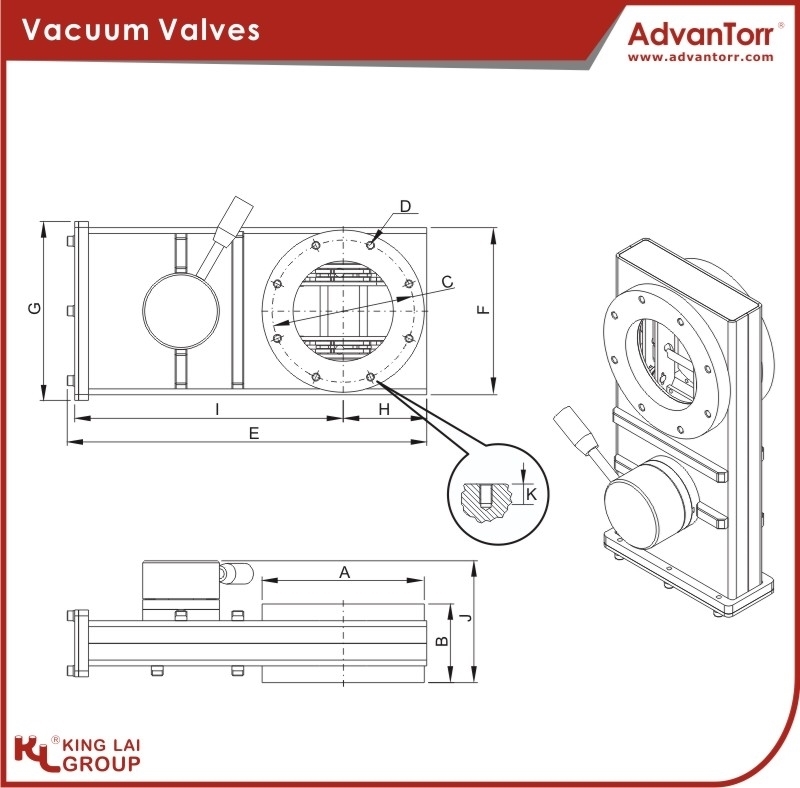

SGVM-HV-CF450T
Actuator: Manual
Flange Size: CF4.50" (DN63)
Thread Type: Inch
ABCThread DEFGHIJK
11470928x5/16-243041421647122615912
SGVM-HV-CF600T
Actuator: Manual
Flange Size: CF6.00" (DN100)
Thread Type: Inch
ABCThread DEFGHIJK
1527013016x5/16-243691701928527716612
SGVM-HV-CF800T
Actuator: Manual
Flange Size: CF8.00" (DN160)
Thread Type: Inch
ABCThread DEFGHIJK
2028018120x5/16-2451123426611738518515
SGVM-HV-CF1000T
Actuator: Manual
Flange Size: CF10.00" (DN200)
Thread Type: Inch
ABCThread DEFGHIJK
2538023224x5/16-2469331633415852521715
SGVM-HV-CF1200T
Actuator: Manual
Flange Size: CF12.00" (DN250)
Thread Type: Inch
ABCThread DEFGHIJK
30410028432x5/16-2479236839018459723418
SGVM-HV-CF450M
Actuator: Manual
Flange Size: CF4.50" (DN63)
Thread Type: Metric
ABCThread DEFGHIJK
11470928xM83041421647122615912
SGVM-HV-CF600M
Actuator: Manual
Flange Size: CF6.00" (DN100)
Thread Type: Metric
ABCThread DEFGHIJK
1527013016xM83691701928527716612
SGVM-HV-CF800M
Actuator: Manual
Flange Size: CF8.00" (DN160)
Thread Type: Metric
ABCThread DEFGHIJK
2028018120xM851123426611738518515
SGVM-HV-CF1000M
Actuator: Manual
Flange Size: CF10.00" (DN200)
Thread Type: Metric
ABCThread DEFGHIJK
2538023224xM869331633415852521715
SGVM-HV-CF1200M
Actuator: Manual
Flange Size: CF12.00" (DN250)
Thread Type: Metric
ABCThread DEFGHIJK
30410028432xM879236839018459723418
SGVM-HV-ISOF63
Actuator: Manual
Flange Size: ISO-F 63
Thread Type: Metric
ABCThread DEFGHIJK
130701104xM83001421547122223012
SGVM-HV-ISOF100
Actuator: Manual
Flange Size: ISO-F 100
Thread Type: Metric
ABCThread DEFGHIJK
165701458xM83661701828527325312
SGVM-HV-ISOF160
Actuator: Manual
Flange Size: ISO-F 160
Thread Type: Metric
ABCThread DEFGHIJK
225802008xM1050423425011737829915
SGVM-HV-ISOF200
Actuator: Manual
Flange Size: ISO-F 200
Thread Type: Metric
ABCThread DEFGHIJK
2858026012xM1069231633415852538815
SGVM-HV-ISOF250
Actuator: Manual
Flange Size: ISO-F 250
Thread Type: Metric
ABCThread DEFGHIJK
33510031012xM1079236839018459738618

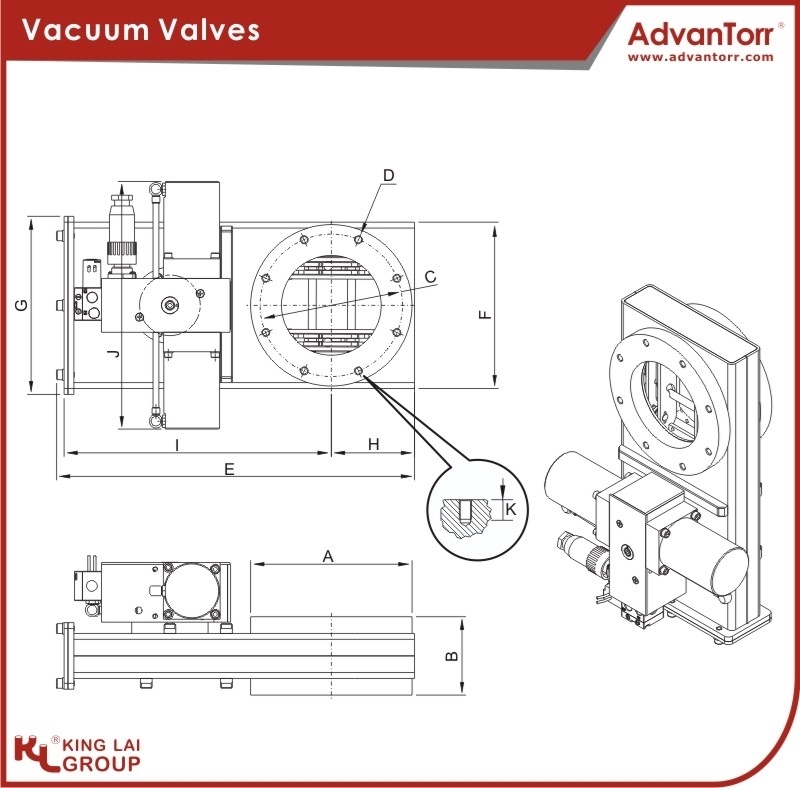

SGVP-HV-CF450T

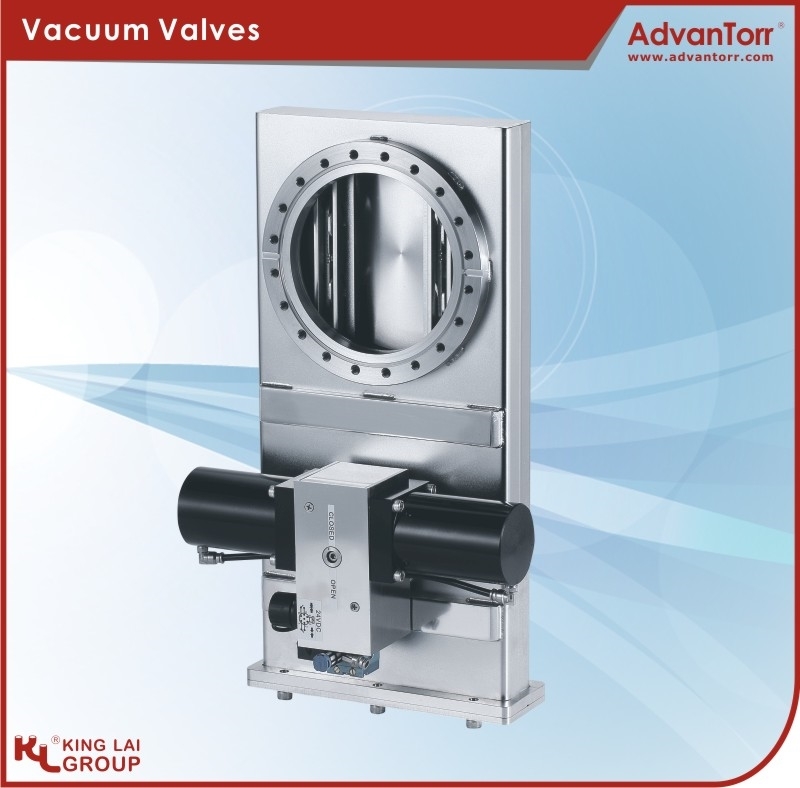

Actuator: Pneumatic
Flange Size: CF4.50" (DN63)
Thread Type: Inch
ABCThread DEFGHIJK
11470928x5/16-243001421547122223012
SGVP-HV-CF600T
Actuator: Pneumatic
Flange Size: CF6.00" (DN100)
Thread Type: Inch
ABCThread DEFGHIJK
1527013016x5/16-243661701828527325312
SGVP-HV-CF800T
Actuator: Pneumatic
Flange Size: CF8.00" (DN160)
Thread Type: Inch
ABCThread DEFGHIJK
2028018120x5/16-2450423425011737829915
SGVP-HV-CF1000T
Actuator: Pneumatic
Flange Size: CF10.00" (DN200)
Thread Type: Inch
ABCThread DEFGHIJK
2538023224x5/16-2469331633415852538815
SGVP-HV-CF1200T
Actuator: Pneumatic
Flange Size: CF12.00" (DN250)
Thread Type: Inch
ABCThread DEFGHIJK
30410028432x5/16-2479236839018459738618
SGVP-HV-CF450M
Actuator: Pneumatic
Flange Size: CF4.50" (DN63)
Thread Type: Metric
ABCThread DEFGHIJK
11470928xM83001421547122223012
SGVP-HV-CF600M
Actuator: Pneumatic
Flange Size: CF6.00" (DN100)
Thread Type: Metric
ABCThread DEFGHIJK
1527013016xM83661701828527325312
SGVP-HV-CF800M
Actuator: Pneumatic
Flange Size: CF8.00" (DN160)
Thread Type: Metric
ABCThread DEFGHIJK
2028018120xM850423425011737829915
SGVP-HV-CF1000M
Actuator: Pneumatic
Flange Size: CF10.00" (DN200)
Thread Type: Metric
ABCThread DEFGHIJK
2538023224xM869331633415852538815
SGVP-HV-CF1200M
Actuator: Pneumatic
Flange Size: CF12.00" (DN250)
Thread Type: Metric
ABCThread DEFGHIJK
30410028432xM879236839018459738618
SGVP-HV-ISOF63
Actuator: Pneumatic
Flange Size: ISO-F 63
Thread Type: Metric
ABCThread DEFGHIJK
130701104xM83001421547122223012
SGVP-HV-ISOF100
Actuator: Pneumatic
Flange Size: ISO-F 100
Thread Type: Metric
ABCThread DEFGHIJK
165701458xM83661701828527325312
SGVP-HV-ISOF160
Actuator: Pneumatic
Flange Size: ISO-F 160
Thread Type: Metric
ABCThread DEFGHIJK
225802008xM1050423425011737829915
SGVP-HV-ISOF200
Actuator: Pneumatic
Flange Size: ISO-F 200
Thread Type: Metric
ABCThread DEFGHIJK
2858026012xM1069231633415852538815
SGVP-HV-ISOF250
Actuator: Pneumatic
Flange Size: ISO-F 250
Thread Type: Metric
ABCThread DEFGHIJK
33510031012xM1079236839018459738618
