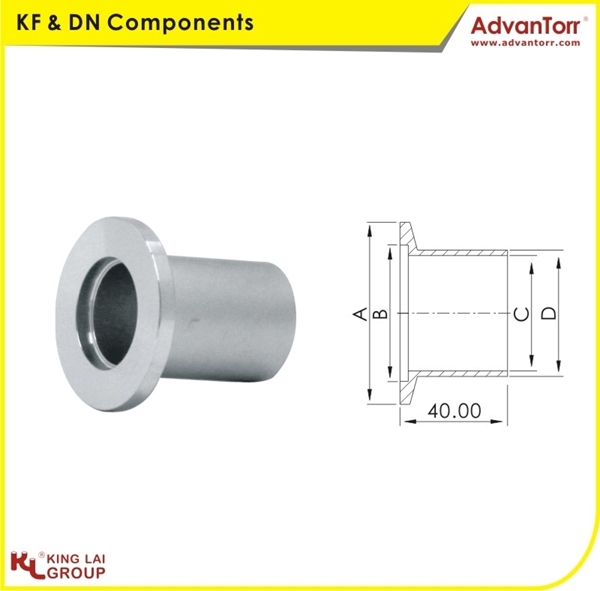

圖片 DN Half Nipples

DN Half Nipples

Flange Size
Length

料號尺寸 (Dimension in mm)

料號: DN-BW26-10

Flange Size: DN10
Length: 26.00

A	B	C	D	E
30	12.2	10	14	26

料號: DN-BW26-16

Flange Size: DN16
Length: 26.00

A	B	C	D	E
30	17.2	16	20	26

料號: DN-BW26-20

Flange Size: DN20
Length: 26.00

A	B	C	D	E
40	22.2	21	25	26

料號: DN-BW26-25

Flange Size: DN25
Length: 26.00

A	B	C	D	E
40	26.2	24	28	26

料號: DN-BW26-32

Flange Size: DN32
Length: 26.00

A	B	C	D	E
55	34.2	34	38	26

料號: DN-BW26-40

Flange Size: DN40
Length: 26.00

A	B	C	D	E
55	41.2	40.5	44.5	26

料號: DN-BW26-50

Flange Size: DN50
Length: 26.00

A	B	C	D	E
75	52.2	50.6	57	26

料號: DN-BW30-10

Flange Size: DN10
Length: 30.00

A	B	C	D	E
30	12.2	10	14	30

料號: DN-BW30-16

Flange Size: DN16
Length: 30.00

A	B	C	D	E
30	17.2	16	20	30

料號: DN-BW30-25

Flange Size: DN25
Length: 30.00

A	B	C	D	E
40	26.2	24	28	30

料號: DN-BW30-40

Flange Size: DN40
Length: 30.00

A	B	C	D	E
55	41.2	40.5	44.5	30

料號: DN-BW30-50

Flange Size: DN50
Length: 30.00

A	B	C	D	E
75	52.2	50.6	57	30

料號: DN-BW55-10

Flange Size: DN10
Length: 55.00

A	B	C	D	E
30	12.2	10	14	55

料號: DN-BW55-16

Flange Size: DN16
Length: 55.00

A	B	C	D	E
30	17.2	16	20	55

料號: DN-BW55-25

Flange Size: DN25
Length: 55.00

A	B	C	D	E
40	26.2	24	28	55

料號: DN-BW55-40

Flange Size: DN40
Length: 55.00

A	B	C	D	E
55	41.2	40.5	44.5	55

料號: DN-BW55-50

Flange Size: DN50
Length: 55.00

A	B	C	D	E
75	52.2	50.6	57	55

料號: DN-BW70-10

Flange Size: DN10
Length: 70.00

A	B	C	D	E
30	12.2	10	14	70

料號: DN-BW70-16

Flange Size: DN16
Length: 70.00

A	B	C	D	E
30	17.2	16	20	70

料號: DN-BW70-25

Flange Size: DN25
Length: 70.00

A	B	C	D	E
40	26.2	24	28	70

料號: DN-BW70-40

Flange Size: DN40
Length: 70.00

A	B	C	D	E
55	41.2	40.5	44.5	70

料號: DN-BW70-50

Flange Size: DN50
Length: 70.00

A	B	C	D	E
75	52.2	50.6	57	70
