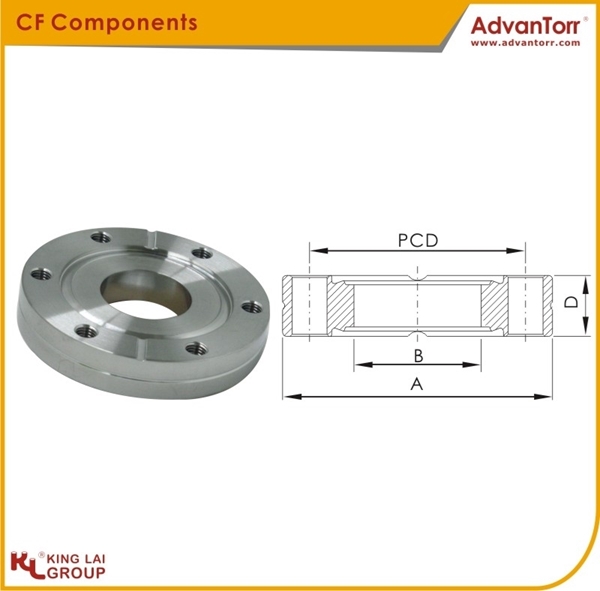

Double Face Flanges

料號 尺寸 (Dimension in mm)
CF-DF-133
Main Flange: CF1.33" (DN16)
Small Flange: CF1.33" (DN16)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
33.77.626.9764.37
CF-DF-133x075
Main Flange: CF1.33" (DN16)
Small Flange: CF1.33" (DN16)
Bore: 15.88
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
33.715.887.626.9764.37
CF-DF-212
Main Flange: CF2.12" (DN25)
Small Flange: CF2.12" (DN25)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
53.811.941.2846.73
CF-DF-212x100
Main Flange: CF2.12" (DN25)
Small Flange: CF2.12" (DN25)
Bore: 25.65
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
53.825.6511.941.2846.73
CF-DF-275
Main Flange: CF2.75" (DN40)
Small Flange: CF2.75" (DN40)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
69.312.758.7266.73
CF-DF-275x150
Main Flange: CF2.75" (DN40)
Small Flange: CF2.75" (DN40)
Bore: 38.35
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
69.338.3512.758.7266.73
CF-DF-338
Main Flange: CF3.38" (DN50)
Small Flange: CF3.38" (DN50)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
85.31672.3988.43
CF-DF-338x200
Main Flange: CF3.38" (DN50)
Small Flange: CF3.38" (DN50)
Bore: 51.05
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
85.351.051672.3988.43
CF-DF-450
Main Flange: CF4.50" (DN63)
Small Flange: CF4.50" (DN63)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
113.517.492.1588.43
CF-DF-450x250
Main Flange: CF4.50" (DN63)
Small Flange: CF4.50" (DN63)
Bore: 63.75
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
113.563.7517.492.1588.43
CF-DF-462
Main Flange: CF4.62" (DN80)
Small Flange: CF4.62" (DN80)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
11719.1102.36108.43
CF-DF-462x300
Main Flange: CF4.62" (DN80)
Small Flange: CF4.62" (DN80)
Bore: 79.71
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
11779.7119.1102.36108.43
CF-DF-600
Main Flange: CF6.00" (DN100)
Small Flange: CF6.00" (DN100)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
151.619.8130.25168.43
CF-DF-600x400
Main Flange: CF6.00" (DN100)
Small Flange: CF6.00" (DN100)
Bore: 101.85
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
151.6101.8519.8130.25168.43
CF-DF-675
Main Flange: CF6.75" (DN130)
Small Flange: CF6.75" (DN130)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
170.6921.34151.61188.43
CF-DF-675x500
Main Flange: CF6.75" (DN130)
Small Flange: CF6.75" (DN130)
Bore: 127.25
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
170.69127.2521.34151.61188.43
CF-DF-800
Main Flange: CF8.00" (DN160)
Small Flange: CF8.00" (DN160)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
202.4422.35181.05208.43
CF-DF-800x600
Main Flange: CF8.00" (DN160)
Small Flange: CF8.00" (DN160)
Bore: 152.65
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
202.44152.6522.35181.05208.43
CF-DF-1000
Main Flange: CF10.00" (DN200)
Small Flange: CF10.00" (DN200)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
253.2424.6231.85248.43
CF-DF-1000x800
Main Flange: CF10.00" (DN200)
Small Flange: CF10.00" (DN200)
Bore: 203.45
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
253.24203.4524.6231.85248.43
CF-DF-1325
Main Flange: CF13.25" (DN270)
Small Flange: CF13.25" (DN270)
Bore: Blank
A (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
335.7928.45306.323010.49
CF-DF-1325x1000
Main Flange: CF13.25" (DN270)
Small Flange: CF13.25" (DN270)
Bore: 254.5
A (mm)B (mm)D (mm)PCD (mm)Bolt HolesDiameter (mm) / Thread Type
335.79254.528.45306.323010.49
