KF Clamps

料號 尺寸 (Dimension in mm)

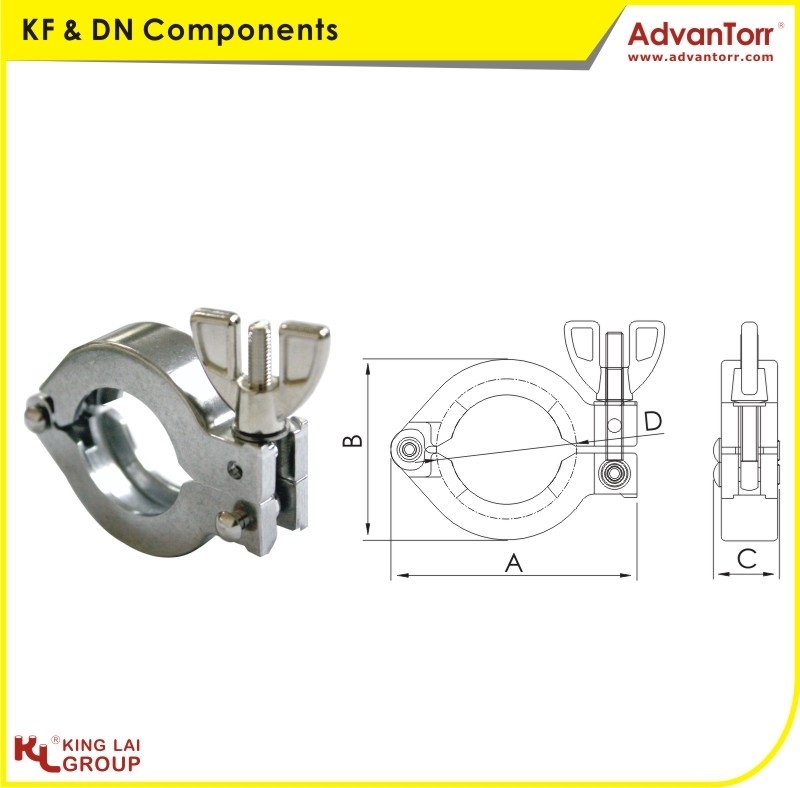

KF-WC1-16
Type: Casted, Wing-Nut(2 joints)
Material: Aluminum
Flange Size: KF16
ABCDBolt Hole Size
62.34116.533Bolt Hole Size
KF-WC1-25
Type: Casted, Wing-Nut(2 joints)
Material: Aluminum
Flange Size: KF25
ABCDBolt Hole Size
72.45416.544Bolt Size
KF-WC1-40
Type: Casted, Wing-Nut(2 joints)
Material: Aluminum
Flange Size: KF40
ABCD
89.76916.558
KF-WC1-50
Type: Casted, Wing-Nut(2 joints)
Material: Aluminum
Flange Size: KF50
ABCD
1149021.580

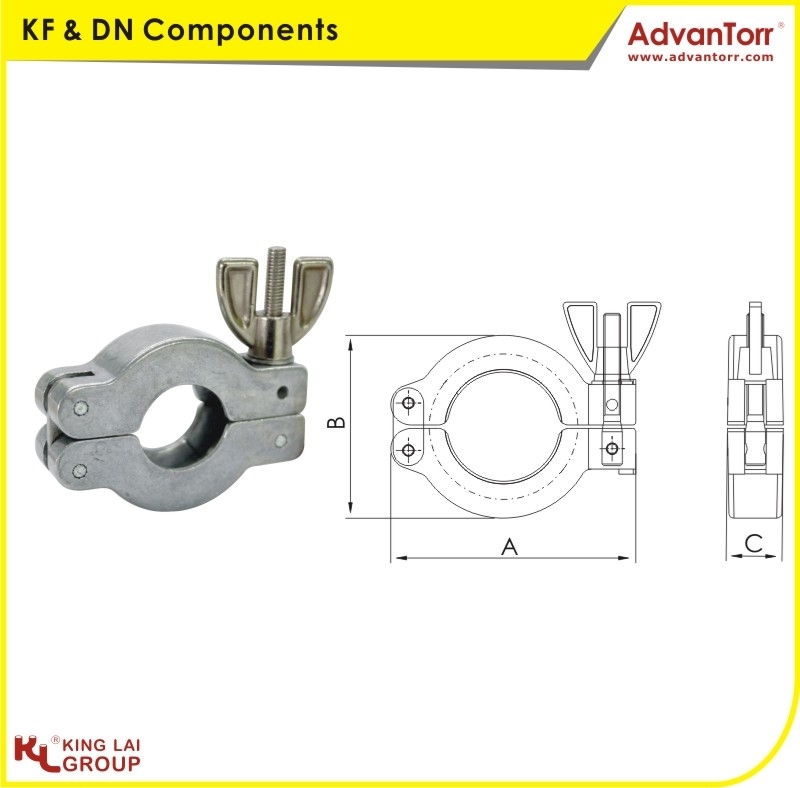

KF-WC2-16
Type: Casted, Wing-Nut(1 joint)
Material: Aluminum
Flange Size: KF16
ABCD
62.741.419.332.6
KF-WC2-25
Type: Casted, Wing-Nut(1 joint)
Material: Aluminum
Flange Size: KF25
ABCD
7253.119.342
KF-WC2-40
Type: Casted, Wing-Nut(1 joint)
Material: Aluminum
Flange Size: KF40
ABCD
9070.219.358.8
KF-WC2-50
Type: Casted, Wing-Nut(1 joint)
Material: Aluminum
Flange Size: KF50
ABCD
113.493.422.879.6

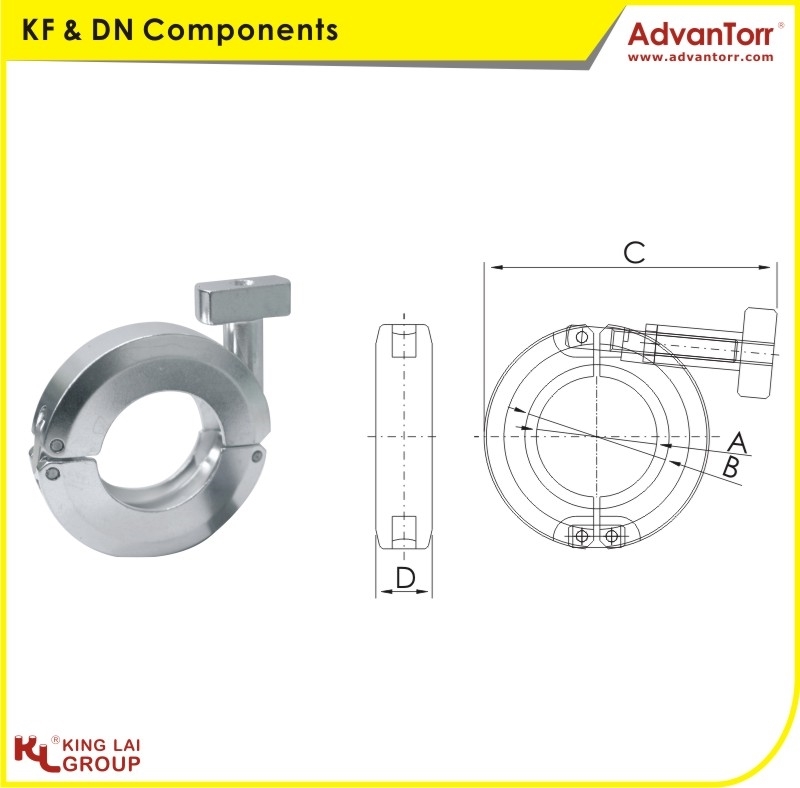

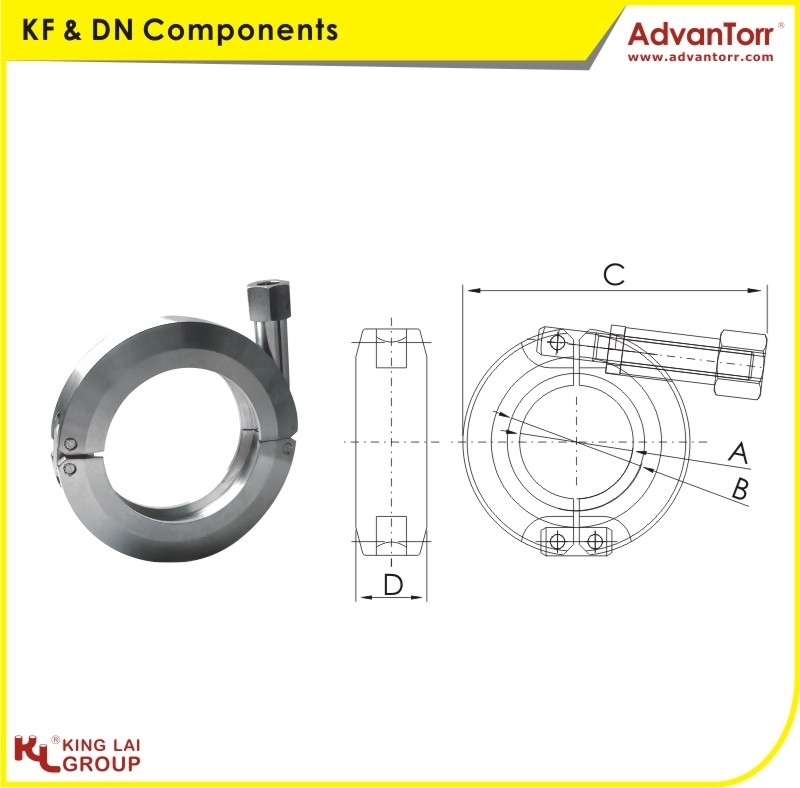

KF-CC-16
Type: Machined
Material: SS304L
Flange Size: KF16
ABCD
25.430.86815.9
KF-CC-25
Type: Machined
Material: SS304L
Flange Size: KF25
ABCD
34.1240.9480.6315.9
KF-CC-40
Type: Machined
Material: SS304L
Flange Size: KF40
ABCD
49.455.787.215.9
KF-CC-50
Type: Machined
Material: SS304L
Flange Size: KF50
ABCD
6975.6109.315.9
KF-CC-16-AL
Type: Machined
Material: Aluminum
Flange Size: KF16
ABCD
25.430.870.215.9
KF-CC-25-AL
Type: Machined
Material: Aluminum
Flange Size: KF25
ABCD
34.1240.9482.6615.9
KF-CC-40-AL
Type: Machined
Material: Aluminum
Flange Size: KF40
ABCD
49.455.790.815.9
KF-CC-50-AL
Type: Machined
Material: Aluminum
Flange Size: KF50
ABCD
6975.611315.9

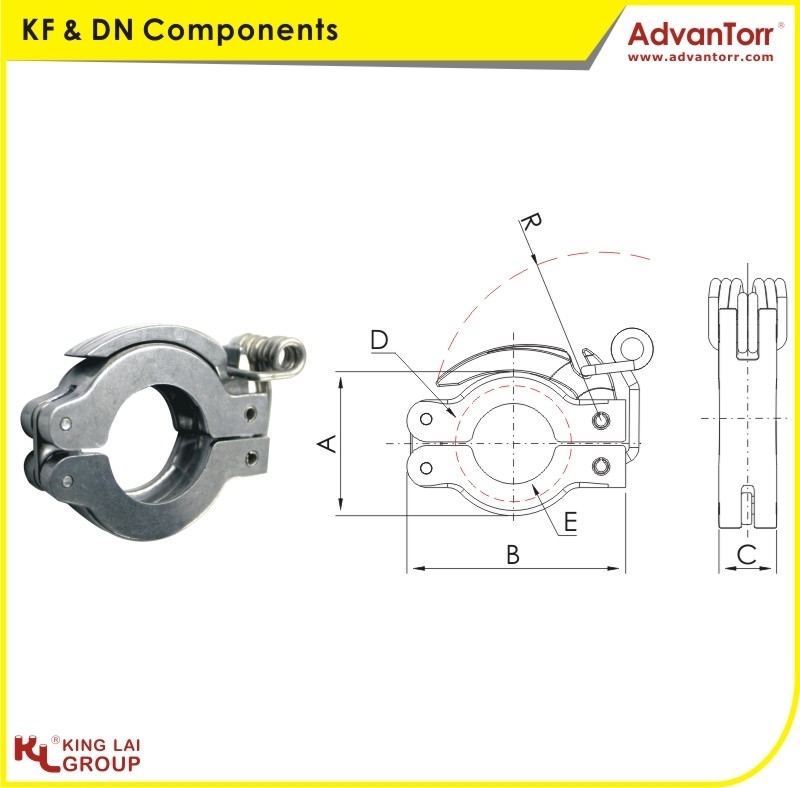

KF-QC-16
Type: Casted, Quick
Material: Aluminum
Flange Size: KF16
ABCDER
16.562.3414811.9416.5
KF-QC-25
Type: Casted, Quick
Material: Aluminum
Flange Size: KF25
ABCDER
16.572.4545616.6422
KF-QC-40
Type: Casted, Quick
Material: Aluminum
Flange Size: KF40
ABCDER
16.589.76972.3724.2629
KF-BCS-16
Type: Bulkhead
Material: Aluminum
Flange Size: KF16
ABCBolt Hole SizeNo of Bolt HolesBolt Size
38.19.250.84.3610-32UNF-15.9L
KF-BCS-25
Type: Bulkhead
Material: Aluminum
Flange Size: KF25
ABCBolt Hole SizeNo of Bolt HolesBolt Size
489.960.35.3610-32UNF-15.9L
KF-BCS-40
Type: Bulkhead
Material: Aluminum
Flange Size: KF40
ABCBolt Hole SizeNo of Bolt HolesBolt Size
629.374.65.3610-32UNF-15.9L
KF-BCS-50
Type: Bulkhead
Material: Aluminum
Flange Size: KF50
ABCBolt Hole SizeNo of Bolt HolesBolt Size
82.5510.395.25.3810-32UNF-15.9L

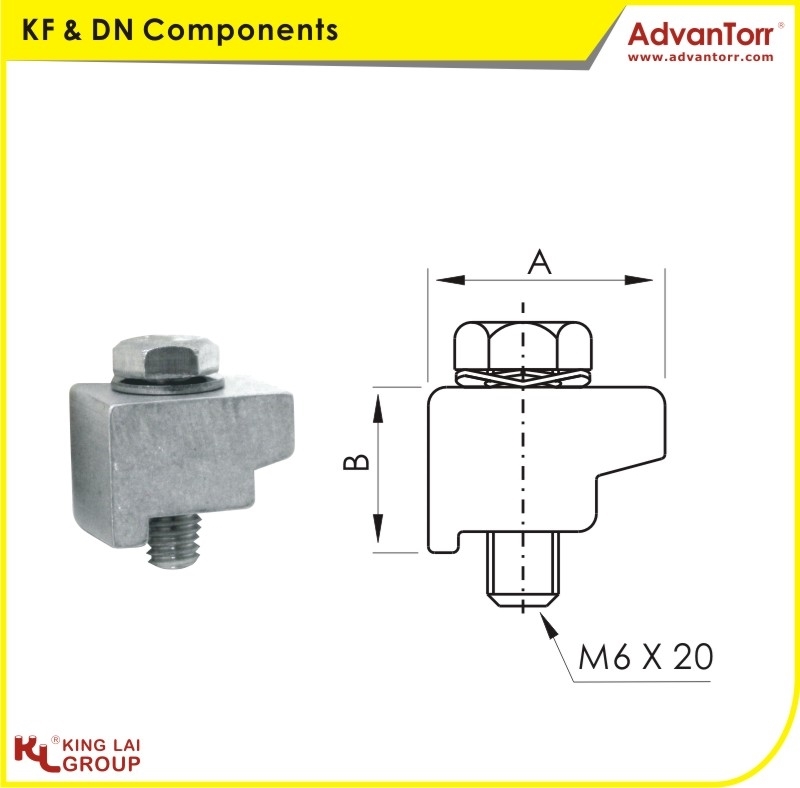

KF-WC1-1650
Type: Wall Clamp
Material: Aluminum
Flange Size: KF10~KF50
AB
2015

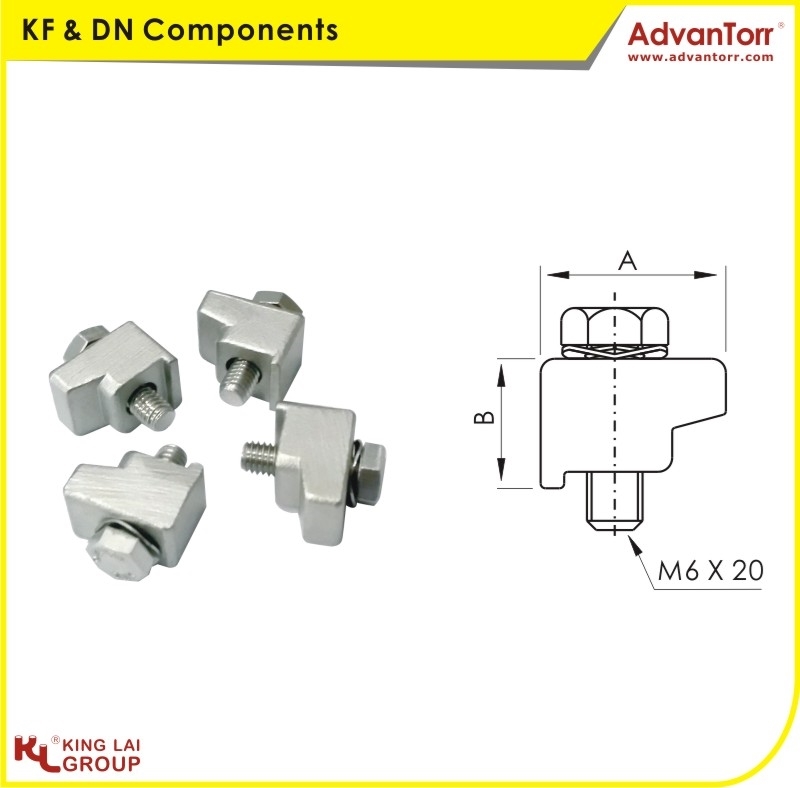

KF-SC-1650
Type: Wall Clamp(4sets in 1 pack)
Material: SS304
Flange Size: KF10~KF50
AB
2014
