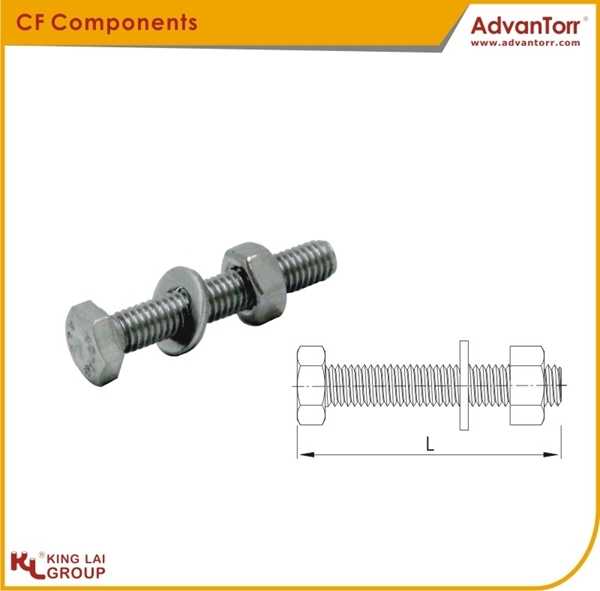

CF Hex Head Bolts

料號 尺寸 (Dimension in mm)
CF-HB-133M
Thread Type: Metric
Flange Size: CF1.33" (DN16)
ThreadLNo. of Sets
M4xP0.702025
CF-HB-212M
Thread Type: Metric
Flange Size: CF2.12" (DN25)
ThreadLNo. of Sets
M6xP1.003525
CF-HB-275M
Thread Type: Metric
Flange Size: CF2.75" (DN40)
ThreadLNo. of Sets
M6xP1.003525
CF-HB-338M
Thread Type: Metric
Flange Size: CF3.38" (DN50)
ThreadLNo. of Sets
M8xP1.254525
CF-HB-450M
Thread Type: Metric
Flange Size: CF4.50" (DN63)
ThreadLNo. of Sets
M8xP1.254525
CF-HB-600M
Thread Type: Metric
Flange Size: CF6.00" (DN100)
ThreadLNo. of Sets
M8xP1.255025
CF-HB-800M
Thread Type: Metric
Flange Size: CF8.00" (DN160)
ThreadLNo. of Sets
M8xP1.256025
CF-HB-1000M
Thread Type: Metric
Flange Size: CF10.00" (DN200)
ThreadLNo. of Sets
M8xP1.256025
CF-HB-133
Thread Type: Inch
Flange Size: CF1.33" (DN16)
ThreadLNo. of Sets
8-32 UNC19.125
CF-HB-212
Thread Type: Inch
Flange Size: CF2.12" (DN25)
ThreadLNo. of Sets
1/4”-28UNF31.825
CF-HB-275
Thread Type: Inch
Flange Size: CF2.75" (DN40)
ThreadLNo. of Sets
1/4”-28UNF31.825
CF-HB-338
Thread Type: Inch
Flange Size: CF3.38" (DN50)
ThreadLNo. of Sets
5/16”-24UNF44.525
CF-HB-450
Thread Type: Inch
Flange Size: CF4.50" (DN63)
ThreadLNo. of Sets
5/16”-24UNF50.825
CF-HB-600
Thread Type: Inch
Flange Size: CF6.00" (DN100)
ThreadLNo. of Sets
5/16”-24UNF57.225
CF-HB-800
Thread Type: Inch
Flange Size: CF8.00" (DN160)
ThreadLNo. of Sets
5/16”-24UNF57.225
CF-HB-1000
Thread Type: Inch
Flange Size: CF10.00" (DN200)
ThreadLNo. of Sets
5/16”-24UNF63.525
