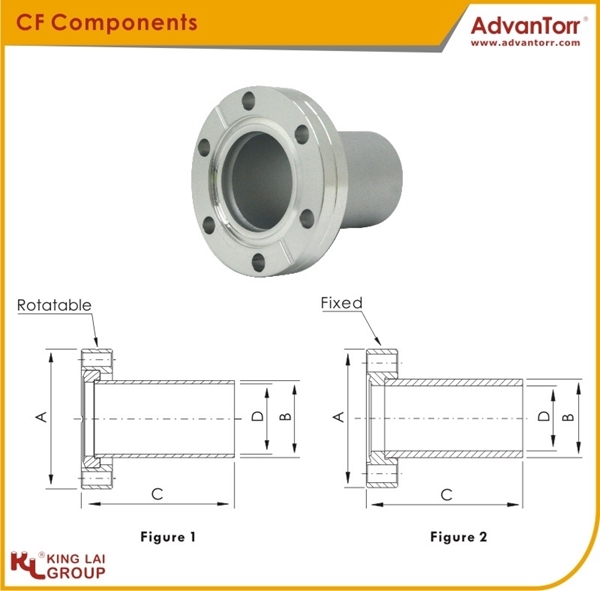

CF Half Nipples

料號 尺寸 (Dimension in mm)
CF-HN-133
Flange Type: Fixed
Flange Size: CF1.33" (DN16)
Tube Size: 19.05
Length: 38.10
ABCD
1.33"19.0538.115.75
CF-HN-133R
Flange Type: Rotatable
Flange Size: CF1.33" (DN16)
Tube Size: 19.05
Length: 38.10
ABCD
1.33"19.0538.115.75
CF-HN-212
Flange Type: Fixed
Flange Size: CF2.12" (DN25)
Tube Size: 25.40
Length: 52.07
ABCD
2.12"25.452.0722.1
CF-HN-275
Flange Type: Fixed
Flange Size: CF2.75" (DN40)
Tube Size: 38.10
Length: 62.48
ABCD
2.75"38.162.4834.8
CF-HN-275R
Flange Type: Rotatable
Flange Size: CF2.75" (DN40)
Tube Size: 38.10
Length: 62.70
ABCD
2.75"38.162.734.8
CF-HN-338
Flange Type: Fixed
Flange Size: CF3.38" (DN50)
Tube Size: 50.80
Length: 81.79
ABCD
3.38"50.881.7947.5
CF-HN-450
Flange Type: Fixed
Flange Size: CF4.50" (DN63)
Tube Size: 63.50
Length: 85.85
ABCD
4.50"63.585.8560.2
CF-HN-450R
Flange Type: Rotatable
Flange Size: CF4.50" (DN63)
Tube Size: 63.50
Length: 104.80
ABCD
4.50"63.5104.860.2
CF-HN-462
Flange Type: Fixed
Flange Size: CF4.62" (DN80)
Tube Size: 76.20
Length: 89.66
ABCD
4.62"76.289.6672.9
CF-HN-600
Flange Type: Fixed
Flange Size: CF6.00" (DN100)
Tube Size: 101.60
Length: 109.73
ABCD
6.00"101.6109.7397.4
CF-HN-600R
Flange Type: Rotatable
Flange Size: CF6.00" (DN100)
Tube Size: 101.60
Length: 134.90
ABCD
6.00"101.6134.997.4
CF-HN-675
Flange Type: Fixed
Flange Size: CF6.75" (DN130)
Tube Size: 127.00
Length: 109.70
ABCD
6.75"127109.7122.8
CF-HN-800
Flange Type: Fixed
Flange Size: CF8.00" (DN160)
Tube Size: 152.40
Length: 139.70
ABCD
8.00"152.4139.7148.2
CF-HN-1000
Flange Type: Fixed
Flange Size: CF10.00" (DN200)
Tube Size: 203.20
Length: 203.20
ABCD
10.00"203.2203.2197.2
