Weld Elbows

Type
Angle
Tube Size
Dim A

料號尺寸 (Dimension in mm)

料號:

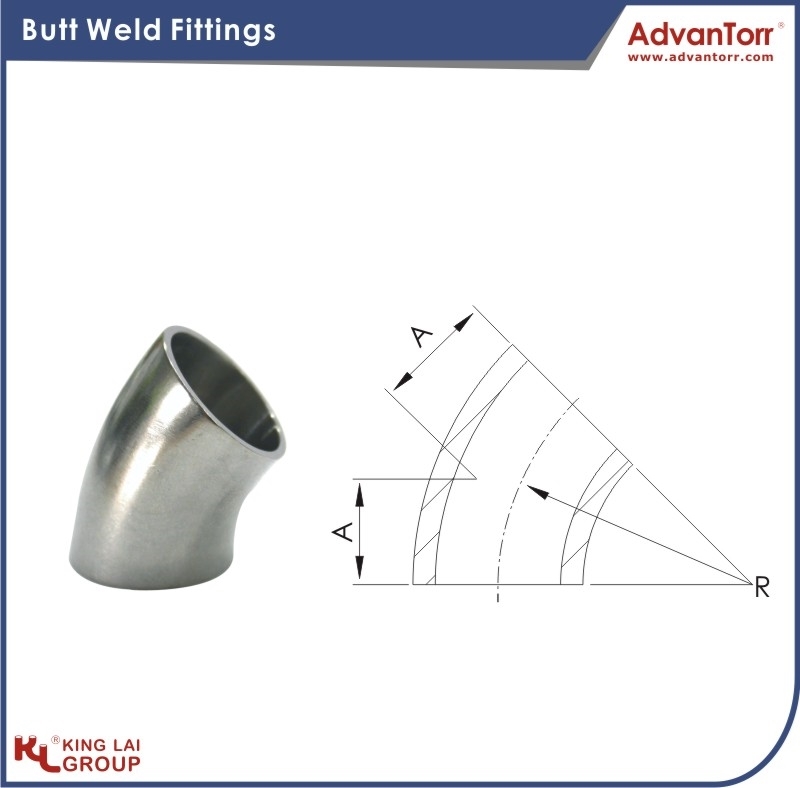

Type: Radius
Angle: 45 Deg
Tube Size: ½"
Dim A: 7.95

Tube Size	Wall Thickness	A	R
½"	1.65	7.95	19.1

料號:

Type: Radius
Angle: 45 Deg
Tube Size: ¾"
Dim A: 11.91

Tube Size	Wall Thickness	A	R
¾"	1.65	11.91	28.6

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 1"
Dim A: 15.77

Tube Size	Wall Thickness	A	R
1"	1.65	15.77	38.1

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 1½"
Dim A: 23.67

Tube Size	Wall Thickness	A	R
1½"	1.65	23.67	57.15

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 2"
Dim A: 31.57

Tube Size	Wall Thickness	A	R
2"	1.65	31.57	76.2

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 2½"
Dim A: 39.70

Tube Size	Wall Thickness	A	R
2½"	1.65	39.7	95.25

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 3"
Dim A: 47.35

Tube Size	Wall Thickness	A	R
3"	1.65	47.35	114.3

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 4"
Dim A: 63.12

Tube Size	Wall Thickness	A	R
4"	2.11	63.12	152.4

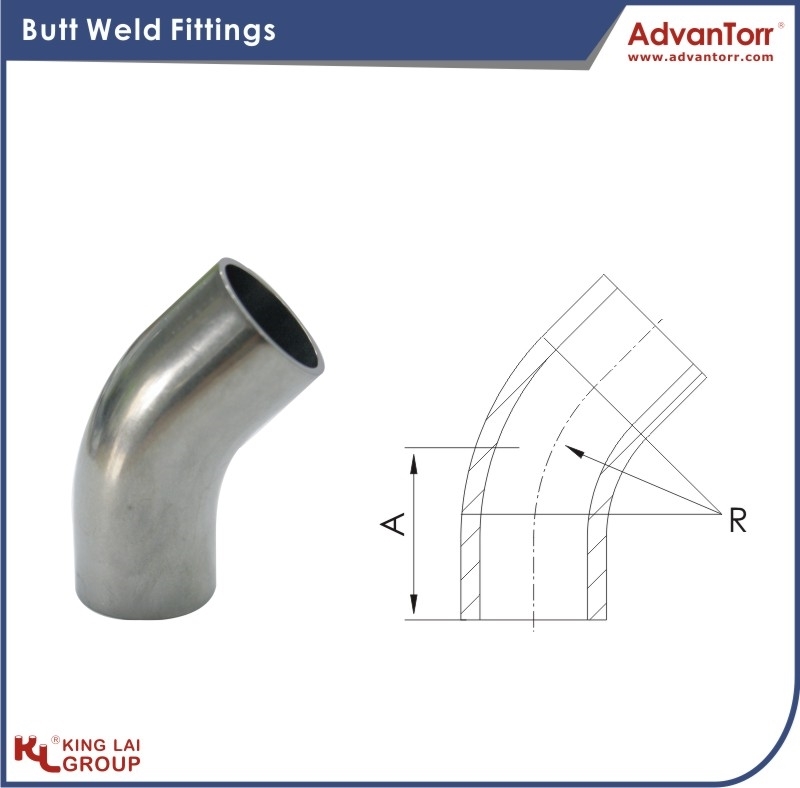

料號:

Type: Radius
Angle: 45 Deg
Tube Size: ¾"
Dim A: 19.40

Tube Size	Wall Thickness	A	R
¾"	1.65	19.4	28.6

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 1"
Dim A: 30.18

Tube Size	Wall Thickness	A	R
1"	1.65	30.18	38.1

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 1½"
Dim A: 41.28

Tube Size	Wall Thickness	A	R
1½"	1.65	41.28	57.15

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 2"
Dim A: 58.72

Tube Size	Wall Thickness	A	R
2"	1.65	58.72	76.2

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 2½"
Dim A: 76.20

Tube Size	Wall Thickness	A	R
2½"	1.65	76.2	95.25

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 3"
Dim A: 93.70

Tube Size	Wall Thickness	A	R
3"	1.65	93.7	114.3

料號:

Type: Radius
Angle: 45 Deg
Tube Size: 4"
Dim A: 122.20

Tube Size	Wall Thickness	A	R
4"	2.11	122.2	152.4

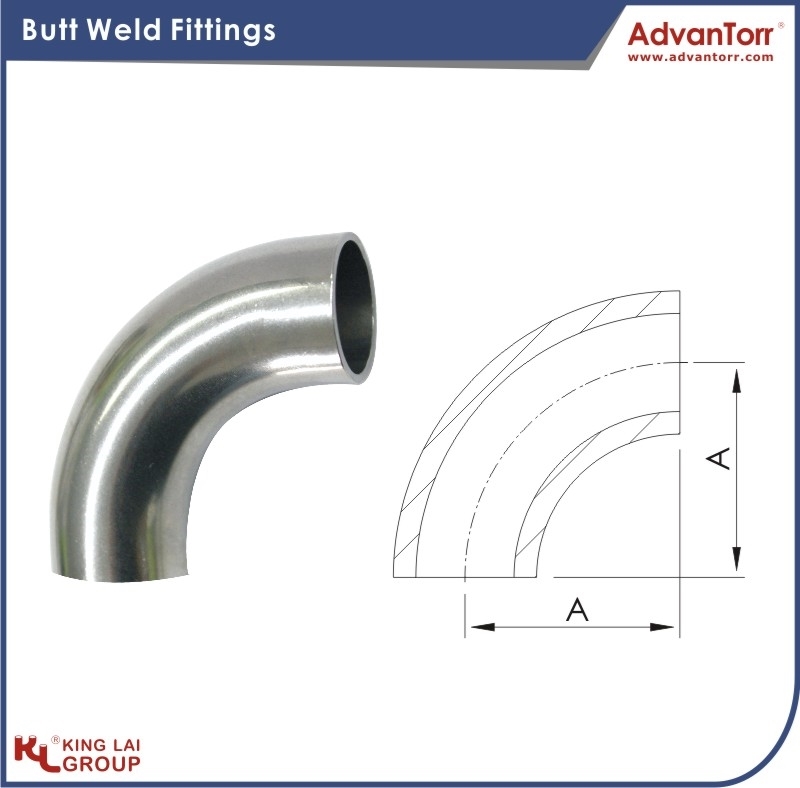

料號:

Type: Radius
Angle: 90 Deg
Tube Size: ½"
Dim A: 19.10

Tube Size	Wall Thickness	A
½"	1.65	19.1

料號:

Type: Radius
Angle: 90 Deg
Tube Size: ¾"
Dim A: 28.60

Tube Size	Wall Thickness	A
¾"	1.65	28.6

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 1"
Dim A: 38.10

Tube Size	Wall Thickness	A
1"	1.65	38.1

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 1½"
Dim A: 57.15

Tube Size	Wall Thickness	A
1½"	1.65	57.15

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 2"
Dim A: 76.20

Tube Size	Wall Thickness	A
2"	1.65	76.2

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 2½"
Dim A: 95.25

Tube Size	Wall Thickness	A
2½"	1.65	95.25

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 3"
Dim A: 114.30

Tube Size	Wall Thickness	A
3"	1.65	114.3

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 4"
Dim A: 152.40

Tube Size	Wall Thickness	A
4"	2.11	152.4

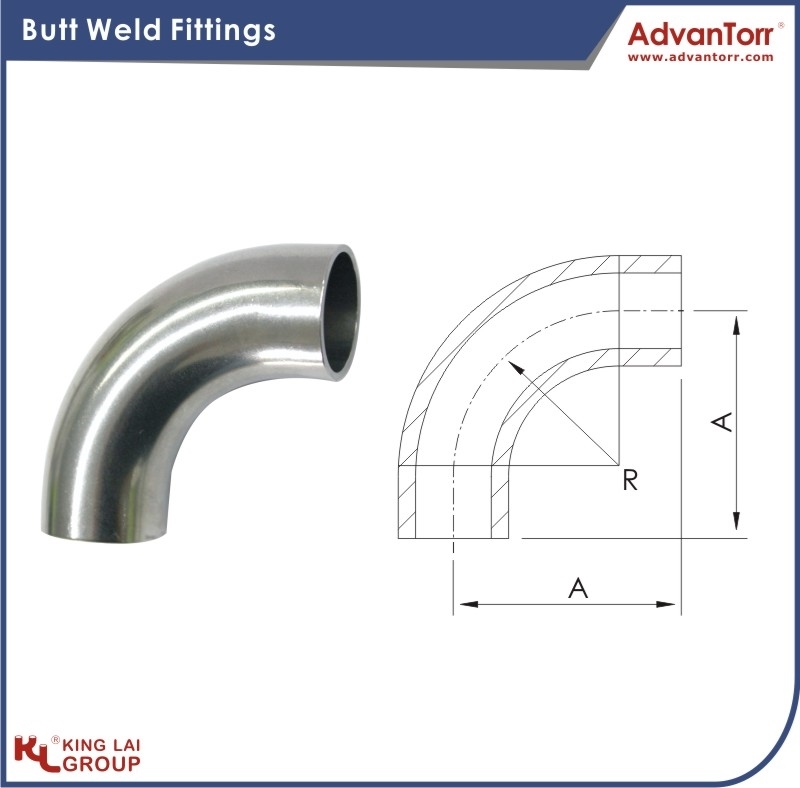

料號:

Type: Radius
Angle: 90 Deg
Tube Size: ¾"
Dim A: 36.07

Tube Size	Wall Thickness	A	R
¾"	0.89	36.07	25.4

料號:

Type: Radius
Angle: 90 Deg
Tube Size: ¾"
Dim A: 64.78

Tube Size	Wall Thickness	A	R
¾"	1.65	64.78	28.6

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 1"
Dim A: 46.23

Tube Size	Wall Thickness	A	R
1"	1.65	46.23	38.1

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 1"
Dim A: 52.40

Tube Size	Wall Thickness	A	R
1"	1.65	52.4	38.1

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 1½"
Dim A: 61.21

Tube Size	Wall Thickness	A	R
1½"	1.65	61.21	57.15

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 1½"
Dim A: 74.60

Tube Size	Wall Thickness	A	R
1½"	1.65	74.6	57.15

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 2"
Dim A: 103.12

Tube Size	Wall Thickness	A	R
2"	1.65	103.12	76.2

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 2½"
Dim A: 131.83

Tube Size	Wall Thickness	A	R
2½"	1.65	131.83	95.25

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 3"
Dim A: 160.30

Tube Size	Wall Thickness	A	R
3"	1.65	160.3	114.3

料號:

Type: Radius
Angle: 90 Deg
Tube Size: 4"
Dim A: 211.07

Tube Size	Wall Thickness	A	R
4"	2.11	211.07	152.4

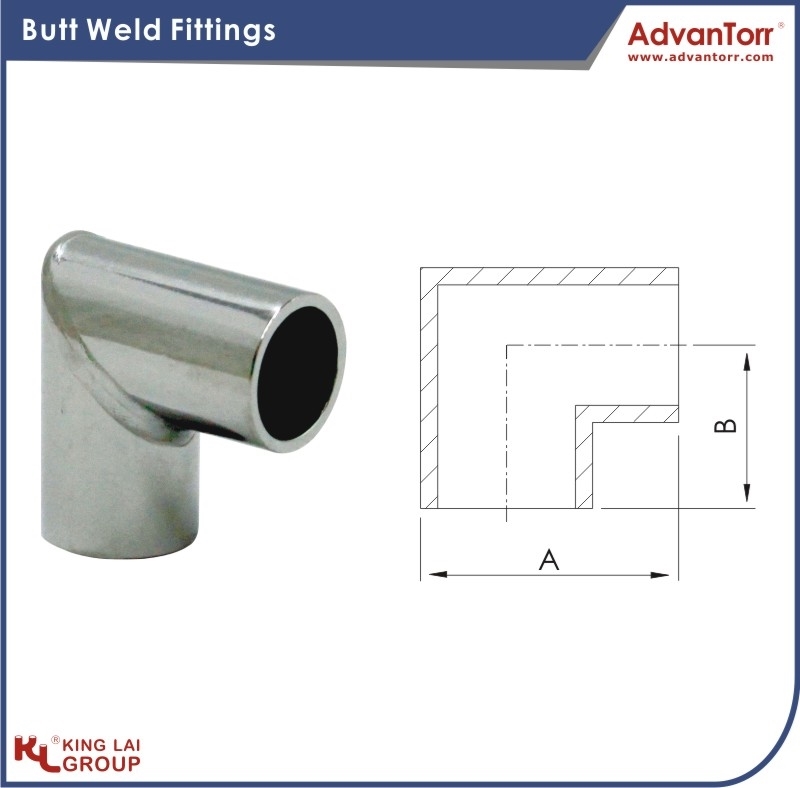

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: ¾"
Dim A: 34.93

Tube Size	Wall Thickness	A	R
¾"	1.65	34.93	25.4

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: ¾"
Dim A: 45.08

Tube Size	Wall Thickness	A	R
¾"	1.65	45.08	35.56

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: ¾"
Dim A: 45.63

Tube Size	Wall Thickness	A	R
¾"	1.65	45.63	36.1

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 1"
Dim A: 60.20

Tube Size	Wall Thickness	A	R
1"	1.65	60.2	47.5

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 1"
Dim A: 60.45

Tube Size	Wall Thickness	A	R
1"	1.65	60.45	47.75

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 1"
Dim A: 58.90

Tube Size	Wall Thickness	A	R
1"	1.65	58.9	46.2

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 1½"
Dim A: 76.20

Tube Size	Wall Thickness	A	R
1½"	1.65	76.2	57.15

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 1½"
Dim A: 80.26

Tube Size	Wall Thickness	A	R
1½"	1.65	80.26	61.21

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 2"
Dim A: 91.44

Tube Size	Wall Thickness	A	R
2"	1.65	91.44	66.04

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 2"
Dim A: 101.30

Tube Size	Wall Thickness	A	R
2"	1.65	101.3	75.9

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 2"
Dim A: 102.10

Tube Size	Wall Thickness	A	R
2"	1.65	102.1	76.7

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 2"
Dim A: 101.60

Tube Size	Wall Thickness	A	R
2"	1.65	101.6	76.2

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 2½"
Dim A: 107.95

Tube Size	Wall Thickness	A	R
2½"	1.65	107.95	76.2

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 2½"
Dim A: 127.00

Tube Size	Wall Thickness	A	R
2½"	1.65	127	95.25

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 2½"
Dim A: 108.05

Tube Size	Wall Thickness	A	R
2½"	1.65	108.05	76.3

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 3"
Dim A: 120.65

Tube Size	Wall Thickness	A	R
3"	1.65	120.65	82.55

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 3"
Dim A: 113.50

Tube Size	Wall Thickness	A	R
3"	1.65	113.5	75.4

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 4"
Dim A: 149.35

Tube Size	Wall Thickness	A	R
4"	2.11	149.35	98.55

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 4"
Dim A: 174.50

Tube Size	Wall Thickness	A	R
4"	2.11	174.5	123.7

料號:

Type: Mitre
Angle: 90 Deg
Tube Size: 6"
Dim A: 230.12

Tube Size	Wall Thickness	A	R
6"	2.11	230.12	153.92
