KF Elbows

料號 尺寸 (Dimension in mm)

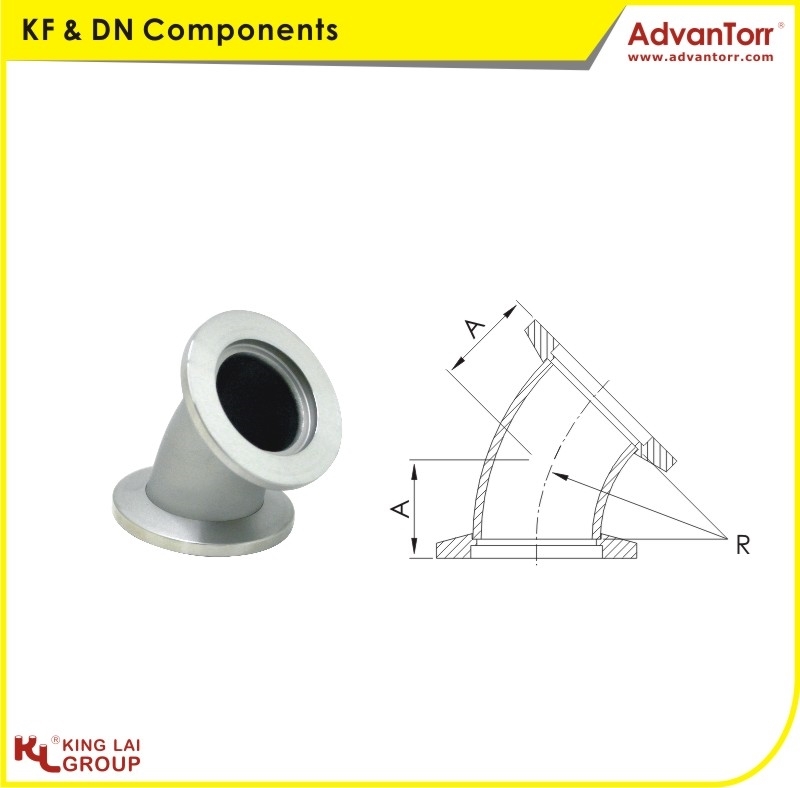

KF-45EL-16
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF16
Dim A: 15.65
AR
15.6528.6
KF-45EL-25
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF25
Dim A: 19.58
AR
19.5838.1
KF-45EL-40
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF40
Dim A: 27.47
AR
27.4757.2
KF-45EL-50
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF50
Dim A: 35.36
AR
35.3676.2

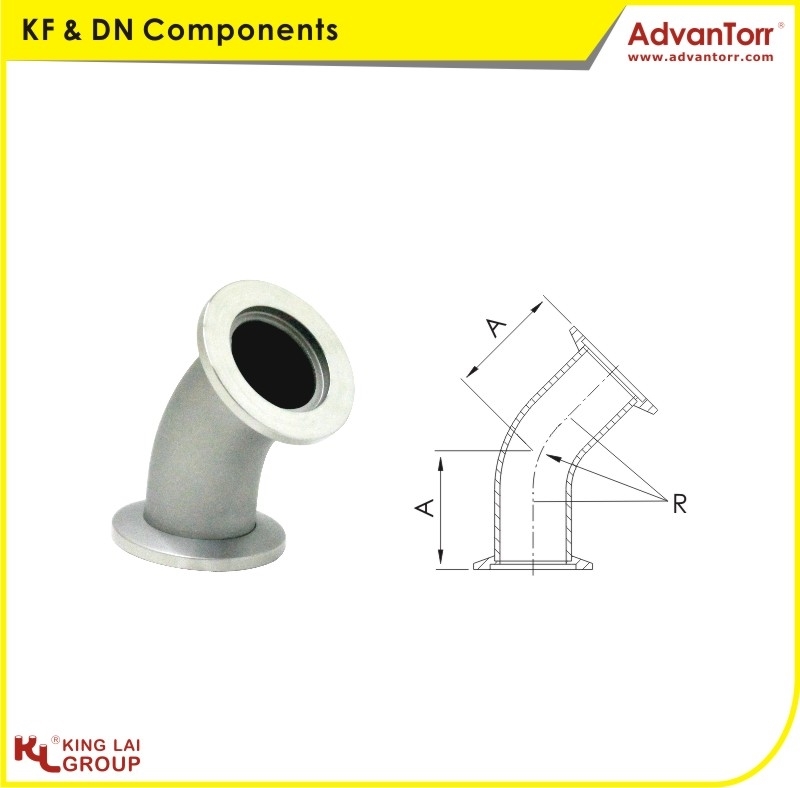

KF-45ELT-16
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF16
Dim A: 23.10
AR
23.128.6
KF-45ELT-25
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF25
Dim A: 28.45
AR
28.4538.1
KF-45ELT-25-1
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF25
Dim A: 33.88
AR
33.8838.1
KF-45ELT-40
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF40
Dim A: 42.67
AR
42.6757.2
KF-45ELT-40-1
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF40
Dim A: 45.10
AR
45.157.2
KF-45ELT-50
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF50
Dim A: 50.55
AR
50.5576.2
KF-45ELT-50-1
Bend Type: Radius
Angle: 45 Deg
Flange Size: KF50
Dim A: 62.50
AR
62.576.2

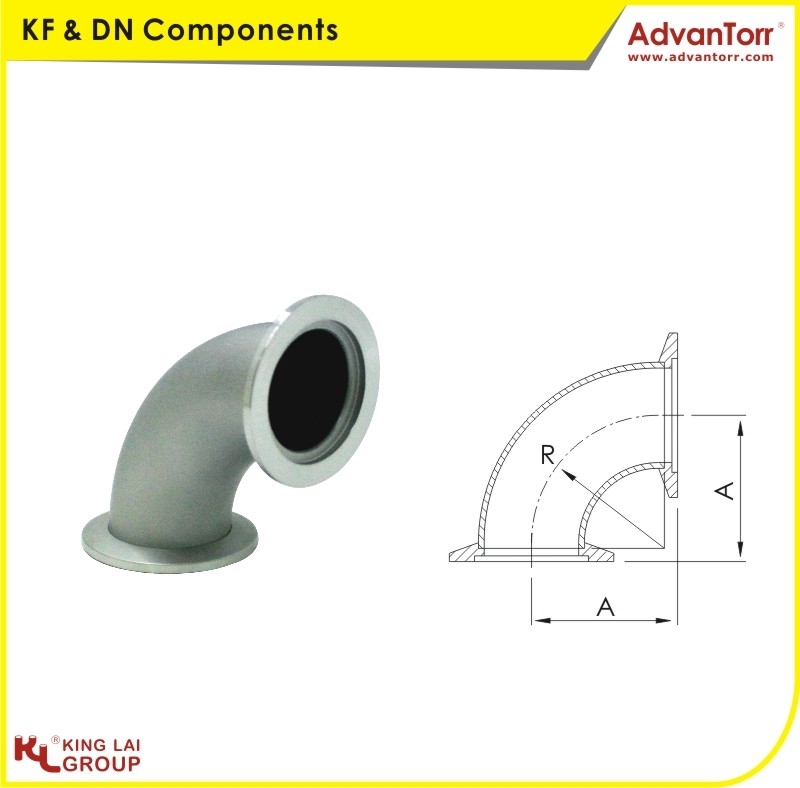

KF-90EL-10
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF10
Dim A: 31.80
AR
29.228.6
KF-90EL-16
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF16
Dim A: 29.20
AR
31.819.1
KF-90EL-25
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF25
Dim A: 41.90
AR
41.938.1
KF-90EL-40
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF40
Dim A: 61.00
AR
6157.15
KF-90EL-50
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF50
Dim A: 80.00
AR
8076.2

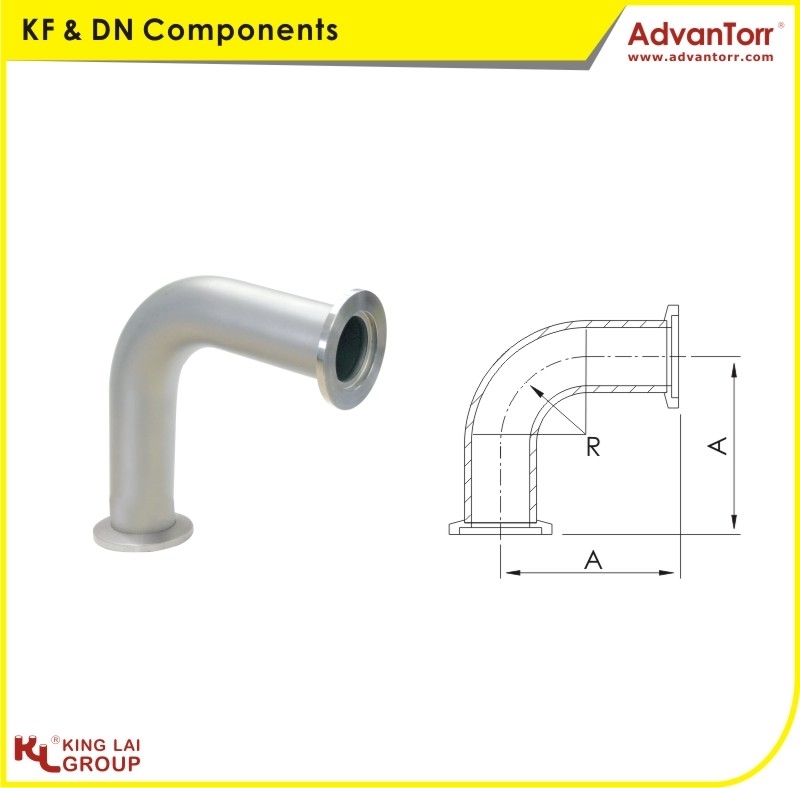

KF-90ELT-16
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF16
Dim A: 68.58
AR
68.5828.6
KF-90ELT-16-1
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF16
Dim A: 40.00
AR
4028.6
KF-90ELT-25
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF25
Dim A: 92.46
AR
92.4638.1
KF-90ELT-25-1
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF25
Dim A: 50.00
AR
5038.1
KF-90ELT-40
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF40
Dim A: 130.05
AR
130.0557.15
KF-90ELT-40-1
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF40
Dim A: 65.00
AR
6557.15
KF-90ELT-50
Bend Type: Radius
Angle: 90 Deg
Flange Size: KF50
Dim A: 139.95
AR
139.9576.2

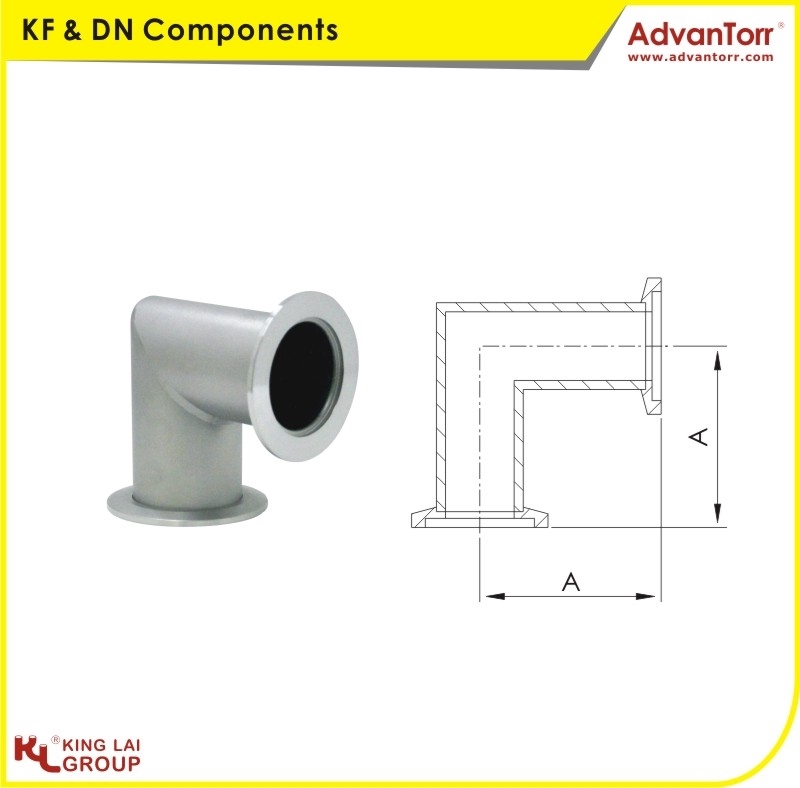

KF-MEL-16
Bend Type: Mitre
Angle: 90 Deg
Flange Size: KF16
Dim A: 29.21
A
40
KF-MEL-16-1
Bend Type: Mitre
Angle: 90 Deg
Flange Size: KF16
Dim A: 40.00
A
50
KF-MEL-25
Bend Type: Mitre
Angle: 90 Deg
Flange Size: KF25
Dim A: 50.00
A
51.56
KF-MEL-25-1
Bend Type: Mitre
Angle: 90 Deg
Flange Size: KF25
Dim A: 51.56
A
60.96
KF-MEL-40
Bend Type: Mitre
Angle: 90 Deg
Flange Size: KF40
Dim A: 60.96
A
65
KF-MEL-40-1
Bend Type: Mitre
Angle: 90 Deg
Flange Size: KF40
Dim A: 65.00
A
69.84
KF-MEL-50
Bend Type: Mitre
Angle: 90 Deg
Flange Size: KF50
Dim A: 69.84
A
80.01
KF-MEL-50-1
Bend Type: Mitre
Angle: 90 Deg
Flange Size: KF50
Dim A: 80.01
A
29.21
