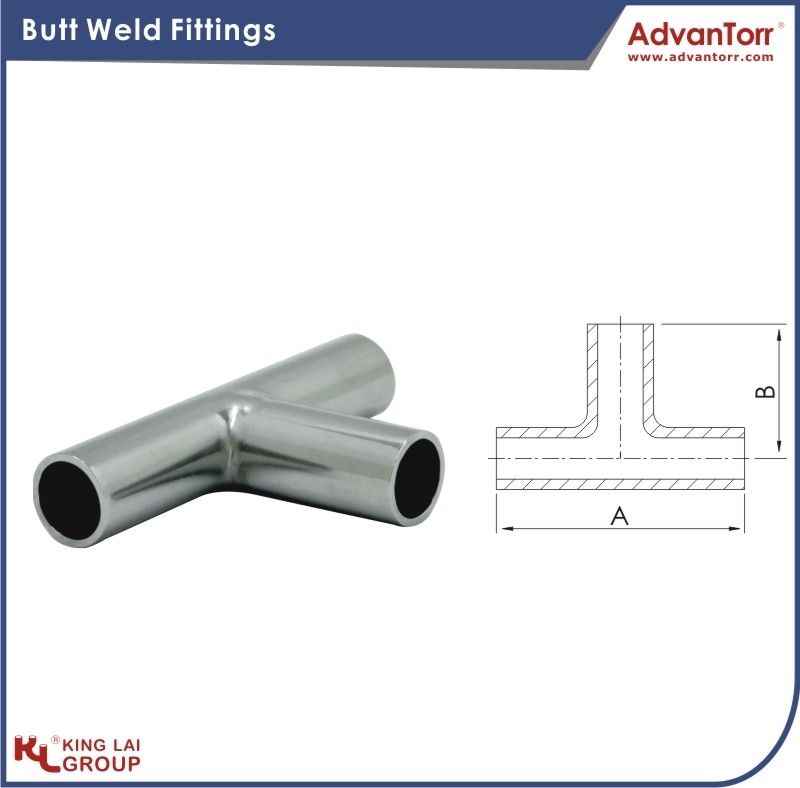

Type: Equal Main Tube Size: ½" Reducer Tube Size: n/a Dim B: 19.05
Tube 1 ODxT  A  B

½"x1.65mm  38.1  19.05


Type: Equal Main Tube Size: ¾" Reducer Tube Size: n/a Dim B: 25.40
Tube 1 ODxT  A  B

¾"x1.65mm  50.8  25.4


Type: Equal Main Tube Size: ¾" Reducer Tube Size: n/a Dim B: 36.20
Tube 1 ODxT  A  B

¾"x1.65mm  72.4  36.2


Type: Equal Main Tube Size: ¾" Reducer Tube Size: n/a Dim B: 47.60
Tube 1 ODxT  A  B

¾"x1.65mm  95.2  47.6


Type: Equal Main Tube Size: 1" Reducer Tube Size: n/a Dim B: 45.70
Tube 1 ODxT  A  B

1"x1.65mm  91.4  45.7


Type: Equal Main Tube Size: 1" Reducer Tube Size: n/a Dim B: 47.60
Tube 1 ODxT  A  B

1"x1.65mm  95.2  47.6


Type: Equal Main Tube Size: 1½" Reducer Tube Size: n/a Dim B: 57.20
Tube 1 ODxT  A  B

1½"x1.65mm  114.4  57.2


Type: Equal Main Tube Size: 1½" Reducer Tube Size: n/a Dim B: 61.21
Tube 1 ODxT  A  B

1½"x1.65mm  122.42  61.21


Type: Equal Main Tube Size: 2" Reducer Tube Size: n/a Dim B: 66.29
Tube 1 ODxT  A  B

2"x1.65mm  132.58  66.29


Type: Equal Main Tube Size: 2" Reducer Tube Size: n/a Dim B: 76.20
Tube 1 ODxT  A  B

2"x1.65mm  152.4  76.2


Type: Equal Main Tube Size: 2½" Reducer Tube Size: n/a Dim B: 76.20
Tube 1 ODxT  A  B

2½"x1.65mm  152.4  76.2


Type: Equal Main Tube Size: 2½" Reducer Tube Size: n/a Dim B: 81.70
Tube 1 ODxT  A  B

2½"x1.65mm  163.4  81.7


Type: Equal Main Tube Size: 2½" Reducer Tube Size: n/a Dim B: 95.12
Tube 1 ODxT  A  B

2½"x1.65mm  190.24  95.12


Type: Equal Main Tube Size: 3" Reducer Tube Size: n/a Dim B: 82.60
Tube 1 ODxT  A  B

3"x1.65mm  165.2  82.6


Type: Equal Main Tube Size: 3" Reducer Tube Size: n/a Dim B: 91.70
Tube 1 ODxT  A  B

3"x1.65mm  183.4  91.7


Type: Equal Main Tube Size: 4" Reducer Tube Size: n/a Dim B: 98.40
Tube 1 ODxT  A  B

4"x2.11mm  196.8  98.4


Type: Equal Main Tube Size: 4" Reducer Tube Size: n/a Dim B: 101.70
Tube 1 ODxT  A  B

4"x2.11mm  203.4  101.7


Type: Equal Main Tube Size: 4" Reducer Tube Size: n/a Dim B: 123.78
Tube 1 ODxT  A  B

4"x2.11mm  247.56  123.78


Type: Equal Main Tube Size: 6" Reducer Tube Size: n/a Dim B: 127.00
Tube 1 ODxT  A  B

6"x2.77mm  254  127


Type: Equal Main Tube Size: 6" Reducer Tube Size: n/a Dim B: 153.90
Tube 1 ODxT  A  B

6"x2.11mm  307.8  153.9


Type: Reducing Main Tube Size: 1" Reducer Tube Size: ½" Dim B: 25.40
Tube 1 ODxT  Tube2 OD*T  A  B

1"x1.65mm  ½"x1.65mm  95.5  25.4


Type: Reducing Main Tube Size: 1" Reducer Tube Size: ¾" Dim B: 28.45
Tube 1 ODxT  Tube2 OD*T  A  B

1"x1.65mm  ¾"x1.65mm  95.5  28.45


Type: Reducing Main Tube Size: 1½" Reducer Tube Size: ½" Dim B: 31.75
Tube 1 ODxT  Tube2 OD*T  A  B

1½"x1.65mm  ½"x1.65mm  114.3  31.75


Type: Reducing Main Tube Size: 1½" Reducer Tube Size: ¾" Dim B: 35.05
Tube 1 ODxT  Tube2 OD*T  A  B

1½"x1.65mm  ¾"x0.89mm  114.3  35.05


Type: Reducing Main Tube Size: 1½" Reducer Tube Size: 1" Dim B: 54.10
Tube 1 ODxT  Tube2 OD*T  A  B

1½"x1.65mm  1"x1.65mm  114.3  54.1


Type: Reducing Main Tube Size: 2" Reducer Tube Size: ½" Dim B: 38.10
Tube 1 ODxT  Tube2 OD*T  A  B

2"x1.65mm  ½"x1.65mm  152.4  38.1


Type: Reducing Main Tube Size: 2" Reducer Tube Size: ¾" Dim B: 41.40
Tube 1 ODxT  Tube2 OD*T  A  B

2"x1.65mm  ¾"x1.65mm  152.4  41.4


Type: Reducing Main Tube Size: 2" Reducer Tube Size: 1" Dim B: 60.30
Tube 1 ODxT  Tube2 OD*T  A  B

2"x1.65mm  1"x1.65mm  152.4  60.3


Type: Reducing Main Tube Size: 2" Reducer Tube Size: 1½" Dim B: 63.50
Tube 1 ODxT  Tube2 OD*T  A  B

2"x1.65mm  1½"x1.65mm  152.4  63.5


Type: Reducing Main Tube Size: 2½" Reducer Tube Size: 1½" Dim B: 69.85
Tube 1 ODxT  Tube2 OD*T  A  B

2½"x1.65mm  1½"x1.65mm  152.4  69.85


Type: Reducing Main Tube Size: 2½" Reducer Tube Size: 2" Dim B: 82.55
Tube 1 ODxT  Tube2 OD*T  A  B

2½"x1.65mm  2"x1.65mm  152.4  82.55


Type: Reducing Main Tube Size: 3" Reducer Tube Size: 1½" Dim B: 76.20
Tube 1 ODxT  Tube2 OD*T  A  B

3"x1.65mm  1½"x1.65mm  165.1  76.2


Type: Reducing Main Tube Size: 3" Reducer Tube Size: 2" Dim B: 88.90
Tube 1 ODxT  Tube2 OD*T  A  B

3"x1.65mm  2"x1.65mm  165.1  88.9


Type: Reducing Main Tube Size: 3" Reducer Tube Size: 2½" Dim B: 82.55
Tube 1 ODxT  Tube2 OD*T  A  B

3"x1.65mm  2½"x1.65mm  165.1  82.55


Type: Reducing Main Tube Size: 4" Reducer Tube Size: 1½" Dim B: 88.90
Tube 1 ODxT  Tube2 OD*T  A  B

4"x2.11mm  1½"x1.65mm  197.1  88.9


Type: Reducing Main Tube Size: 4" Reducer Tube Size: 2" Dim B: 101.60
Tube 1 ODxT  Tube2 OD*T  A  B

4"x2.11mm  2"x1.65mm  197.1  101.6


Type: Reducing Main Tube Size: 4" Reducer Tube Size: 2½" Dim B: 95.25
Tube 1 ODxT  Tube2 OD*T  A  B

4"x2.11mm  2½"x1.65mm  197.1  95.25


Type: Reducing Main Tube Size: 4" Reducer Tube Size: 3" Dim B: 95.25
Tube 1 ODxT  Tube2 OD*T  A  B

4"x2.11mm  3"x1.65mm  197.1  95.25


Type: Reducing Main Tube Size: 6" Reducer Tube Size: 1½" Dim B: 114.30
Tube 1 ODxT  Tube2 OD*T  A  B

6"x2.11mm  1½"x1.65mm  254  114.3


Type: Reducing Main Tube Size: 6" Reducer Tube Size: 2" Dim B: 127.00
Tube 1 ODxT  Tube2 OD*T  A  B

6"x2.11mm  2"x1.65mm  254  127


Type: Reducing Main Tube Size: 6" Reducer Tube Size: 2½" Dim B: 120.65
Tube 1 ODxT  Tube2 OD*T  A  B

6"x2.11mm  2½"x1.65mm  254  120.65


Type: Reducing Main Tube Size: 6" Reducer Tube Size: 3" Dim B: 120.65
Tube 1 ODxT  Tube2 OD*T  A  B

6"x2.11mm  3"x1.65mm  254  120.65


Type: Reducing Main Tube Size: 6" Reducer Tube Size: 4" Dim B: 123.95
Tube 1 ODxT  Tube2 OD*T  A  B

6"x2.11mm  4"x2.11mm  254  123.95
