DN Elbows

料號 尺寸 (Dimension in mm)

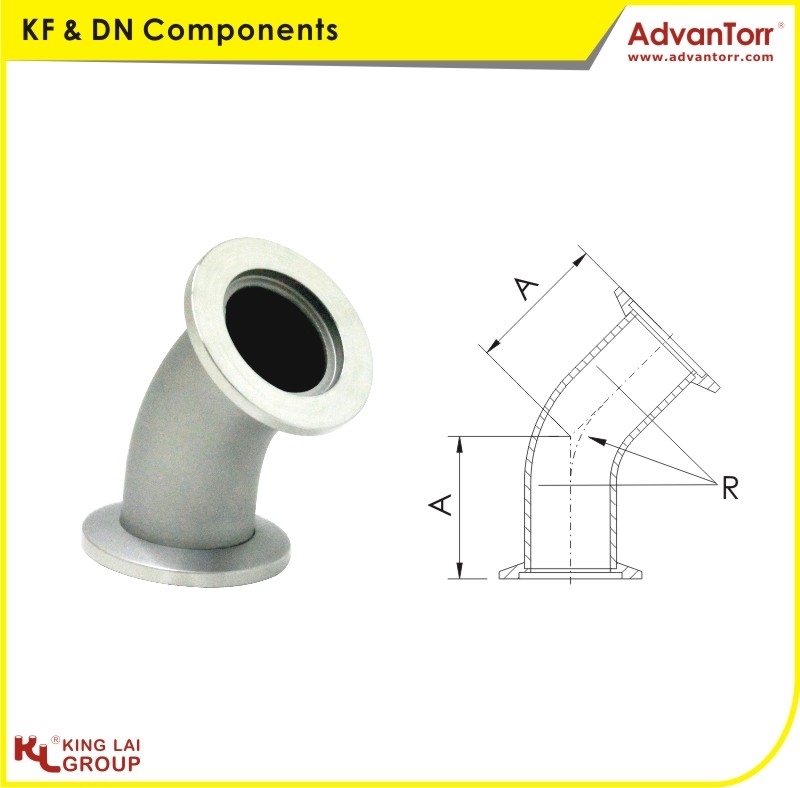

DN-45ELT-10
Type: Radius
Angle: 45 Deg
Flange Size: DN10
Material: SS304L
ARTube Size
3026.514.0 X 2.0mmt
DN-45ELT-16
Type: Radius
Angle: 45 Deg
Flange Size: DN16
Material: SS304L
ARTube Size
263720.0 X 1.5mmt
DN-45ELT-25
Type: Radius
Angle: 45 Deg
Flange Size: DN25
Material: SS304L
ARTube Size
324228.0 X 1.5mmt
DN-45ELT-40
Type: Radius
Angle: 45 Deg
Flange Size: DN40
Material: SS304L
ARTube Size
406244.5 X 2.0mmt
DN-45ELT-50
Type: Radius
Angle: 45 Deg
Flange Size: DN50
Material: SS304L
ARTube Size
5166.554.0 X 2.0mmt

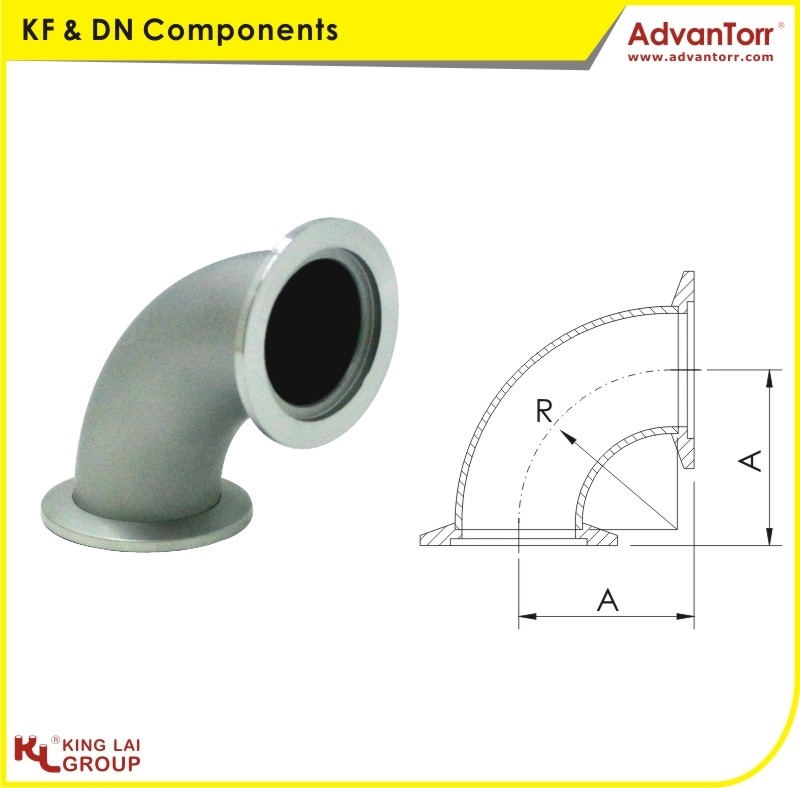

DN-90EL-10
Type: Radius
Angle: 90 Deg
Flange Size: DN10
Material: SS304L
ARTube Size
3026.514.0 x 2.0mmt
DN-90EL-16
Type: Radius
Angle: 90 Deg
Flange Size: DN16
Material: SS304L
ARTube Size
403720.0 x 1.5mmt
DN-90EL-25
Type: Radius
Angle: 90 Deg
Flange Size: DN25
Material: SS304L
ARTube Size
504228.0 x 1.5mmt
DN-90EL-40
Type: Radius
Angle: 90 Deg
Flange Size: DN40
Material: SS304L
ARTube Size
656244.5 x 2.0mmt
DN-90EL-50
Type: Radius
Angle: 90 Deg
Flange Size: DN50
Material: SS304L
ARTube Size
7066.554.0 x 2.0mmt

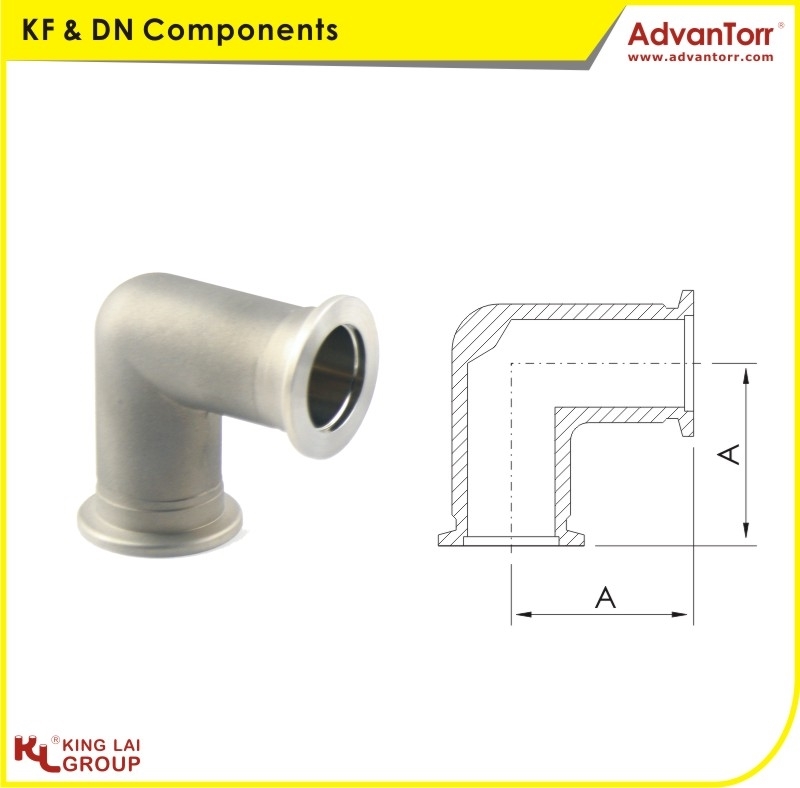

DN-90ELMA-16-AL
Type: Mitre
Angle: 90 Deg
Flange Size: DN16
Material: Aluminum
A
40
DN-90ELMA-25-AL
Type: Mitre
Angle: 90 Deg
Flange Size: DN25
Material: Aluminum
A
50
DN-90ELMA-40-AL
Type: Mitre
Angle: 90 Deg
Flange Size: DN40
Material: Aluminum
A
65
