ISO Centering Rings & O-rings

Flange Size
Mesh Material
Outer Ring Material
O-ring Material
Centering Ring Material

料號尺寸 (Dimension in mm)

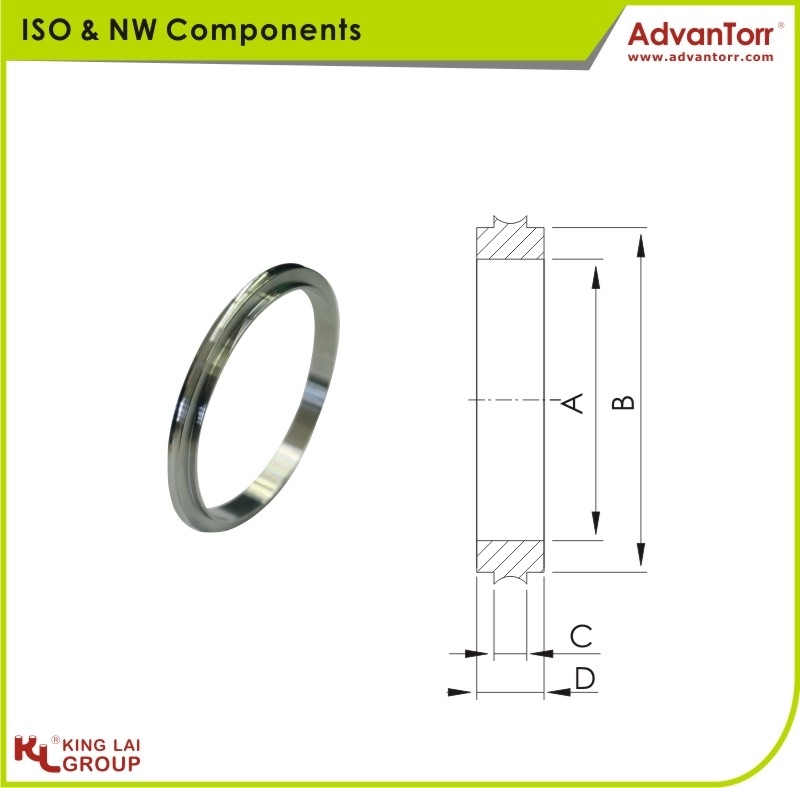

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: SS304

A	B	C	D
68	70	3.9	8

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: SS304

A	B	C	D
81	83	3.9	8

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: SS304

A	B	C	D
100	102	3.9	8

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: SS304

A	B	C	D
151	153	3.9	8

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: SS304

A	B	C	D
210	213	3.9	8

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: SS304

A	B	C	D
256	261	3.9	8

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: SS304

A	B	C	D
311.15	316.48	5.5	14

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: Aluminum

A	B	C	D
68	70	3.9	8

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: Aluminum

A	B	C	D
81	83	3.9	8

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: Aluminum

A	B	C	D
100	102	3.9	8

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: Aluminum

A	B	C	D
151	153	3.9	8

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: Aluminum

A	B	C	D
210	213	3.9	8

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: Aluminum

A	B	C	D
256	261	3.9	8

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: n/a
Centering Ring Material: Aluminum

A	B	C	D
311.15	316.48	5.5	14

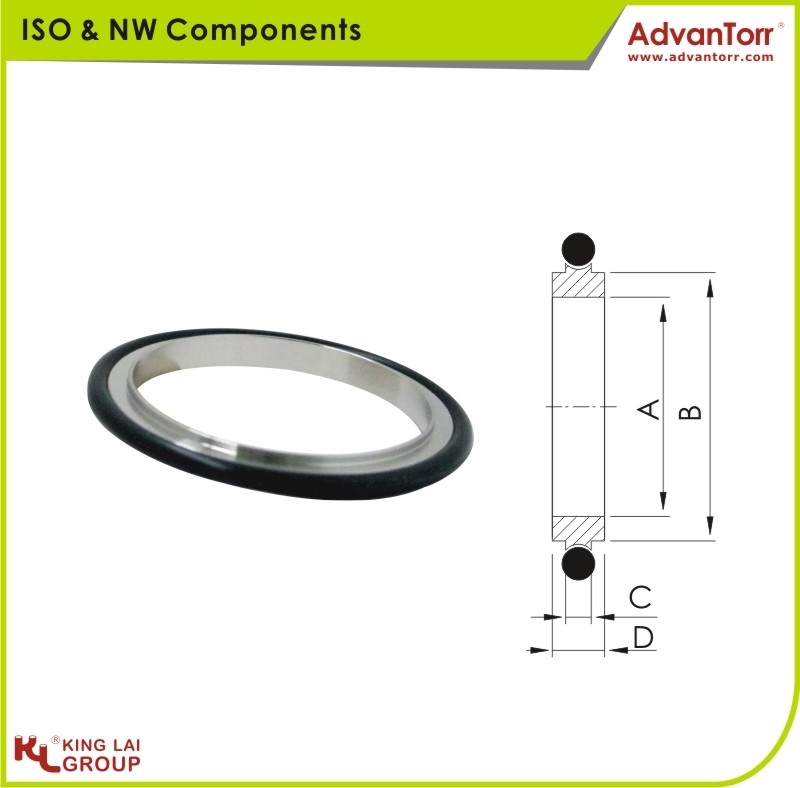

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
68	70	3.9	8

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
81	83	3.9	8

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
100	102	3.9	8

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
151	153	3.9	8

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
210	213	3.9	8

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
256	261	3.9	8

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
311.15	316.48	5.5	14

料號:

Flange Size: ISO400
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
392.93	398.02	5.5	14

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: SS304

A	B	C	D
68	70	3.9	8

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: SS304

A	B	C	D
81	83	3.9	8

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: SS304

A	B	C	D
100	102	3.9	8

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: SS304

A	B	C	D
151	153	3.9	8

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: SS304

A	B	C	D
210	213	3.9	8

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: SS304

A	B	C	D
256	261	3.9	8

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: SS304

A	B	C	D
311.15	316.48	5.5	14

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: Aluminum

A	B	C	D
68	70	3.9	8

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: Aluminum

A	B	C	D
81	83	3.9	8

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: Aluminum

A	B	C	D
100	102	3.9	8

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: Aluminum

A	B	C	D
151	153	3.9	8

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: Aluminum

A	B	C	D
210	213	3.9	8

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: Aluminum

A	B	C	D
256	261	3.9	8

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: Aluminum

A	B	C	D
311.15	316.48	5.5	14

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: Aluminum

A	B	C	D
68	70	3.9	8

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: Aluminum

A	B	C	D
81	83	3.9	8

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: Aluminum

A	B	C	D
100	102	3.9	8

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: Aluminum

A	B	C	D
151	153	3.9	8

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: Aluminum

A	B	C	D
210	213	3.9	8

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: Aluminum

A	B	C	D
256	261	3.9	8

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: Aluminum

A	B	C	D
311.15	316.48	5.5	14

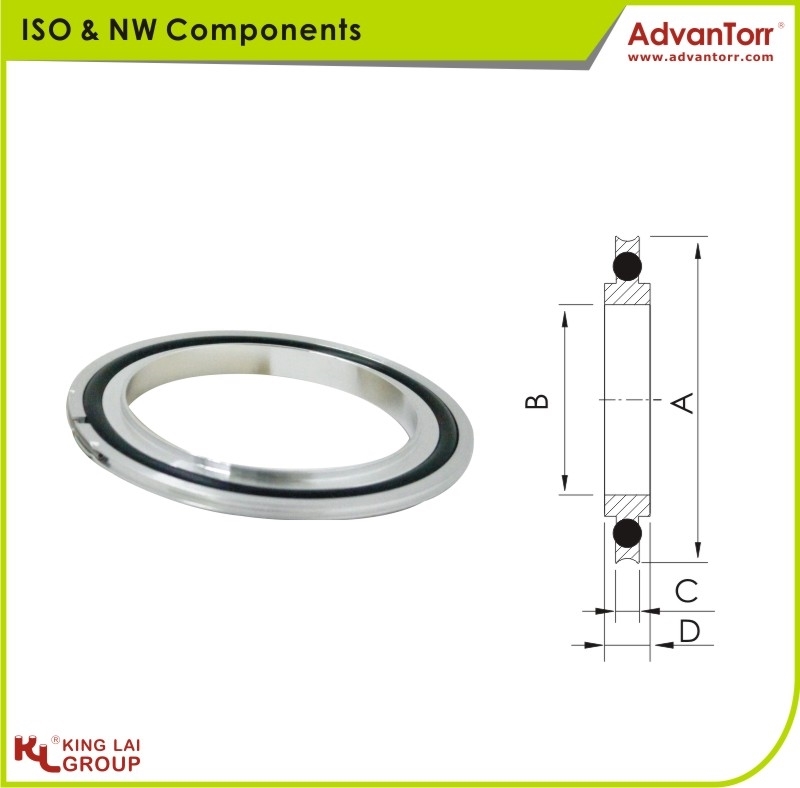

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
94	68	3.75	8

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
109	81	3.75	8

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
128	100	3.75	8

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
179	151	3.75	8

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
239	210	3.75	8

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
287	256	3.75	8

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
346.33	311.15	5.59	14

料號:

Flange Size: ISO400
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: FKM
Centering Ring Material: SS304

A	B	C	D
428.8	392.93	5.59	14

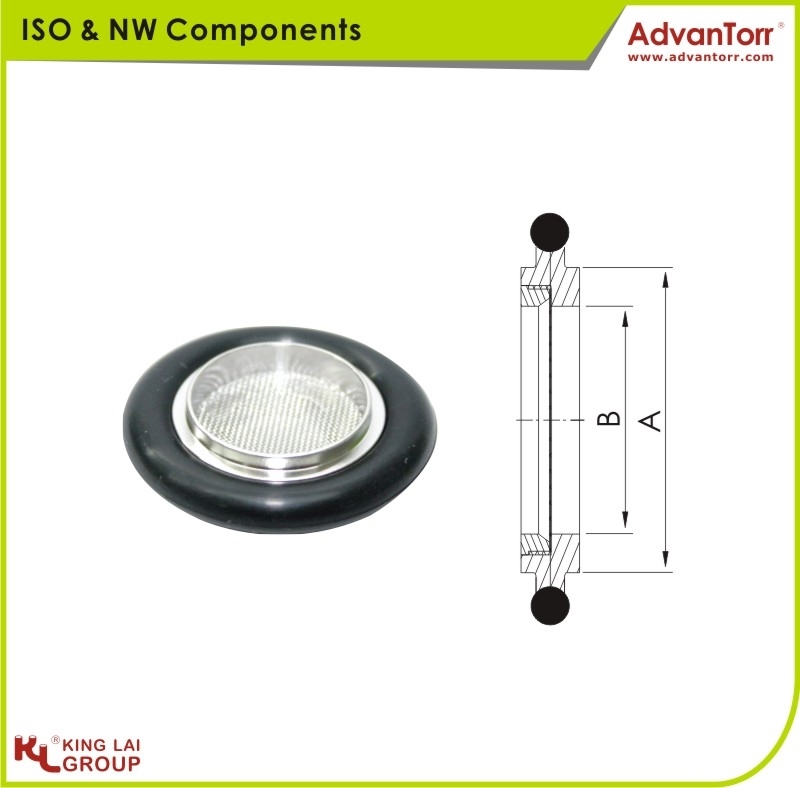

料號:

Flange Size: ISO63
Mesh Material: SS304
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B
69.6	62

料號:

Flange Size: ISO100
Mesh Material: SS304
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B
102	92

料號:

Flange Size: ISO160
Mesh Material: SS304
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: SS304

A	B
153	139.7

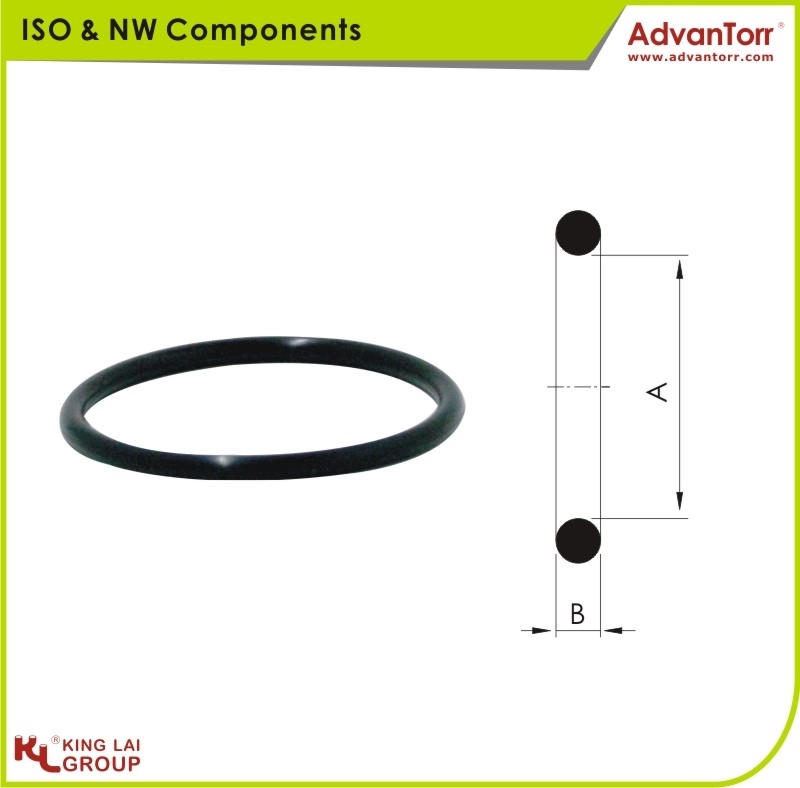

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: n/a

A	B
72.39	5.33

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: n/a

A	B
85.09	5.33

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: n/a

A	B
104.14	5.33

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: n/a

A	B
151.77	5.33

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: n/a

A	B
215.27	5.33

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: n/a

A	B
266.07	5.33

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: n/a

A	B
316.87	6.99

料號:

Flange Size: ISO400
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: FKM
Centering Ring Material: n/a

A	B
393.07	6.99

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: n/a

A	B
72.39	5.33

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: n/a

A	B
85.09	5.33

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: n/a

A	B
104.14	5.33

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: n/a

A	B
151.77	5.33

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: n/a

A	B
215.27	5.33

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: n/a

A	B
266.07	5.33

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: n/a
O-ring Material: NBR
Centering Ring Material: n/a

A	B
316.87	6.99

料號:

Flange Size: ISO63
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: n/a
Centering Ring Material: n/a

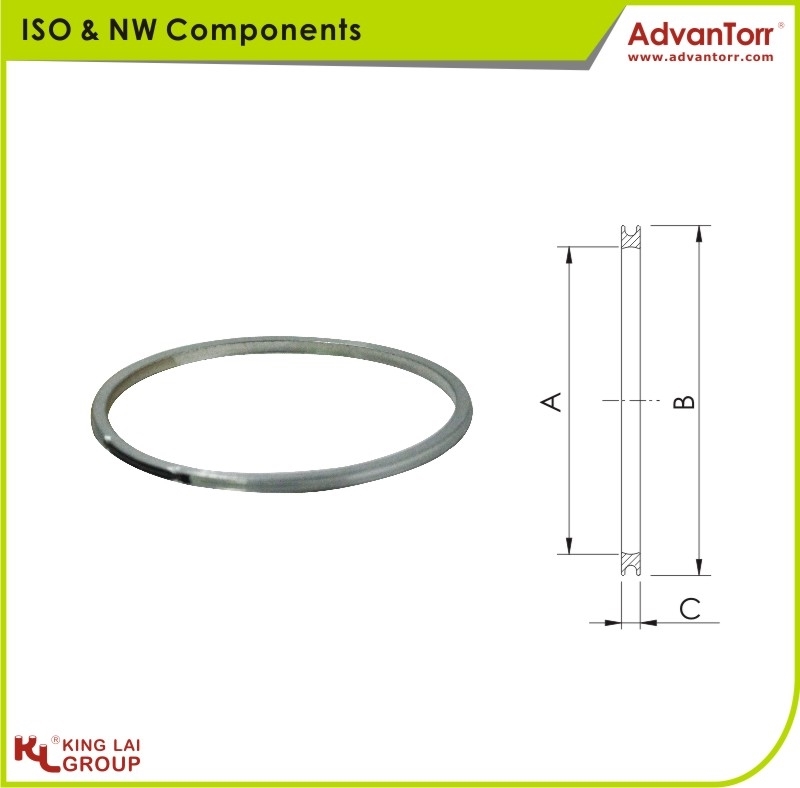

A	B	C
88.8	98	5.59

料號:

Flange Size: ISO80
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: n/a
Centering Ring Material: n/a

A	B	C
101.8	111	3.75

料號:

Flange Size: ISO100
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: n/a
Centering Ring Material: n/a

A	B	C
120.8	130	3.75

料號:

Flange Size: ISO160
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: n/a
Centering Ring Material: n/a

A	B	C
170.1	179.3	3.75

料號:

Flange Size: ISO200
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: n/a
Centering Ring Material: n/a

A	B	C
232.1	241.3	3.75

料號:

Flange Size: ISO250
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: n/a
Centering Ring Material: n/a

A	B	C
282.1	291.3	3.75

料號:

Flange Size: ISO320
Mesh Material: n/a
Outer Ring Material: Aluminum
O-ring Material: n/a
Centering Ring Material: n/a

A	B	C
335.5	344	3.75
