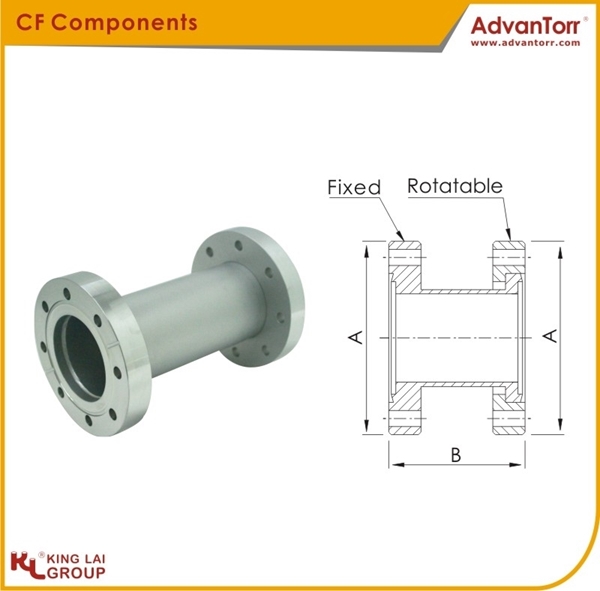

CF Full Nipples

料號 尺寸 (Dimension in mm)
CF-FN-133
Flange Size: CF1.33" (DN16)
AB
1.33"76.2
CF-FN-212
Flange Size: CF2.12" (DN25)
AB
2.12"104.14
CF-FN-275
Flange Size: CF2.75" (DN40)
AB
2.75"124.97
CF-FN-338
Flange Size: CF3.38" (DN50)
AB
3.38"163.58
CF-FN-450
Flange Size: CF4.50" (DN63)
AB
4.50"171.7
CF-FN-462
Flange Size: CF4.62" (DN80)
AB
4.62"179.32
CF-FN-600
Flange Size: CF6.00" (DN100)
AB
6.00"219.46
CF-FN-675
Flange Size: CF6.75" (DN130)
AB
6.75"214.9
CF-FN-800
Flange Size: CF8.00" (DN160)
AB
8.00"200
CF-FN-1000
Flange Size: CF10.00" (DN200)
AB
10.00"406.4
