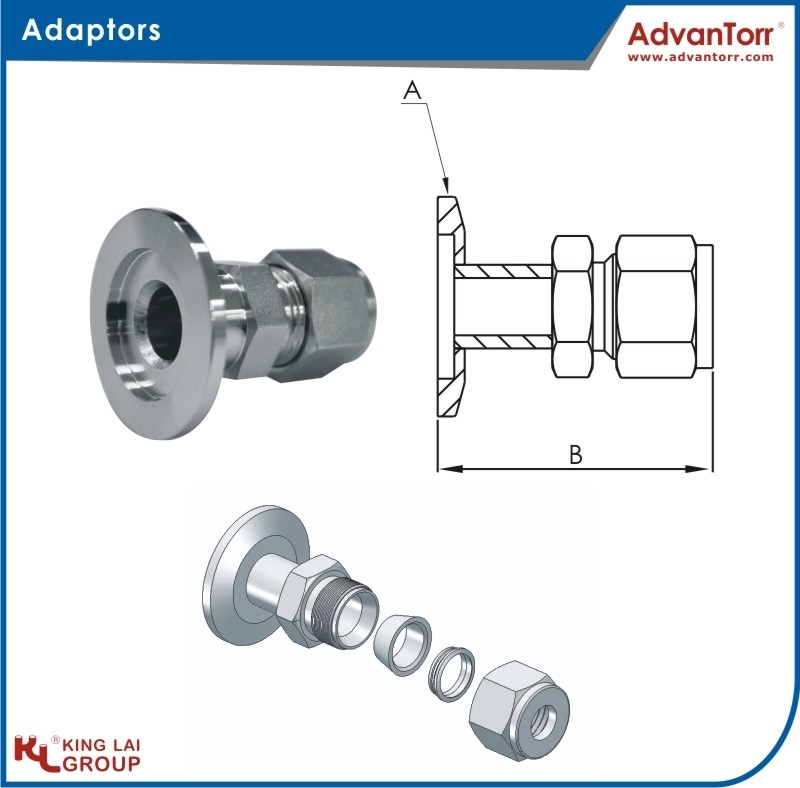

Flange to Two-Ferrule Adaptors

料號 尺寸 (Dimension in mm)
AD-SWG-KF10x025
Flange Size: KF10
Fitting Size: ¼"
SizeAB
KF10-¼"3033
AD-SWG-KF16x025
Flange Size: KF16
Fitting Size: ¼"
SizeAB
KF16-¼"3039.4
AD-SWG-KF16x038
Flange Size: KF16
Fitting Size: ⅜"
SizeAB
KF16-⅜"3041.4
AD-SWG-KF16x050
Flange Size: KF16
Fitting Size: ½"
SizeAB
KF16-½"3050
AD-SWG-KF25x025
Flange Size: KF25
Fitting Size: ¼"
SizeAB
KF25-¼"4039.4
AD-SWG-KF25x038
Flange Size: KF25
Fitting Size: ⅜"
SizeAB
KF25-⅜"4041.4
AD-SWG-KF25x050
Flange Size: KF25
Fitting Size: ½"
SizeAB
KF25-½"4050
AD-SWG-KF25x075
Flange Size: KF25
Fitting Size: ¾"
SizeAB
KF25-¾"4052.8
AD-SWG-KF25x100
Flange Size: KF25
Fitting Size: 1"
SizeAB
KF25-1"4065.7
AD-SWG-KF40x025
Flange Size: KF40
Fitting Size: ¼"
SizeAB
KF40-¼"5539.4
AD-SWG-KF40x038
Flange Size: KF40
Fitting Size: ⅜"
SizeAB
KF40-⅜"5541.4
AD-SWG-KF40x050
Flange Size: KF40
Fitting Size: ½"
SizeAB
KF40-½"5550
AD-SWG-KF40x075
Flange Size: KF40
Fitting Size: ¾"
SizeAB
KF40-¾"5552.8
AD-SWG-KF40x100
Flange Size: KF40
Fitting Size: 1"
SizeAB
KF40-1"5565.7
AD-SWG-KF50x025
Flange Size: KF50
Fitting Size: ¼"
SizeAB
KF50-¼"7539.4
AD-SWG-KF50x038
Flange Size: KF50
Fitting Size: ⅜"
SizeAB
KF50-⅜"7541.4
AD-SWG-KF50x050
Flange Size: KF50
Fitting Size: ½"
SizeAB
KF50-½"7550
AD-SWG-KF50x075
Flange Size: KF50
Fitting Size: ¾"
SizeAB
KF50-¾"7552.8
AD-SWG-KF50x100
Flange Size: KF50
Fitting Size: 1"
SizeAB
KF50-1"7565.7
AD-SWG-CF133x050
Flange Size: CF1.33"(DN16)
Fitting Size: ½"
SizeAB
CF1.33"(DN16)-½"CF1.3343.18
AD-SWG-CF133x025
Flange Size: CF1.33"(DN16)
Fitting Size: ¼"
SizeAB
CF1.33"(DN16)-¼"CF1.3334.8
AD-SWG-CF133x038
Flange Size: CF1.33"(DN16)
Fitting Size: ⅜"
SizeAB
CF1.33"(DN16)-⅜"CF1.3342.05
AD-SWG-CF275x100
Flange Size: CF2.75"(DN40)
Fitting Size: 1"
SizeAB
CF2.75"(DN40)-1"CF2.7567.51
AD-SWG-CF275x050
Flange Size: CF2.75"(DN40)
Fitting Size: ½"
SizeAB
CF2.75"(DN40)-½"CF2.7546.41
AD-SWG-CF275x025
Flange Size: CF2.75"(DN40)
Fitting Size: ¼"
SizeAB
CF2.75"(DN40)-¼"CF2.7538.81
AD-SWG-CF275x075
Flange Size: CF2.75"(DN40)
Fitting Size: ¾"
SizeAB
CF2.75"(DN40)-¾"CF2.7555.81
AD-SWG-CF275x038
Flange Size: CF2.75"(DN40)
Fitting Size: ⅜"
SizeAB
CF2.75"(DN40)-⅜"CF2.7542.91
