KF Tees

料號 尺寸 (Dimension in mm)

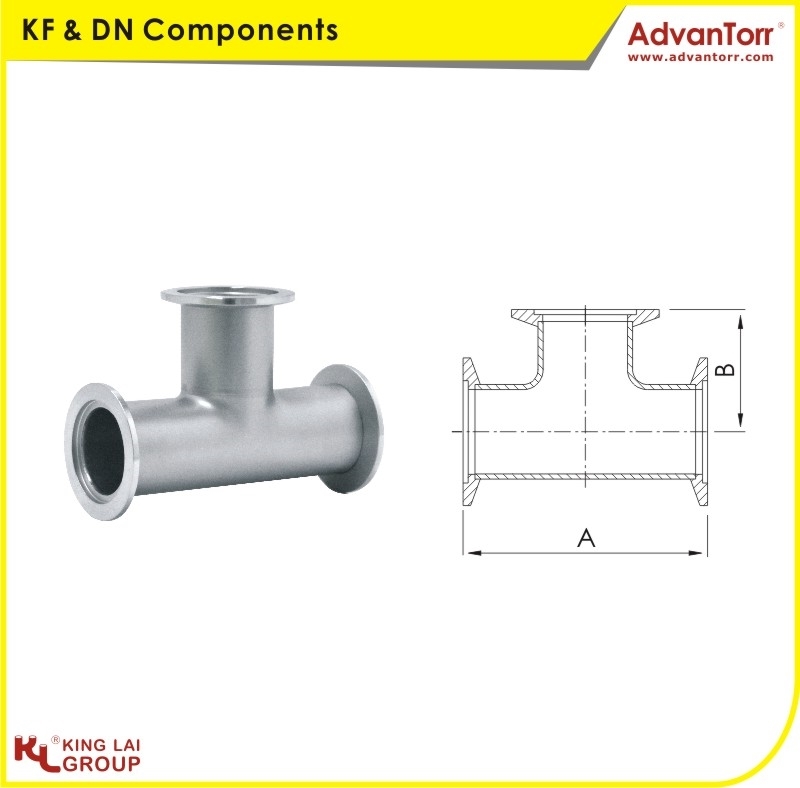

KF-ET-10
Type: Equal
Main Flange Size: KF10
Reducer Flange Size: n/a
Dim B: 31.75
AB
63.531.75
KF-ET-16
Type: Equal
Main Flange Size: KF16
Reducer Flange Size: n/a
Dim B: 29.20
AB
58.429.2
KF-ET-16-1
Type: Equal
Main Flange Size: KF16
Reducer Flange Size: n/a
Dim B: 40.00
AB
8040
KF-ET-25
Type: Equal
Main Flange Size: KF25
Reducer Flange Size: n/a
Dim B: 50.00
AB
10050
KF-ET-25-1
Type: Equal
Main Flange Size: KF25
Reducer Flange Size: n/a
Dim B: 51.40
AB
102.851.4
KF-ET-40
Type: Equal
Main Flange Size: KF40
Reducer Flange Size: n/a
Dim B: 61.00
AB
12261
KF-ET-40-1
Type: Equal
Main Flange Size: KF40
Reducer Flange Size: n/a
Dim B: 65.00
AB
13065
KF-ET-50
Type: Equal
Main Flange Size: KF50
Reducer Flange Size: n/a
Dim B: 70.00
AB
14070
KF-ET-50-1
Type: Equal
Main Flange Size: KF50
Reducer Flange Size: n/a
Dim B: 80.00
AB
16080

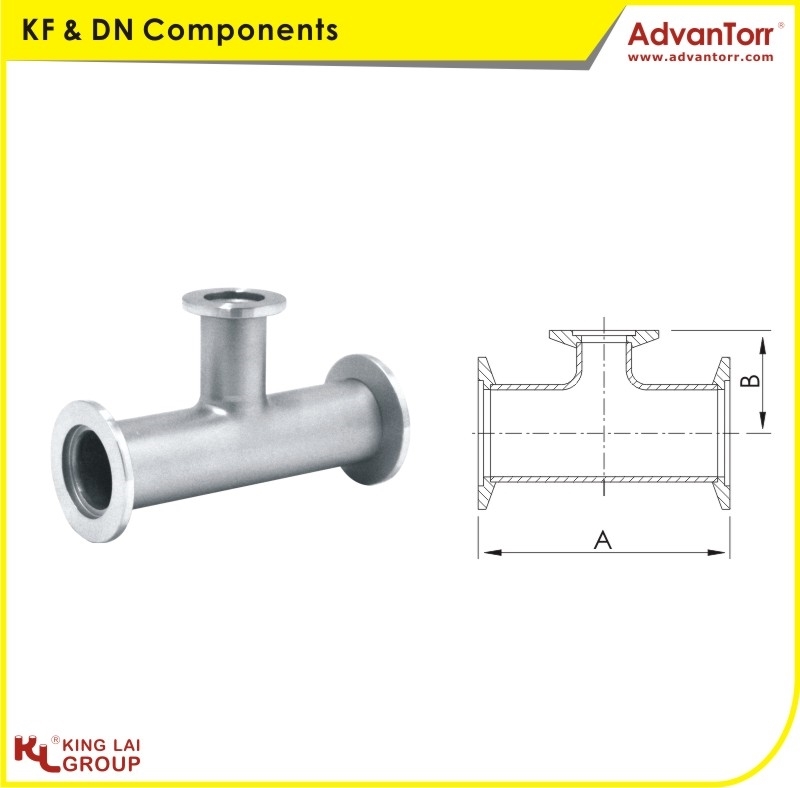

KF-RT-25x16
Type: Reducing
Main Flange Size: KF25
Reducer Flange Size: KF16
Dim B: 27.80
AB
10043.2
KF-RT-25x16-1
Type: Reducing
Main Flange Size: KF25
Reducer Flange Size: KF16
Dim B: 43.20
AB
10027.8
KF-RT-25X16-2
Type: Reducing
Main Flange Size: KF25
Reducer Flange Size: KF16
Dim B: 32.25
AB
103.132.25
KF-RT-40x16
Type: Reducing
Main Flange Size: KF40
Reducer Flange Size: KF16
Dim B: 38.85
AB
121.938.85
KF-RT-40x16-1
Type: Reducing
Main Flange Size: KF40
Reducer Flange Size: KF16
Dim B: 34.00
AB
13034
KF-RT-40x16-2
Type: Reducing
Main Flange Size: KF40
Reducer Flange Size: KF16
Dim B: 49.50
AB
13049.5
KF-RT-40x25
Type: Reducing
Main Flange Size: KF40
Reducer Flange Size: KF25
Dim B: 57.91
AB
121.957.91
KF-RT-40x25-1
Type: Reducing
Main Flange Size: KF40
Reducer Flange Size: KF25
Dim B: 56.40
AB
13056.4
KF-RT-50x16
Type: Reducing
Main Flange Size: KF50
Reducer Flange Size: KF16
Dim B: 40.10
AB
14040.1
KF-RT-50x16-1
Type: Reducing
Main Flange Size: KF50
Reducer Flange Size: KF16
Dim B: 55.90
AB
14055.9
KF-RT-50x16-2
Type: Reducing
Main Flange Size: KF50
Reducer Flange Size: KF16
Dim B: 45.20
AB
16045.2
KF-RT-50x25
Type: Reducing
Main Flange Size: KF50
Reducer Flange Size: KF25
Dim B: 62.70
AB
14062.7
KF-RT-50x40
Type: Reducing
Main Flange Size: KF50
Reducer Flange Size: KF40
Dim B: 71.40
AB
14071.4
KF-RT-50x40-1
Type: Reducing
Main Flange Size: KF50
Reducer Flange Size: KF40
Dim B: 67.31
AB
16067.31
