KF Flanges

料號 尺寸 (Dimension in mm)

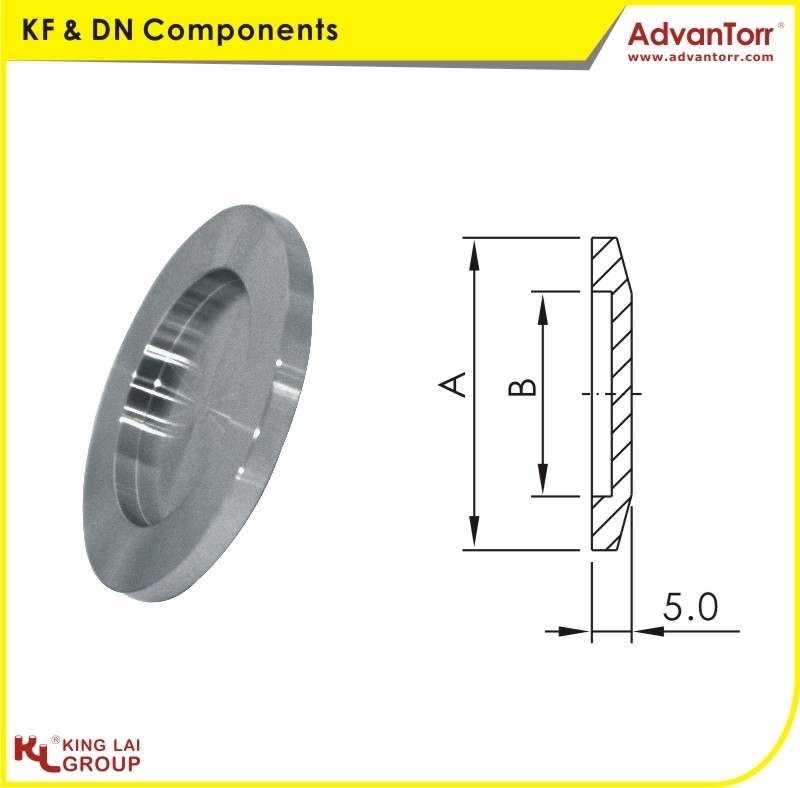

KF-BL1-10
Flange Type: Blank without Boss
Flange Size: KF10
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
AB
29.9712.27
KF-BL1-16
Flange Type: Blank without Boss
Flange Size: KF16
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
AB
29.9717.27
KF-BL1-25
Flange Type: Blank without Boss
Flange Size: KF25
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
AB
39.8826.16
KF-BL1-40
Flange Type: Blank without Boss
Flange Size: KF40
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
AB
54.8641.15
KF-BL1-50
Flange Type: Blank without Boss
Flange Size: KF50
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
AB
74.9352.32
KF-BL1-10-AL
Flange Type: Blank without Boss
Flange Size: KF10
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
AB
29.9712.27
KF-BL1-16-AL
Flange Type: Blank without Boss
Flange Size: KF16
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
AB
29.9717.27
KF-BL1-25-AL
Flange Type: Blank without Boss
Flange Size: KF25
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
AB
39.8826.16
KF-BL1-40-AL
Flange Type: Blank without Boss
Flange Size: KF40
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
AB
54.8641.15
KF-BL1-50-AL
Flange Type: Blank without Boss
Flange Size: KF50
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
AB
74.9352.32

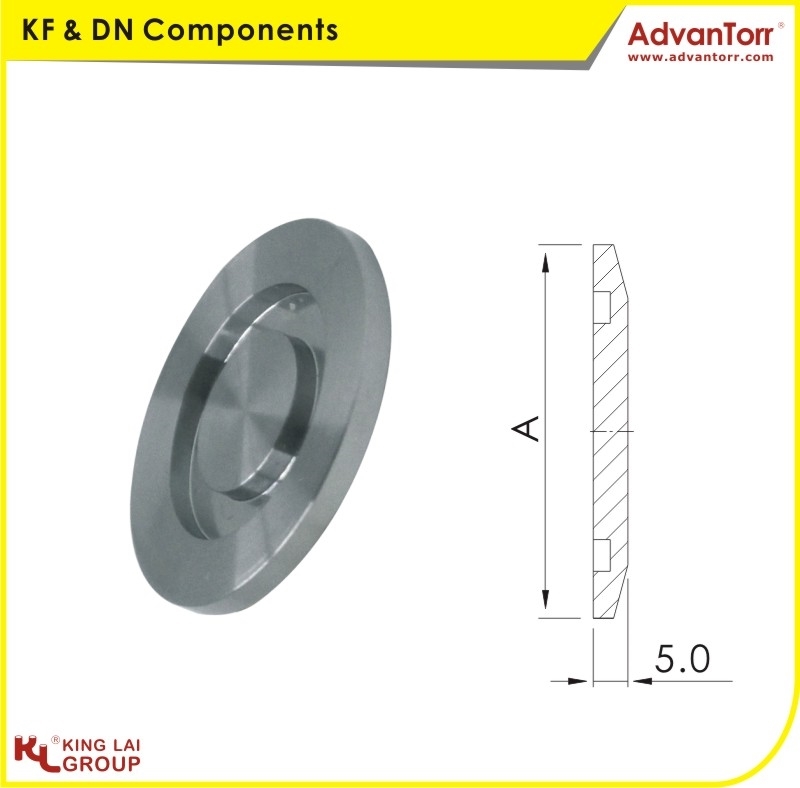

KF-BL2-10
Flange Type: Blank with Boss
Flange Size: KF10
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
A
30
KF-BL2-16
Flange Type: Blank with Boss
Flange Size: KF16
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
A
30
KF-BL2-25
Flange Type: Blank with Boss
Flange Size: KF25
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
A
40
KF-BL2-40
Flange Type: Blank with Boss
Flange Size: KF40
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
A
55
KF-BL2-50
Flange Type: Blank with Boss
Flange Size: KF50
Tube Size: Blank
Length: 5.00 mm
Material: SS304L
A
75
KF-BL2-10-AL
Flange Type: Blank with Boss
Flange Size: KF10
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
A
30
KF-BL2-16-AL
Flange Type: Blank with Boss
Flange Size: KF16
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
A
30
KF-BL2-25-AL
Flange Type: Blank with Boss
Flange Size: KF25
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
A
40
KF-BL2-40-AL
Flange Type: Blank with Boss
Flange Size: KF40
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
A
55
KF-BL2-50-AL
Flange Type: Blank with Boss
Flange Size: KF50
Tube Size: Blank
Length: 5.00 mm
Material: Alum.
A
75

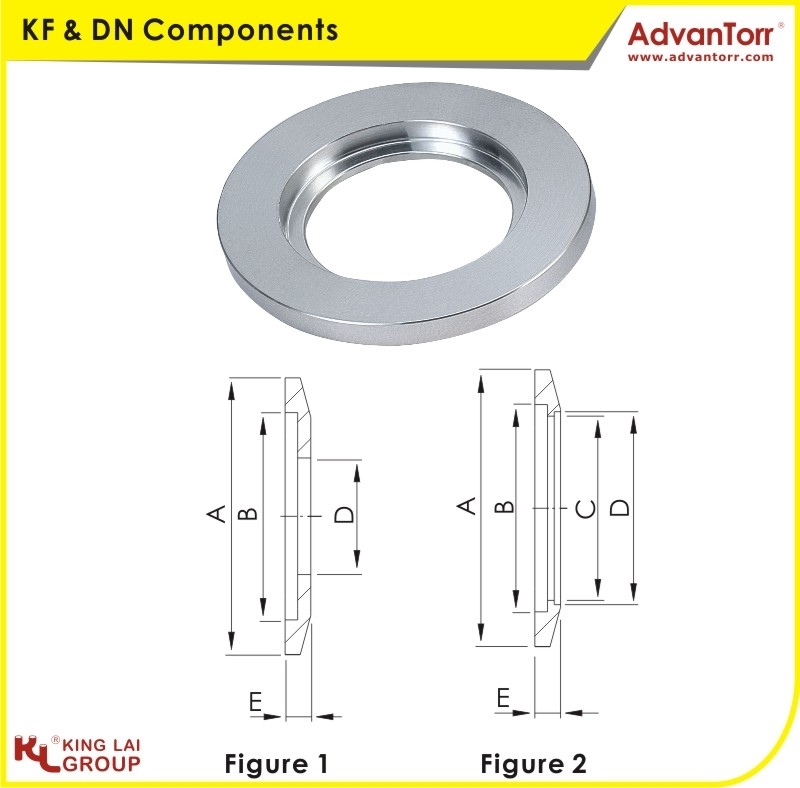

KF-BF-10x038
Flange Type: Bored Flange
Flange Size: KF10
Tube Size: 3/8"
Length: 5.10 mm
Material: SS304L
ABCDE
3012.2-9.655.1
KF-BF-16x025
Flange Type: Bored Flange
Flange Size: KF16
Tube Size: 1/4"
Length: 5.10 mm
Material: SS304L
ABCDE
3017.2-6.55.1
KF-BF-16x038
Flange Type: Bored Flange
Flange Size: KF16
Tube Size: 3/8"
Length: 5.10 mm
Material: SS304L
ABCDE
3017.2-9.655.1
KF-BF-16x050
Flange Type: Bored Flange
Flange Size: KF16
Tube Size: 1/2"
Length: 5.10 mm
Material: SS304L
ABCDE
3017.210.1612.955.1
KF-BF-16x075
Flange Type: Bored Flange
Flange Size: KF16
Tube Size: 3/4"
Length: 4.40 mm
Material: SS304L
ABCDE
3017.216.5119.34.4
KF-BF-25x025
Flange Type: Bored Flange
Flange Size: KF25
Tube Size: 1/4"
Length: 5.10 mm
Material: SS304L
ABCDE
4026.2-6.55.1
KF-BF-25x038
Flange Type: Bored Flange
Flange Size: KF25
Tube Size: 3/8"
Length: 5.10 mm
Material: SS304L
ABCDE
4026.2-9.655.1
KF-BF-25x050
Flange Type: Bored Flange
Flange Size: KF25
Tube Size: 1/2"
Length: 5.10 mm
Material: SS304L
ABCDE
4026.210.1612.955.1
KF-BF-25x075
Flange Type: Bored Flange
Flange Size: KF25
Tube Size: 3/4"
Length: 5.10 mm
Material: SS304L
ABCDE
4026.216.5119.35.1
KF-BF-25x100
Flange Type: Bored Flange
Flange Size: KF25
Tube Size: 1"
Length: 4.90 mm
Material: SS304L
ABCDE
4026.222.8825.654.9
KF-BF-40x025
Flange Type: Bored Flange
Flange Size: KF40
Tube Size: 1/4"
Length: 5.10 mm
Material: SS304L
ABCDE
5541.2-6.55.1
KF-BF-40x038
Flange Type: Bored Flange
Flange Size: KF40
Tube Size: 3/8"
Length: 5.10 mm
Material: SS304L
ABCDE
5541.2-9.655.1
KF-BF-40x050
Flange Type: Bored Flange
Flange Size: KF40
Tube Size: 1/2"
Length: 5.10 mm
Material: SS304L
ABCDE
5541.210.1612.955.1
KF-BF-40x075
Flange Type: Bored Flange
Flange Size: KF40
Tube Size: 3/4"
Length: 5.10 mm
Material: SS304L
ABCDE
5541.216.5119.35.1
KF-BF-40x100
Flange Type: Bored Flange
Flange Size: KF40
Tube Size: 1"
Length: 5.10 mm
Material: SS304L
ABCDE
5541.222.8825.655.1
KF-BF-40x150
Flange Type: Bored Flange
Flange Size: KF40
Tube Size: 1.5"
Length: 5.10 mm
Material: SS304L
ABCDE
5541.235.5838.355.1
KF-BF-50x025
Flange Type: Bored Flange
Flange Size: KF50
Tube Size: 1/4"
Length: 5.10 mm
Material: SS304L
ABCDE
7552.2-6.55.1
KF-BF-50x038
Flange Type: Bored Flange
Flange Size: KF50
Tube Size: 3/8"
Length: 5.10 mm
Material: SS304L
ABCDE
7552.2-9.655.1
KF-BF-50x050
Flange Type: Bored Flange
Flange Size: KF50
Tube Size: 1/2"
Length: 5.10 mm
Material: SS304L
ABCDE
7552.210.1612.955.1
KF-BF-50x075
Flange Type: Bored Flange
Flange Size: KF50
Tube Size: 3/4"
Length: 5.10 mm
Material: SS304L
ABCDE
7552.216.5119.35.1
KF-BF-50x100
Flange Type: Bored Flange
Flange Size: KF50
Tube Size: 1"
Length: 5.10 mm
Material: SS304L
ABCDE
7552.222.8825.655.1
KF-BF-50x150
Flange Type: Bored Flange
Flange Size: KF50
Tube Size: 1.5"
Length: 5.10 mm
Material: SS304L
ABCDE
7552.235.5838.355.1
KF-BF-50x200
Flange Type: Bored Flange
Flange Size: KF50
Tube Size: 2"
Length: 5.10 mm
Material: SS304L
ABCDE
7552.248.2651.055.1

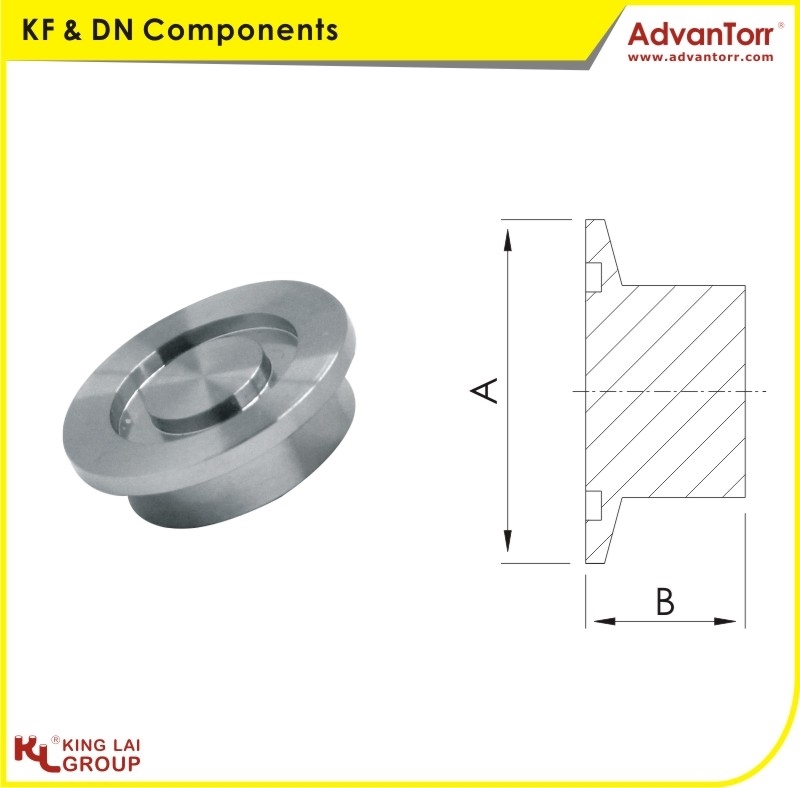

KF-UF-10
Flange Type: Unbored Stub
Flange Size: KF10
Tube Size: Blank
Length: 0.56"
Material: SS304L
AB
3014.2
KF-UF-16
Flange Type: Unbored Stub
Flange Size: KF16
Tube Size: Blank
Length: 0.56"
Material: SS304L
AB
3014.2
KF-UF-16-1
Flange Type: Unbored Stub
Flange Size: KF16
Tube Size: Blank
Length: 0.75"
Material: SS304L
AB
3019.1
KF-UF-25
Flange Type: Unbored Stub
Flange Size: KF25
Tube Size: Blank
Length: 0.47"
Material: SS304L
AB
4011.9
KF-UF-25-1
Flange Type: Unbored Stub
Flange Size: KF25
Tube Size: Blank
Length: 0.75"
Material: SS304L
AB
4019.1
KF-UF-40
Flange Type: Unbored Stub
Flange Size: KF40
Tube Size: Blank
Length: 0.50"
Material: SS304L
AB
5512.7
KF-UF-40-1
Flange Type: Unbored Stub
Flange Size: KF40
Tube Size: Blank
Length: 1.00"
Material: SS304L
AB
5525.4
KF-UF-50
Flange Type: Unbored Stub
Flange Size: KF50
Tube Size: Blank
Length: 0.62"
Material: SS304L
AB
7515.7
KF-UF-50-1
Flange Type: Unbored Stub
Flange Size: KF50
Tube Size: Blank
Length: 1.00"
Material: SS304L
AB
7525.4

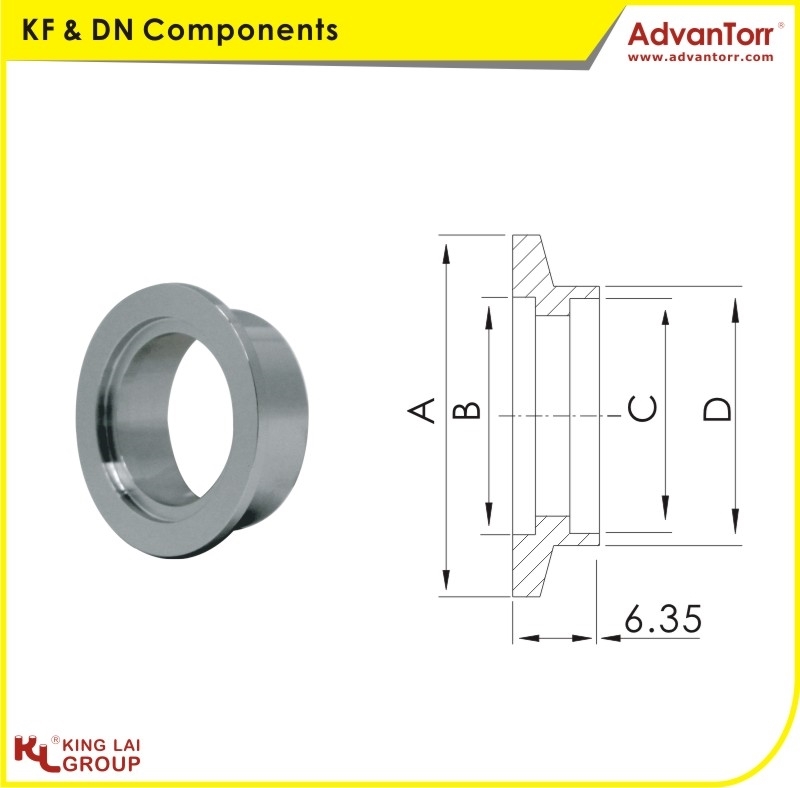

KF-SWS-10
Flange Type: Socket Weld
Flange Size: KF10
Tube Size: 1/2"
Length: 6.35 mm
Material: SS304L
ABCD
3012.212.916
KF-SWS-16
Flange Type: Socket Weld
Flange Size: KF16
Tube Size: 3/4"
Length: 6.35 mm
Material: SS304L
ABCD
3017.219.322.4
KF-SWS-25
Flange Type: Socket Weld
Flange Size: KF25
Tube Size: 1"
Length: 6.35 mm
Material: SS304L
ABCD
4026.225.728.8
KF-SWS-40
Flange Type: Socket Weld
Flange Size: KF40
Tube Size: 1.5"
Length: 6.35 mm
Material: SS304L
ABCD
5541.238.441.5
KF-SWS-50
Flange Type: Socket Weld
Flange Size: KF50
Tube Size: 2"
Length: 6.35 mm
Material: SS304L
ABCD
7552.251.154.2

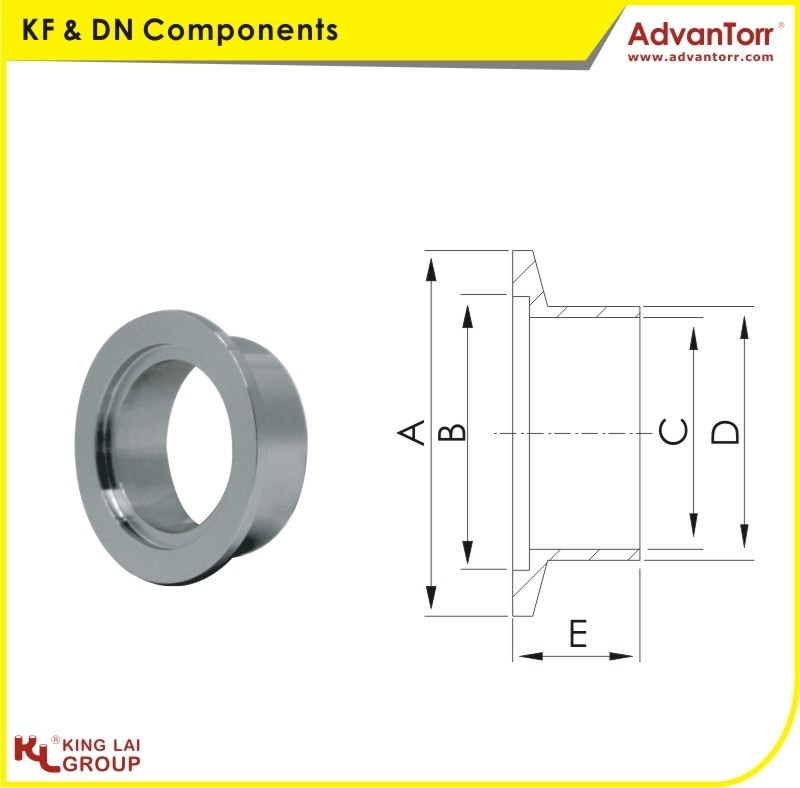

KF-SWL-10
Flange Type: Socket Weld
Flange Size: KF10
Tube Size: 1/2"
Length: 12.70 mm
Material: SS304L
ABCD
3012.21315.5
KF-SWL-16
Flange Type: Socket Weld
Flange Size: KF16
Tube Size: 3/4"
Length: 12.70 mm
Material: SS304L
ABCD
3017.219.322.2
KF-SWL-25
Flange Type: Socket Weld
Flange Size: KF25
Tube Size: 1"
Length: 12.70 mm
Material: SS304L
ABCD
4026.225.928.6
KF-SWL-40
Flange Type: Socket Weld
Flange Size: KF40
Tube Size: 1.5"
Length: 12.70 mm
Material: SS304L
ABCD
5541.238.644.5
KF-SWL-50
Flange Type: Socket Weld
Flange Size: KF50
Tube Size: 2"
Length: 12.70 mm
Material: SS304L
ABCD
7552.251.357.2

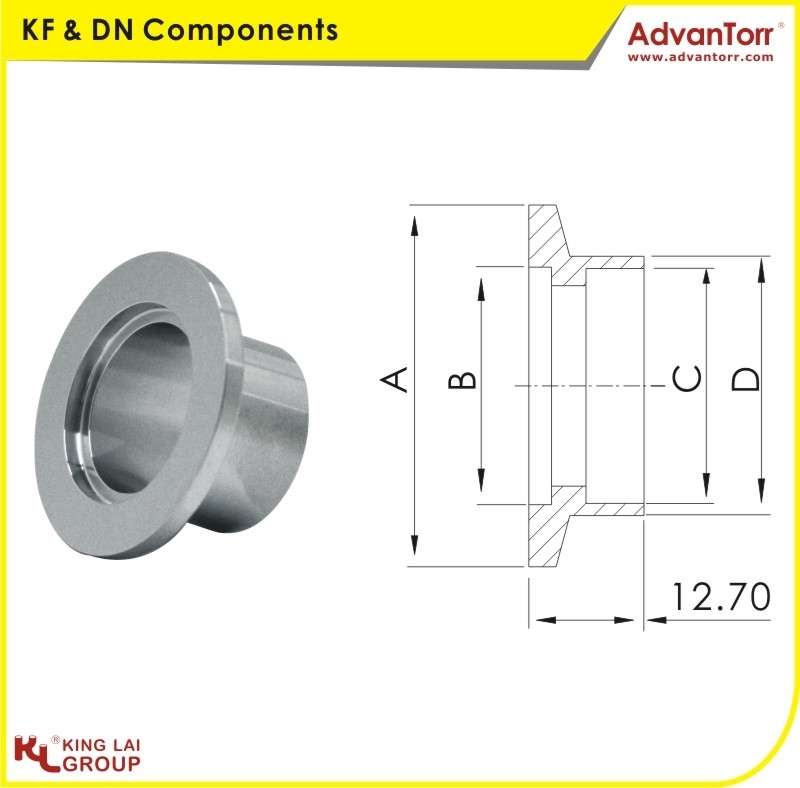

KF-BWS-10
Flange Type: Butt Weld
Flange Size: KF10
Tube Size: 1/2"
Length: 12.70 mm
Material: SS304L
ABCDE
3012.29.412.712.7
KF-BWS-16
Flange Type: Butt Weld
Flange Size: KF16
Tube Size: 3/4"
Length: 12.70 mm
Material: SS304L
ABCDE
3017.215.719.112.7
KF-BWS-25
Flange Type: Butt Weld
Flange Size: KF25
Tube Size: 1"
Length: 12.70 mm
Material: SS304L
ABCDE
4026.222.125.412.7
KF-BWS-40
Flange Type: Butt Weld
Flange Size: KF40
Tube Size: 1.5"
Length: 19.10 mm
Material: SS304L
ABCDE
5541.234.838.119.1
KF-BWS-50
Flange Type: Butt Weld
Flange Size: KF50
Tube Size: 2"
Length: 19.10 mm
Material: SS304L
ABCDE
7552.447.550.819.1

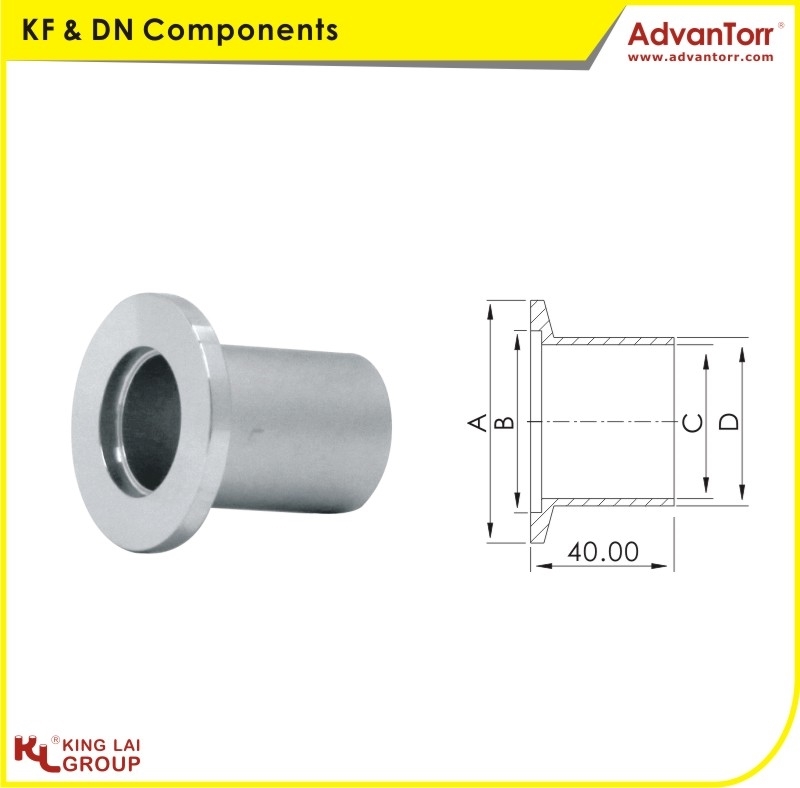

KF-BWL-10
Flange Type: Butt Weld
Flange Size: KF10
Tube Size: 1/2"
Length: 40.00 mm
Material: SS304L
ABCD
3012.29.412.7
KF-BWL-16
Flange Type: Butt Weld
Flange Size: KF16
Tube Size: 3/4"
Length: 40.00 mm
Material: SS304L
ABCD
3017.215.7519.05
KF-BWL-25
Flange Type: Butt Weld
Flange Size: KF25
Tube Size: 1"
Length: 40.00 mm
Material: SS304L
ABCD
4026.222.125.4
KF-BWL-40
Flange Type: Butt Weld
Flange Size: KF40
Tube Size: 1.5"
Length: 40.00 mm
Material: SS304L
ABCD
5541.234.938.1
KF-BWL-50
Flange Type: Butt Weld
Flange Size: KF50
Tube Size: 2"
Length: 40.00 mm
Material: SS304L
ABCD
7552.247.650.8
