ISO Elbows

料號 尺寸 (Dimension in mm)

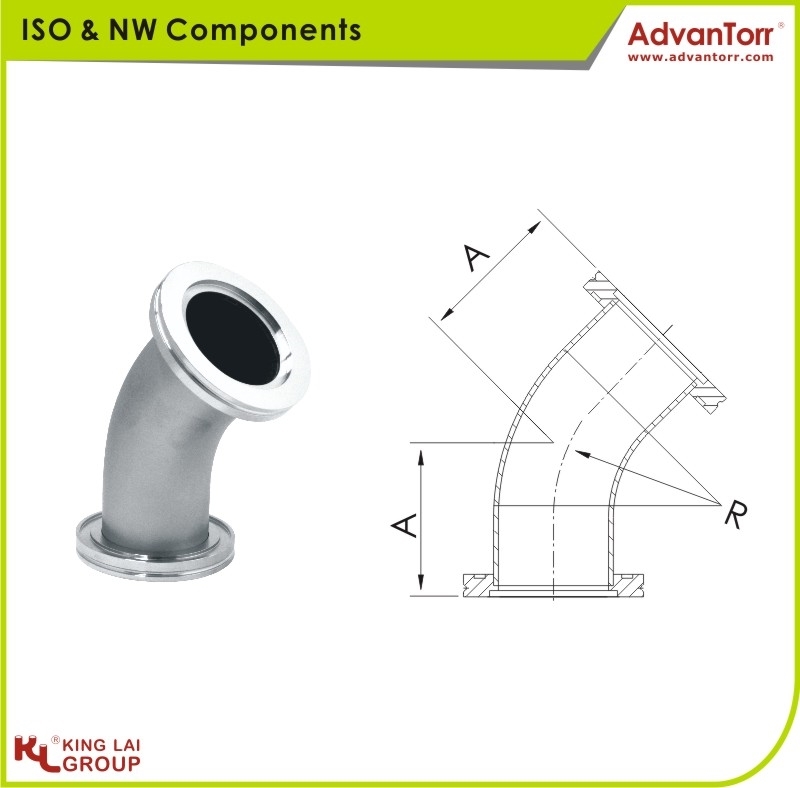

ISOK-45EL-63
Type: Radius
Angle: 45 Deg
Flange Size: ISO-K 63
Dim A: 82.30
AR
82.395.25
ISOK-45EL-80
Type: Radius
Angle: 45 Deg
Flange Size: ISO-K 80
Dim A: 100.00
AR
100114.3
ISOK-45EL-100
Type: Radius
Angle: 45 Deg
Flange Size: ISO-K 100
Dim A: 128.50
AR
128.5152.4

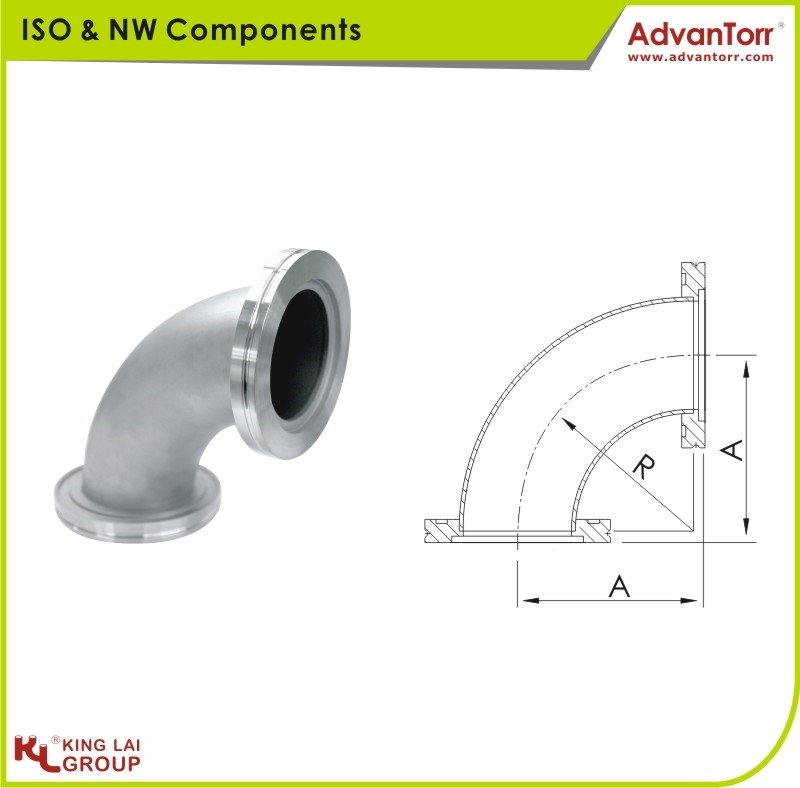

ISOK-90EL-63
Type: Radius
Angle: 90 Deg
Flange Size: ISO-K 63
Dim A: 101.60
AR
120.695.25
ISOK-90EL-80
Type: Radius
Angle: 90 Deg
Flange Size: ISO-K 80
Dim A: 120.60
AR
158.7114.3
ISOK-90EL-100
Type: Radius
Angle: 90 Deg
Flange Size: ISO-K 100
Dim A: 158.70
AR
101.6152.4

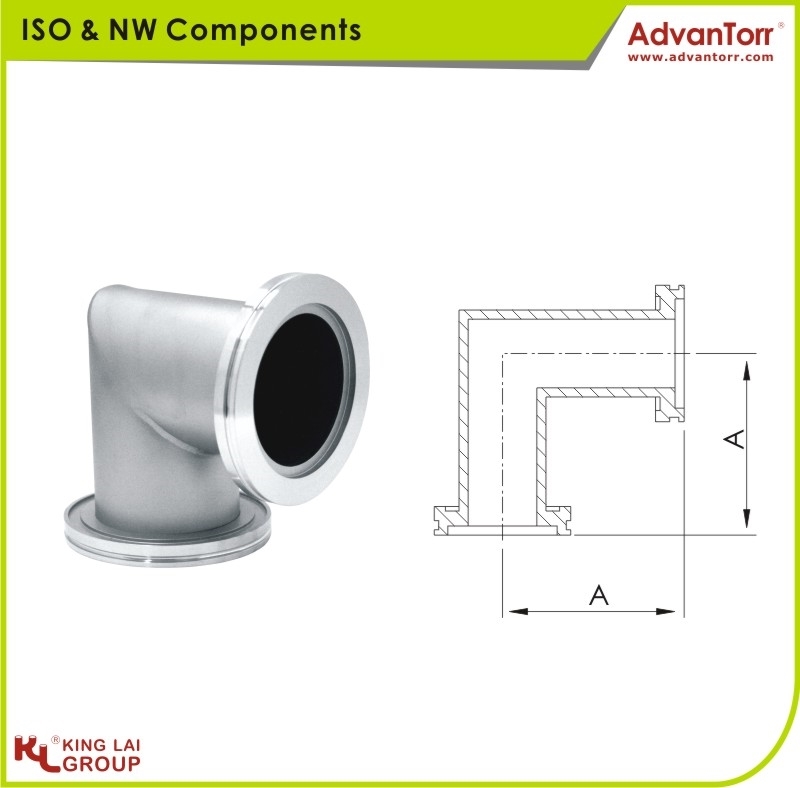

ISOK-90MEL-63
Type: Mitre
Angle: 90 Deg
Flange Size: ISO-K 63
Dim A: 82.60
A
82.6
ISOK-90MEL-63-1
Type: Mitre
Angle: 90 Deg
Flange Size: ISO-K 63
Dim A: 87.93
A
87.93
ISOK-90MEL-80
Type: Mitre
Angle: 90 Deg
Flange Size: ISO-K 80
Dim A: 88.90
A
88.9
ISOK-90MEL-80-1
Type: Mitre
Angle: 90 Deg
Flange Size: ISO-K 80
Dim A: 108.00
A
108
ISOK-90MEL-100
Type: Mitre
Angle: 90 Deg
Flange Size: ISO-K 100
Dim A: 104.90
A
104.9
ISOK-90MEL-100-1
Type: Mitre
Angle: 90 Deg
Flange Size: ISO-K 100
Dim A: 108.00
A
108
ISOK-90MEL-160
Type: Mitre
Angle: 90 Deg
Flange Size: ISO-K 160
Dim A: 138.00
A
138
ISOK-90MEL-160-1
Type: Mitre
Angle: 90 Deg
Flange Size: ISO-K 160
Dim A: 160.20
A
160.2
