NW Flanges

料號 尺寸 (Dimension in mm)

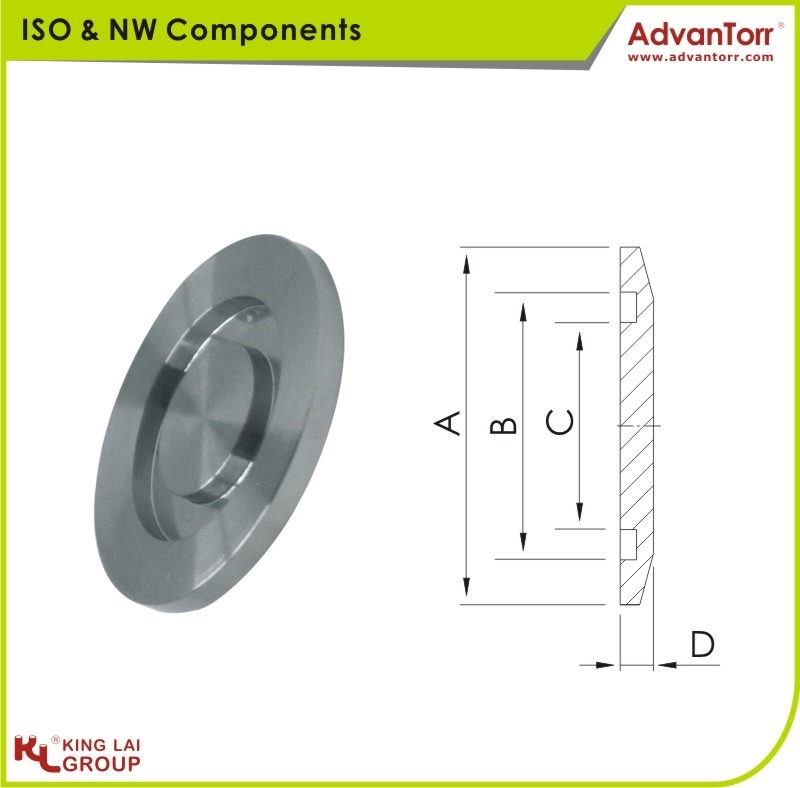

NW-BL-63
Flange Size: NW63
Tube Size: Blank
Flange SizeABCDTube Size
NW638770.2645Blank
NW-BL-80
Flange Size: NW80
Tube Size: Blank
Flange SizeABCDTube Size
NW80114837311Blank
NW-BL-100
Flange Size: NW100
Tube Size: Blank
Flange SizeABCDTube Size
NW1001341029211Blank
NW-BL-160
Flange Size: NW160
Tube Size: Blank
Flange SizeABCDTube Size
NW160190153.214311Blank

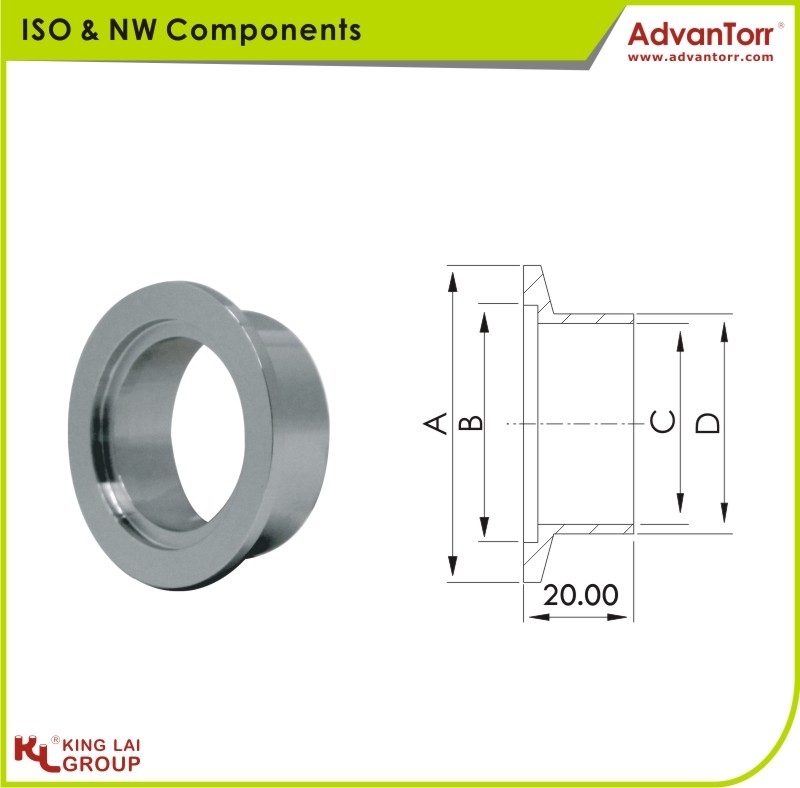

NW-BWF-80
Flange Size: NW80
Tube Size: 80A 10S
Flange SizeABCDTube Size
NW8011483.183.189.180A 10S
NW-BWF-80-1
Flange Size: NW80
Tube Size: 80A 5S
Flange SizeABCDTube Size
NW8011483.184.989.180A 5S
NW-BWF-100
Flange Size: NW100
Tube Size: 100A 10S
Flange SizeABCDTube Size
NW100134102.2108.3114.3100A 10S
NW-BWF-100-1
Flange Size: NW100
Tube Size: 100A 5S
Flange SizeABCDTube Size
NW100134102.2110.1114.3100A 5S
NW-BWF-160
Flange Size: NW160
Tube Size: 150A 10S
Flange SizeABCDTube Size
NW160190153.2158.4165.2150A 10S
NW-BWF-160-1
Flange Size: NW160
Tube Size: 150A 5S
Flange SizeABCDTube Size
NW160190153.2159.6165.2150A 5S
