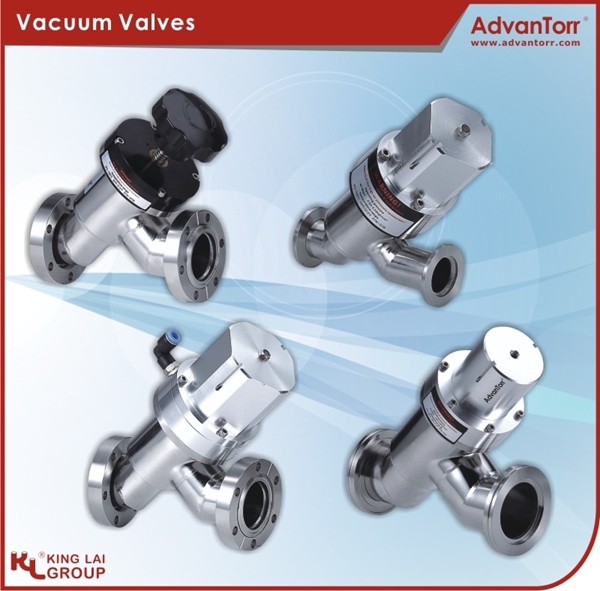

Inline Valves

料號 尺寸 (Dimension in mm)

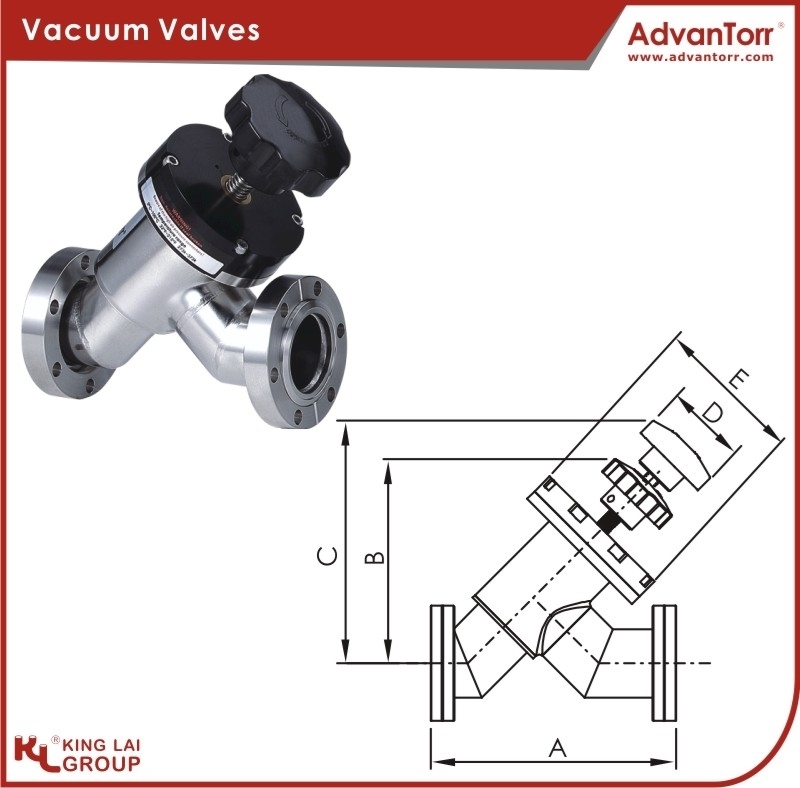

MIV-UHV-CF-133
Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF1.33" (DN16)
ABCDE
113971156070
MIV-UHV-CF-212
Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF2.12" (DN25)
ABCDE
1331231406086
MIV-UHV-CF-275
Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF2.75" (DN40)
ABCDE
18215118060100
MIV-UHV-CF-338
Actuator: Manual
Vacuum Grade: UHV
Flange Size: CF3.38" (DN50)
ABCDE
21615818860122
MIV-HV-CF-133
Actuator: Manual
Vacuum Grade: HV
Flange Size: CF1.33" (DN16)
ABCDE
1071001176061
MIV-HV-CF-212
Actuator: Manual
Vacuum Grade: HV
Flange Size: CF2.12" (DN25)
ABCDE
133971146061
MIV-HV-CF-275
Actuator: Manual
Vacuum Grade: HV
Flange Size: CF2.75" (DN40)
ABCDE
1821231406077
MIV-HV-CF-338
Actuator: Manual
Vacuum Grade: HV
Flange Size: CF3.38" (DN50)
ABCDE
2161521816085

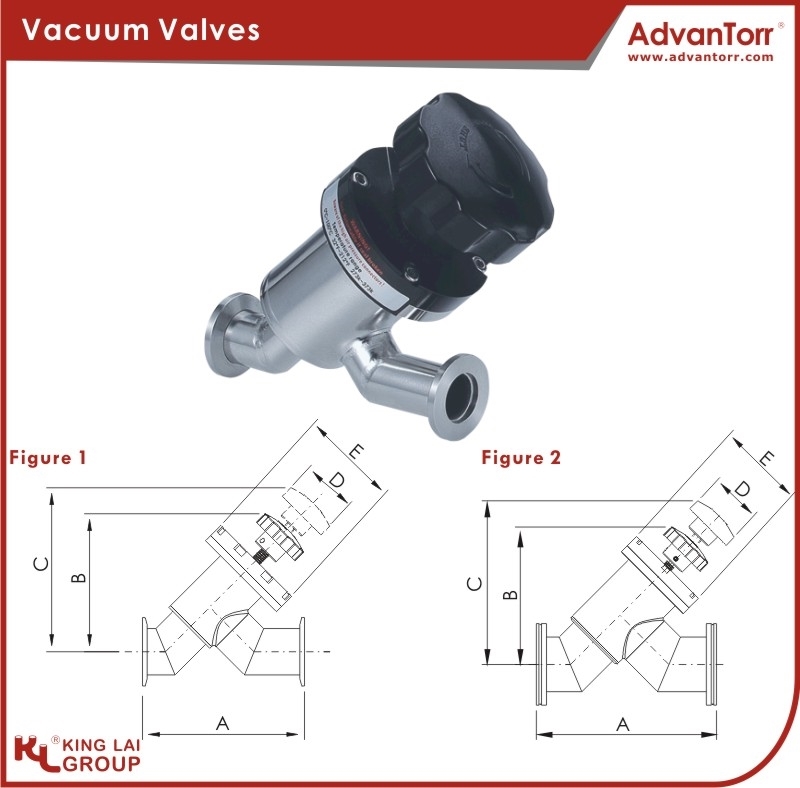

MIV-HV-KF-16
Actuator: Manual
Vacuum Grade: HV
Flange Size: KF16
ABCDE
1071001176061
MIV-HV-KF-25
Actuator: Manual
Vacuum Grade: HV
Flange Size: KF25
ABCDE
130971146061
MIV-HV-KF-40
Actuator: Manual
Vacuum Grade: HV
Flange Size: KF40
ABCDE
1781231406077
MIV-HV-KF-50
Actuator: Manual
Vacuum Grade: HV
Flange Size: KF50
ABCDE
2091521806085
MIV-HV-ISO-63
Actuator: Manual
Vacuum Grade: HV
Flange Size: ISO-K 63
ABCDE
10216019060102

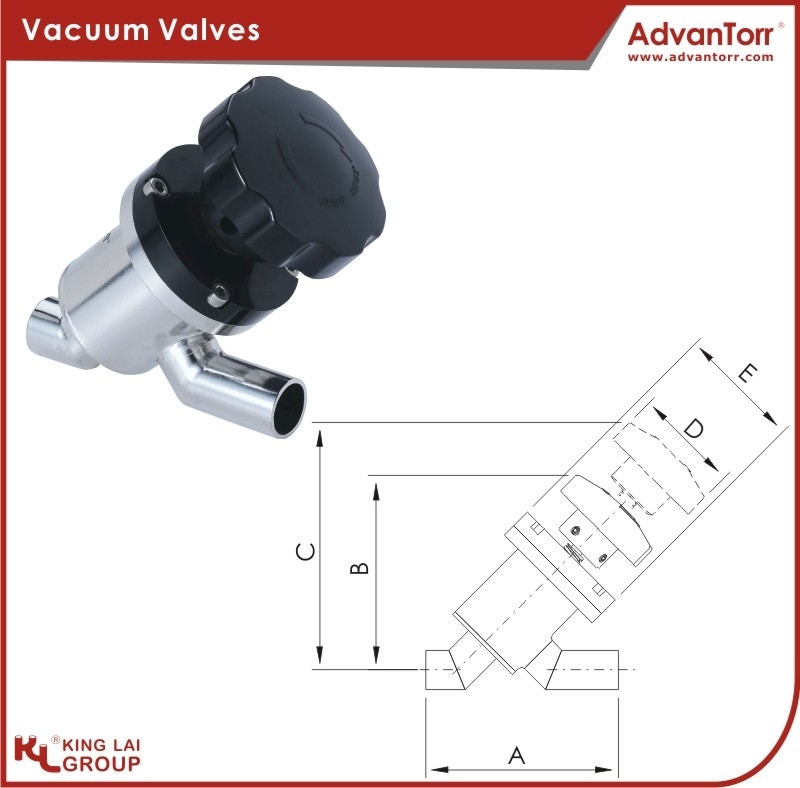

MIV-HV-BW-075
Actuator: Manual
Vacuum Grade: HV
Flange Size: ¾"
ABCDE
991001176061
MIV-HV-BW-100
Actuator: Manual
Vacuum Grade: HV
Flange Size: 1"
ABCDE
123971146061
MIV-HV-BW-150
Actuator: Manual
Vacuum Grade: HV
Flange Size: 1½"
ABCDE
1701231406077
MIV-HV-BW-200
Actuator: Manual
Vacuum Grade: HV
Flange Size: 2"
ABCDE
941521806085

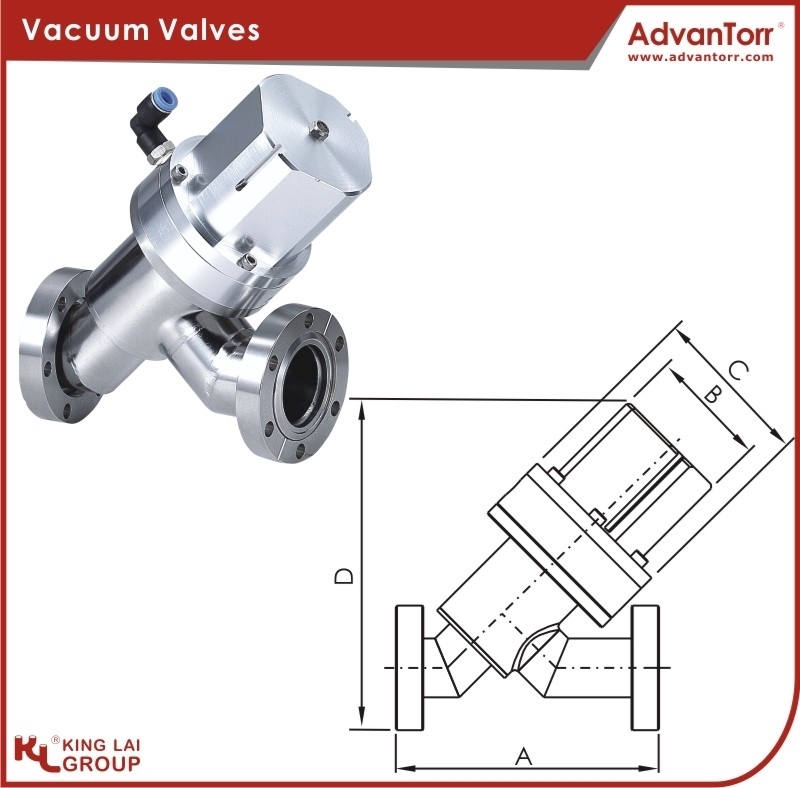

PIV-UHV-CF-133
Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF1.33" (DN16)
ABCD
1145270141
PIV-UHV-CF-212
Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF2.12" (DN25)
ABCD
1336586171
PIV-UHV-CF-275
Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF2.75" (DN40)
ABCD
18266110228
PIV-UHV-CF-450
Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF4.50" (DN63)
ABCD
35589171367
PIV-UHV-CF-600
Actuator: Pneumatic
Vacuum Grade: UHV
Flange Size: CF6.00" (DN100)
ABCD
21670122251
PIV-HV-CF-133
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF1.33" (DN16)
ABCD
1075261141
PIV-HV-CF-212
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF2.12" (DN25)
ABCD
1336577171
PIV-HV-CF-275
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF2.75" (DN40)
ABCD
1826785228
PIV-HV-CF-338
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF3.38" (DN50)
ABCD
1195261135
PIV-HV-CF-450
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF4.50" (DN63)
ABCD
35589165367
PIV-HV-CF-600
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF6.00" (DN100)
ABCD
394140227489
PIV-HV-CF-800
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: CF8.00" (DN160)
ABCD
21670102251

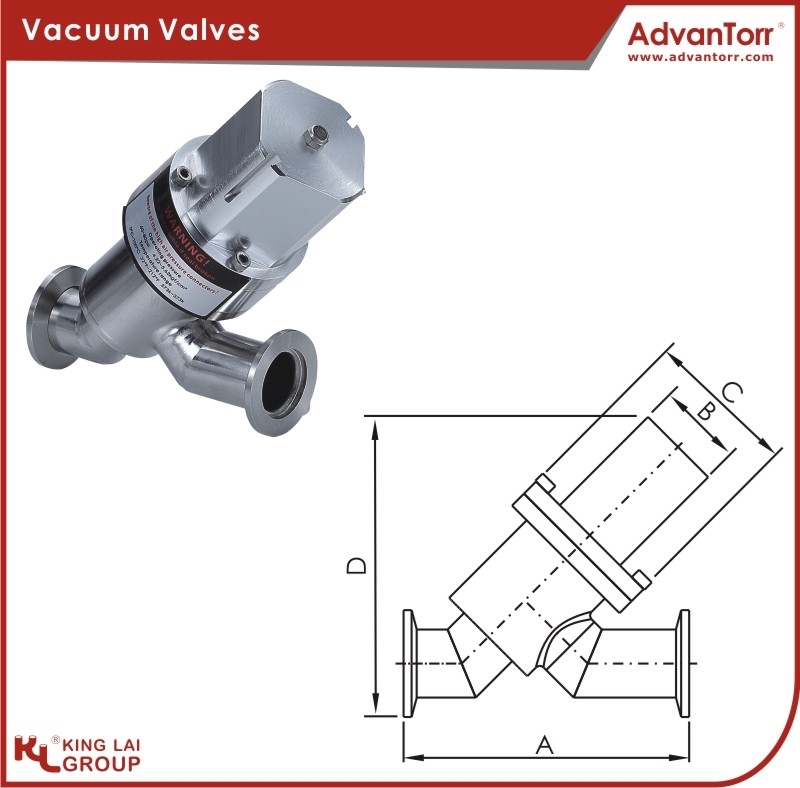

PIV-HV-KF-16
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF16
ABCD
1075261134
PIV-HV-KF-25
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF25
ABCD
1306577162
PIV-HV-KF-40
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF40
ABCD
1786785223
PIV-HV-KF-50
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: KF50
ABCD
1025261132

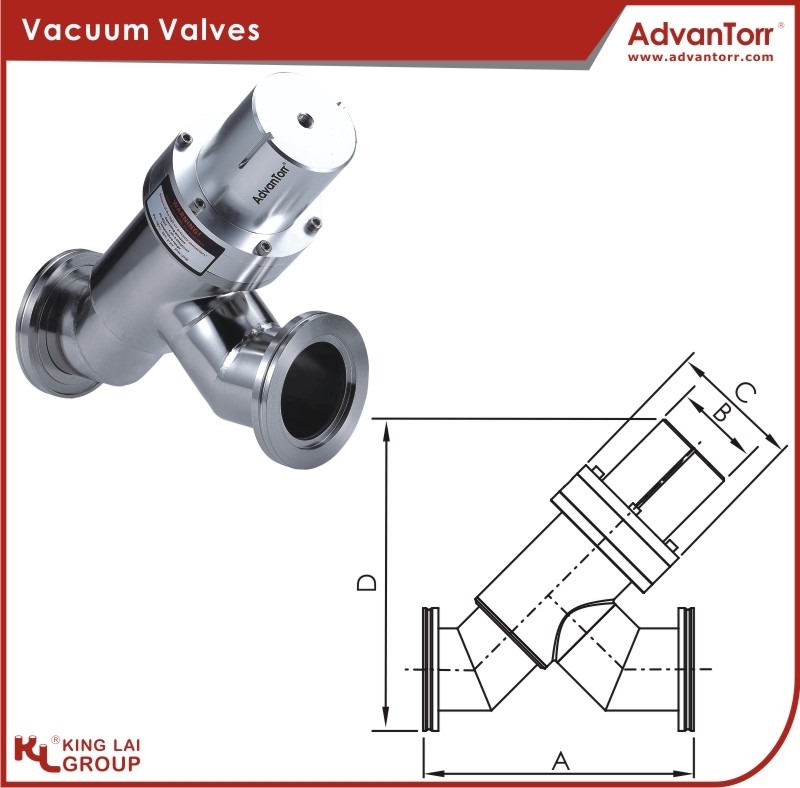

PIV-HV-ISOK-63
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 63
ABCD
26882132280
PIV-HV-ISOK-80
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 80
ABCD
34589165357
PIV-HV-ISOK-100
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 100
ABCD
381140227477
PIV-HV-ISOK-160
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ISO-K 160
ABCD
20970102242

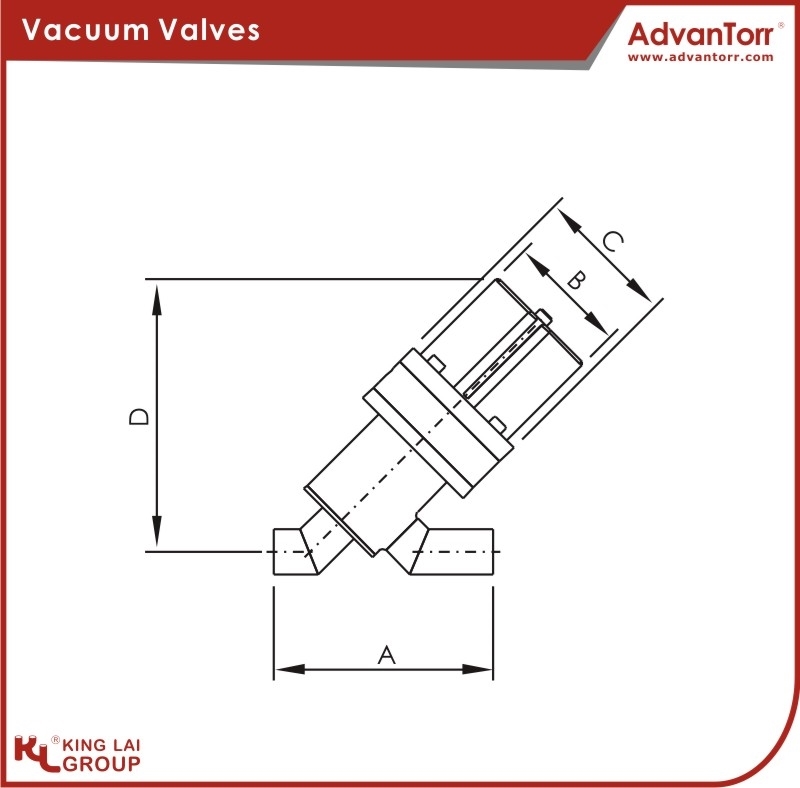

PIV-HV-BW-075
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: ¾"
ABCD
995261114
PIV-HV-BW-100
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 1"
ABCD
1236577135
PIV-HV-BW-150
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 1½"
ABCD
1706785185
PIV-HV-BW-200
Actuator: Pneumatic
Vacuum Grade: HV
Flange Size: 2"
ABCD
945261117
