DN Reducers

料號 尺寸 (Dimension in mm)

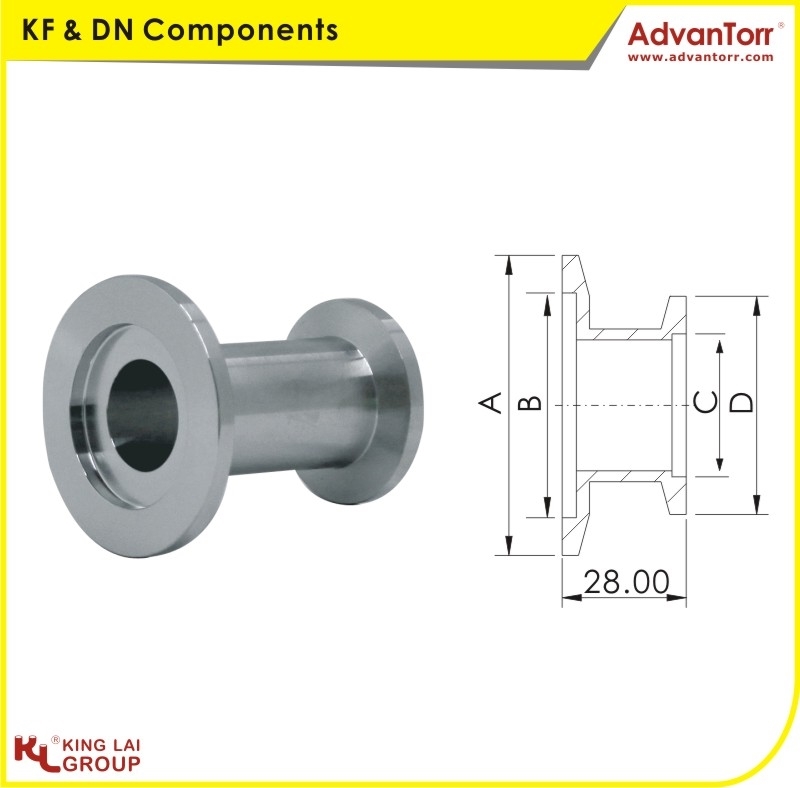

DN-SRNS-16x10
Type: Straight
Main Flange Size: DN16
Reducer Flange Size: DN10
Length: 28.00
ABCD
3017.212.230
DN-SRNS-25x10
Type: Straight
Main Flange Size: DN25
Reducer Flange Size: DN10
Length: 28.00
ABCD
4026.212.230
DN-SRNS-25x16
Type: Straight
Main Flange Size: DN25
Reducer Flange Size: DN16
Length: 28.00
ABCD
4026.217.230
DN-SRNS-40x10
Type: Straight
Main Flange Size: DN40
Reducer Flange Size: DN10
Length: 28.00
ABCD
5541.212.230
DN-SRNS-40x16
Type: Straight
Main Flange Size: DN40
Reducer Flange Size: DN16
Length: 28.00
ABCD
5541.217.230
DN-SRNS-40x25
Type: Straight
Main Flange Size: DN40
Reducer Flange Size: DN25
Length: 28.00
ABCD
5541.226.240
DN-SRNS-50x16
Type: Straight
Main Flange Size: DN50
Reducer Flange Size: DN16
Length: 28.00
ABCD
7552.217.230
DN-SRNS-50x25
Type: Straight
Main Flange Size: DN50
Reducer Flange Size: DN25
Length: 28.00
ABCD
7552.226.240
DN-SRNS-50x40
Type: Straight
Main Flange Size: DN50
Reducer Flange Size: DN40
Length: 28.00
ABCD
7552.241.255

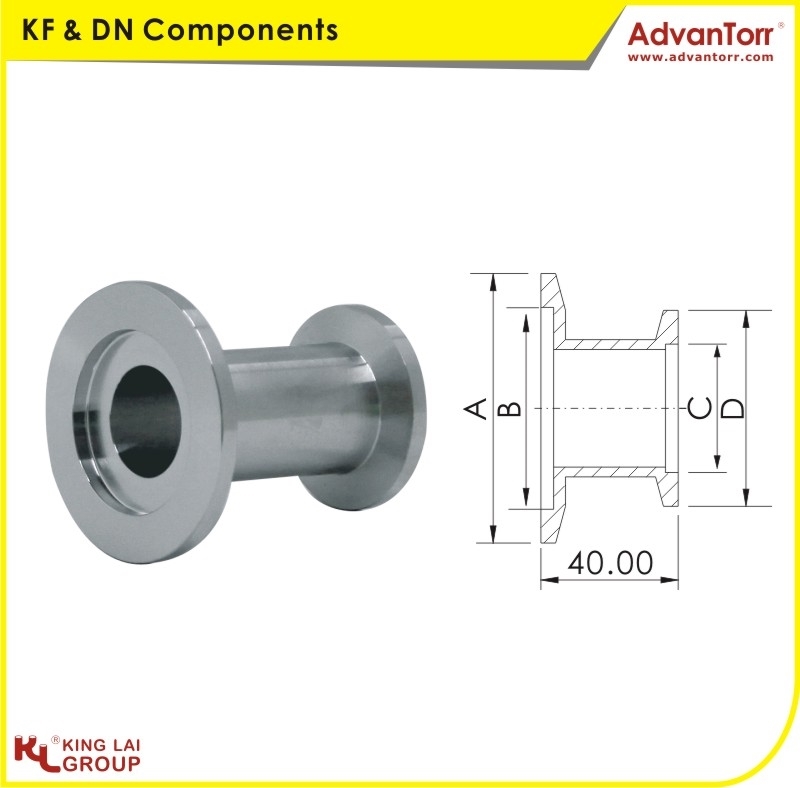

DN-SRNL-25x16
Type: Straight
Main Flange Size: DN25
Reducer Flange Size: DN16
Length: 40.00
ABCD
4026.217.230
DN-SRNL-40x16
Type: Straight
Main Flange Size: DN40
Reducer Flange Size: DN16
Length: 40.00
ABCD
5541.217.230
DN-SRNL-40x25
Type: Straight
Main Flange Size: DN40
Reducer Flange Size: DN25
Length: 40.00
ABCD
5541.226.240
DN-SRNL-50x16
Type: Straight
Main Flange Size: DN50
Reducer Flange Size: DN16
Length: 40.00
ABCD
7552.217.230
DN-SRNL-50x25
Type: Straight
Main Flange Size: DN50
Reducer Flange Size: DN25
Length: 40.00
ABCD
7552.226.240
DN-SRNL-50x40
Type: Straight
Main Flange Size: DN50
Reducer Flange Size: DN40
Length: 40.00
ABCD
7552.241.255
DN-CRN-25x16
Type: Conical
Main Flange Size: DN25
Reducer Flange Size: DN16
Length: 28.00
ABCD
5517.226.230
DN-CRN-40x16
Type: Conical
Main Flange Size: DN40
Reducer Flange Size: DN16
Length: 28.00
ABCD
5517.241.230
DN-CRN-40x25
Type: Conical
Main Flange Size: DN40
Reducer Flange Size: DN25
Length: 28.00
ABCD
7526.241.240
DN-CRN-50x16
Type: Conical
Main Flange Size: DN50
Reducer Flange Size: DN16
Length: 28.00
ABCD
7517.252.430
DN-CRN-50x25
Type: Conical
Main Flange Size: DN50
Reducer Flange Size: DN25
Length: 28.00
ABCD
7526.252.440
DN-CRN-50x40
Type: Conical
Main Flange Size: DN50
Reducer Flange Size: DN40
Length: 28.00
ABCD
4041.252.455
