CF Tees

料號 尺寸 (Dimension in mm)

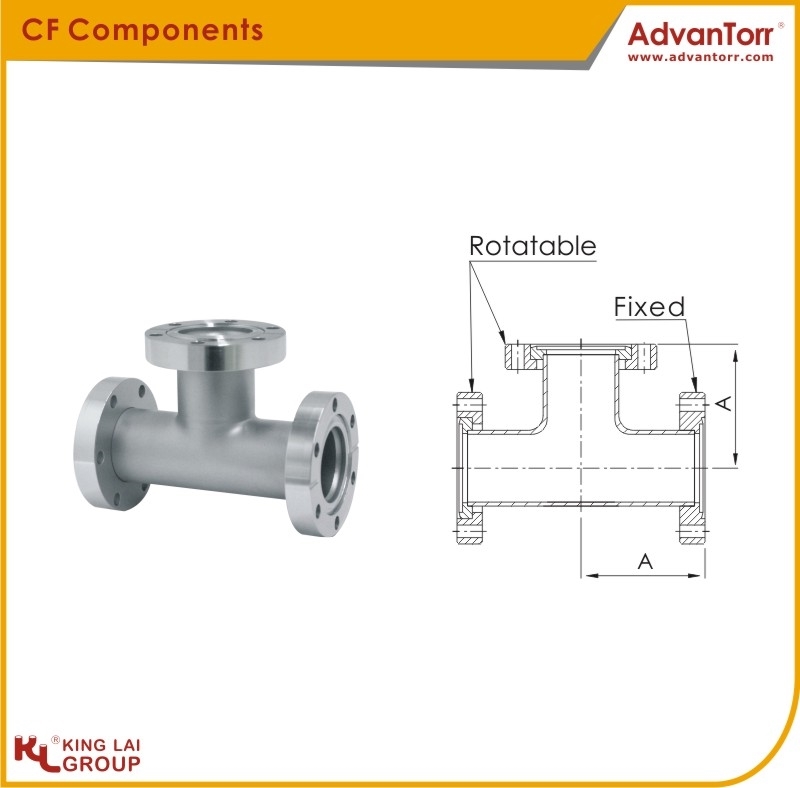

CF-ET-133
Type: Equal
Main Flange Size: CF1.33" (DN16)
Reducer Flange Size: n/a
Dim A: 38.10
A
52.05
CF-ET-212
Type: Equal
Main Flange Size: CF2.12" (DN25)
Reducer Flange Size: n/a
Dim A: 52.05
A
62.5
CF-ET-275
Type: Equal
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: n/a
Dim A: 62.50
A
81.8
CF-ET-338
Type: Equal
Main Flange Size: CF3.38" (DN50)
Reducer Flange Size: n/a
Dim A: 81.80
A
85.85
CF-ET-450
Type: Equal
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: n/a
Dim A: 85.85
A
104.65
CF-ET-450-1
Type: Equal
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: n/a
Dim A: 104.65
A
89.7
CF-ET-462
Type: Equal
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: n/a
Dim A: 89.70
A
109.7
CF-ET-600
Type: Equal
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: n/a
Dim A: 109.70
A
134.88
CF-ET-600-1
Type: Equal
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: n/a
Dim A: 134.88
A
38.1

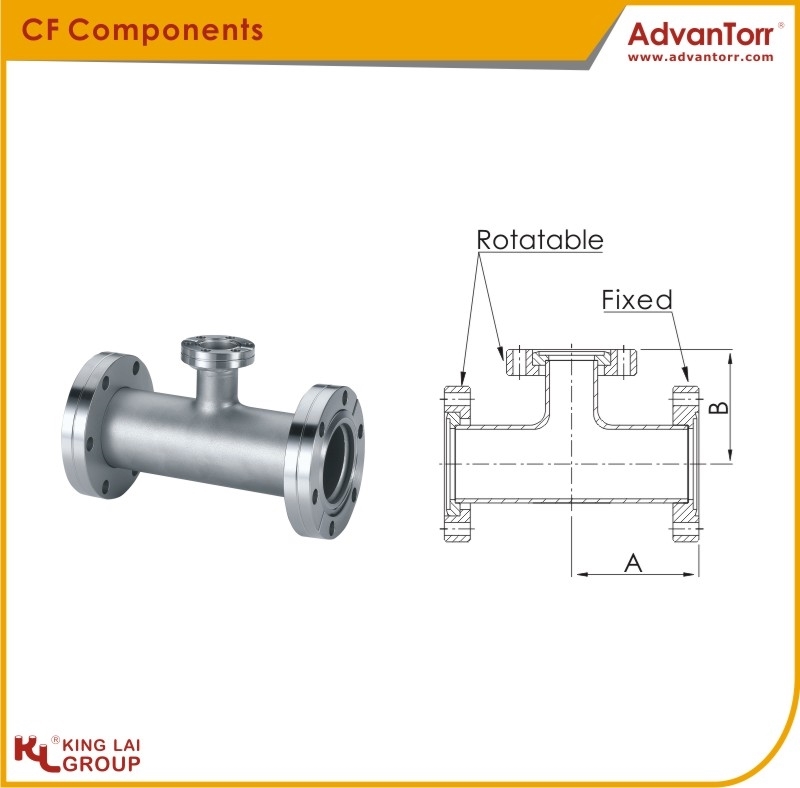

CF-RT-275x133
Type: Reducing
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: CF1.33" (DN16)
Dim A: 62.50
AB
62.547.5
CF-RT-275x212
Type: Reducing
Main Flange Size: CF2.75" (DN40)
Reducer Flange Size: CF2.12" (DN25)
Dim A: 62.50
AB
62.558.2
CF-RT-338x133
Type: Reducing
Main Flange Size: CF3.38" (DN50)
Reducer Flange Size: CF1.33" (DN16)
Dim A: 81.80
AB
81.854.1
CF-RT-338x275
Type: Reducing
Main Flange Size: CF3.38" (DN50)
Reducer Flange Size: CF2.75" (DN40)
Dim A: 81.80
AB
81.868.8
CF-RT-450x275
Type: Reducing
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: CF2.75" (DN40)
Dim A: 85.90
AB
85.975.2
CF-RT-450x338
Type: Reducing
Main Flange Size: CF4.50" (DN63)
Reducer Flange Size: CF3.38" (DN50)
Dim A: 85.90
AB
85.988.4
CF-RT-462x338
Type: Reducing
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: CF3.38" (DN50)
Dim A: 89.70
AB
89.794.7
CF-RT-462x450
Type: Reducing
Main Flange Size: CF4.62" (DN80)
Reducer Flange Size: CF4.50" (DN63)
Dim A: 89.70
AB
89.792.2
CF-RT-600x275
Type: Reducing
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF2.75" (DN40)
Dim A: 109.70
AB
109.794.2
CF-RT-600x338
Type: Reducing
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF3.38" (DN50)
Dim A: 109.70
AB
109.7107.4
CF-RT-600x450
Type: Reducing
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF4.50" (DN63)
Dim A: 109.70
AB
109.7104.9
CF-RT-600x462
Type: Reducing
Main Flange Size: CF6.00" (DN100)
Reducer Flange Size: CF4.62" (DN80)
Dim A: 109.70
AB
109.7102.4
