Flange to Thread Adaptors

Adaptor
Flange Size
Thread Size

料號尺寸 (Dimension in mm)

料號:

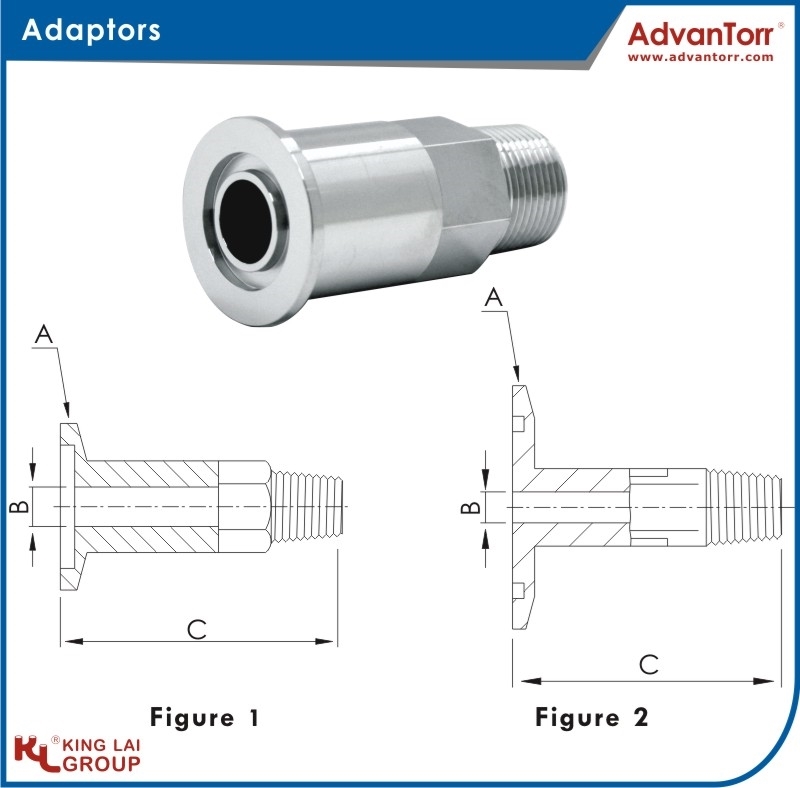

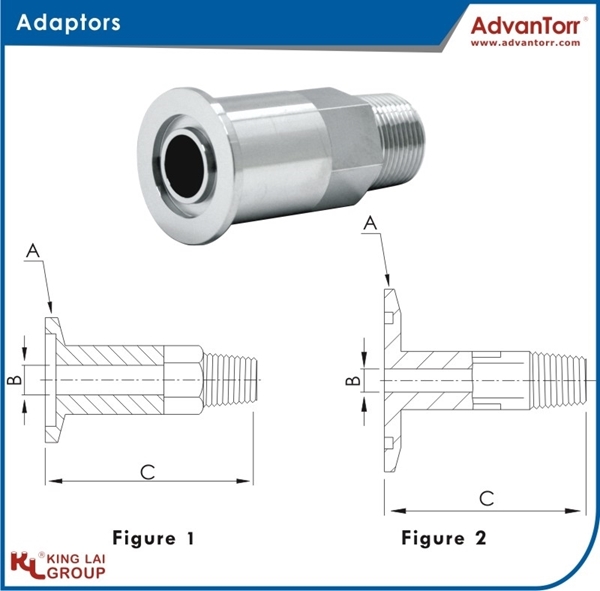

Adaptor: KF to Male NPT Adaptors
Flange Size: KF16
Thread Size: ⅛" NPT

Size	A	B	C	Figure
KF16-⅛" NPT	KF16	4.7	40	1

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF16
Thread Size: ¼" NPT

Size	A	B	C	Figure
KF16-¼" NPT	KF16	7.1	50	1

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF25
Thread Size: ⅛ " NPT

Size	A	B	C	Figure
KF25-⅛ " NPT	KF25	4.7	40	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF25
Thread Size: ¼" NPT

Size	A	B	C	Figure
KF25-¼" NPT	KF25	7.1	50	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF25
Thread Size: ½" NPT

Size	A	B	C	Figure
KF25-½" NPT	KF25	11.9	75	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF25
Thread Size: ¾" NPT

Size	A	B	C	Figure
KF25-¾" NPT	KF25	15.9	75	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF40
Thread Size: ¼" NPT

Size	A	B	C	Figure
KF40-¼" NPT	KF40	7.1	50	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF40
Thread Size: ½" NPT

Size	A	B	C	Figure
KF40-½" NPT	KF40	11.9	75	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF40
Thread Size: ¾" NPT

Size	A	B	C	Figure
KF40-¾" NPT	KF40	15.9	75	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF50
Thread Size: ¼" NPT

Size	A	B	C	Figure
KF50-¼" NPT	KF50	7.1	50	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF50
Thread Size: ½" NPT

Size	A	B	C	Figure
KF50-½" NPT	KF50	11.9	75	2

料號:

Adaptor: KF to Male NPT Adaptors
Flange Size: KF50
Thread Size: ¾" NPT

Size	A	B	C	Figure
KF50-¾" NPT	KF50	15.9	75	2

料號:

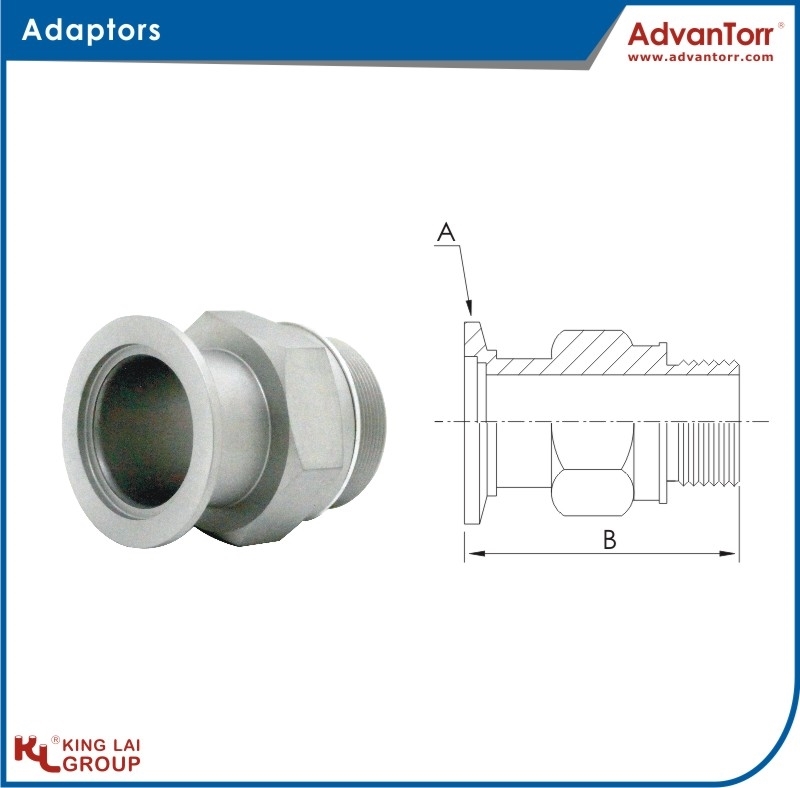

Adaptor: KF to Welch Pump Adaptors
Flange Size: KF16
Thread Size: WP1

Size	A	B
KF16-WP1	KF16	45

料號:

Adaptor: KF to Welch Pump Adaptors
Flange Size: KF16
Thread Size: WP2

Size	A	B
KF16-WP2	KF16	65

料號:

Adaptor: KF to Welch Pump Adaptors
Flange Size: KF25
Thread Size: WP1

Size	A	B
KF25-WP1	KF25	70.1

料號:

Adaptor: KF to Welch Pump Adaptors
Flange Size: KF40
Thread Size: WP1

Size	A	B
KF40-WP1	KF40	65

料號:

Adaptor: KF to Welch Pump Adaptors
Flange Size: KF40
Thread Size: WP2

Size	A	B
KF40-WP2	KF40	65.3

料號:

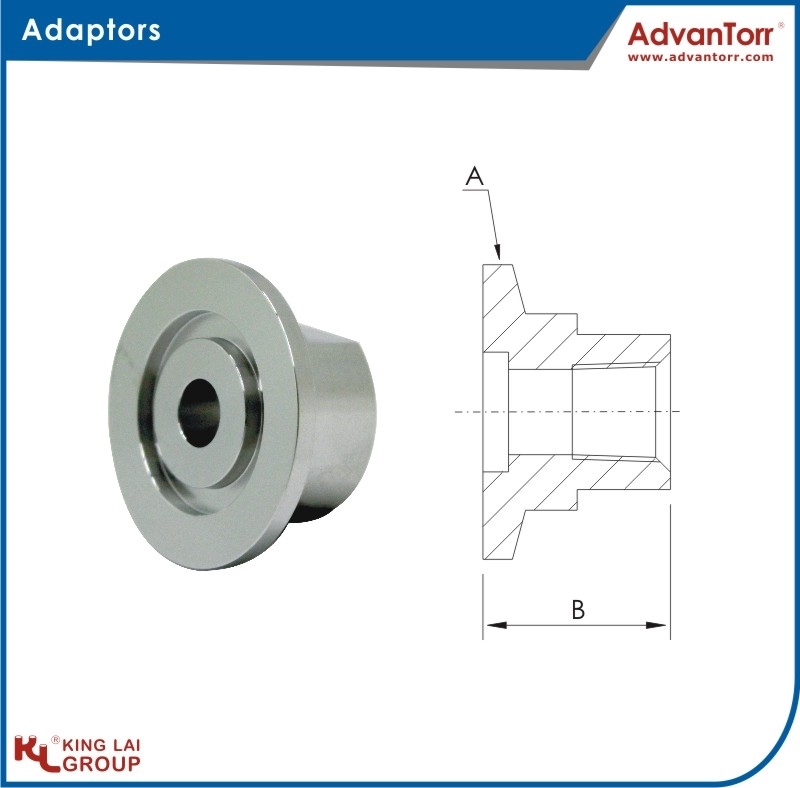

Adaptor: KF to Female NPT Adaptors
Flange Size: KF10
Thread Size: ⅛ " NPT

Size	A	B
KF10-⅛ " NPT	KF10	19.1

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF10
Thread Size: ¼" NPT

Size	A	B
KF10-¼" NPT	KF10	19.1

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF16
Thread Size: ⅛ " NPT

Size	A	B
KF16-⅛ " NPT	KF16	19.1

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF16
Thread Size: ¼" NPT

Size	A	B
KF16-¼" NPT	KF16	19.1

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF25
Thread Size: ⅛ " NPT

Size	A	B
KF25-⅛ " NPT	KF25	19.1

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF25
Thread Size: ¼" NPT

Size	A	B
KF25-¼" NPT	KF25	19.1

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF25
Thread Size: ½" NPT

Size	A	B
KF25-½" NPT	KF25	25.4

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF25
Thread Size: ⅜" NPT

Size	A	B
KF25-⅜" NPT	KF25	19.1

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF40
Thread Size: ⅛ " NPT

Size	A	B
KF40-⅛ " NPT	KF40	25.4

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF40
Thread Size: ¼" NPT

Size	A	B
KF40-¼" NPT	KF40	25.4

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF40
Thread Size: ½" NPT

Size	A	B
KF40-½" NPT	KF40	25.4

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF40
Thread Size: ¾" NPT

Size	A	B
KF40-¾" NPT	KF40	25.4

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF50
Thread Size: ⅛ " NPT

Size	A	B
KF50-⅛ " NPT	KF50	25.4

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF50
Thread Size: ¼" NPT

Size	A	B
KF50-¼" NPT	KF50	25.4

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF50
Thread Size: ½" NPT

Size	A	B
KF50-½" NPT	KF50	25.4

料號:

Adaptor: KF to Female NPT Adaptors
Flange Size: KF50
Thread Size: ¾" NPT

Size	A	B
KF50-¾" NPT	KF50	25.4

料號:

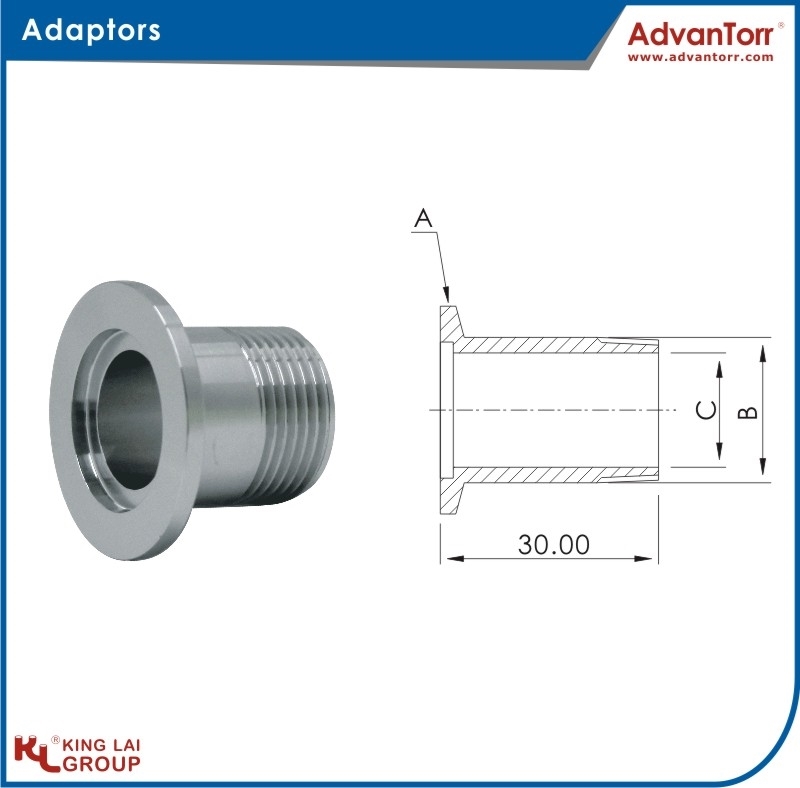

Adaptor: DN to BSPT Adaptors
Flange Size: DN10
Thread Size: ¼" x 19BSPT

Size	A	B	C
DN10-¼" x 19BSPT	DN10	13.16	9

料號:

Adaptor: DN to BSPT Adaptors
Flange Size: DN10
Thread Size: ⅜" x 19BSPT

Size	A	B	C
DN10-⅜" x 19BSPT	DN10	16.66	10

料號:

Adaptor: DN to BSPT Adaptors
Flange Size: DN16
Thread Size: ½" x 14BSPT

Size	A	B	C
DN16-½" x 14BSPT	DN16	20.96	16

料號:

Adaptor: DN to BSPT Adaptors
Flange Size: DN25
Thread Size: ⅜" x 19BSPT

Size	A	B	C
DN25-⅜" x 19BSPT	DN25	16.66	10

料號:

Adaptor: DN to BSPT Adaptors
Flange Size: DN25
Thread Size: ¾" x 14BSPT

Size	A	B	C
DN25-¾" x 14BSPT	DN25	26.44	20

料號:

Adaptor: DN to BSPT Adaptors
Flange Size: DN25
Thread Size: 1" x 11BSPT

Size	A	B	C
DN25-1" x 11BSPT	DN25	33.25	24

料號:

Adaptor: DN to BSPT Adaptors
Flange Size: DN40
Thread Size: 1¼" x 11BSPT

Size	A	B	C
DN40-1¼" x 11BSPT	DN40	41.91	35

料號:

Adaptor: DN to BSPT Adaptors
Flange Size: DN40
Thread Size: 1½" x 11BSPT

Size	A	B	C
DN40-1½" x 11BSPT	DN40	47.8	41

料號:

Adaptor: DN to BSPT Adaptors
Flange Size: DN50
Thread Size: 2" x 11BSPT

Size	A	B	C
DN50-2" x 11BSPT	DN50	59.61	51

料號:

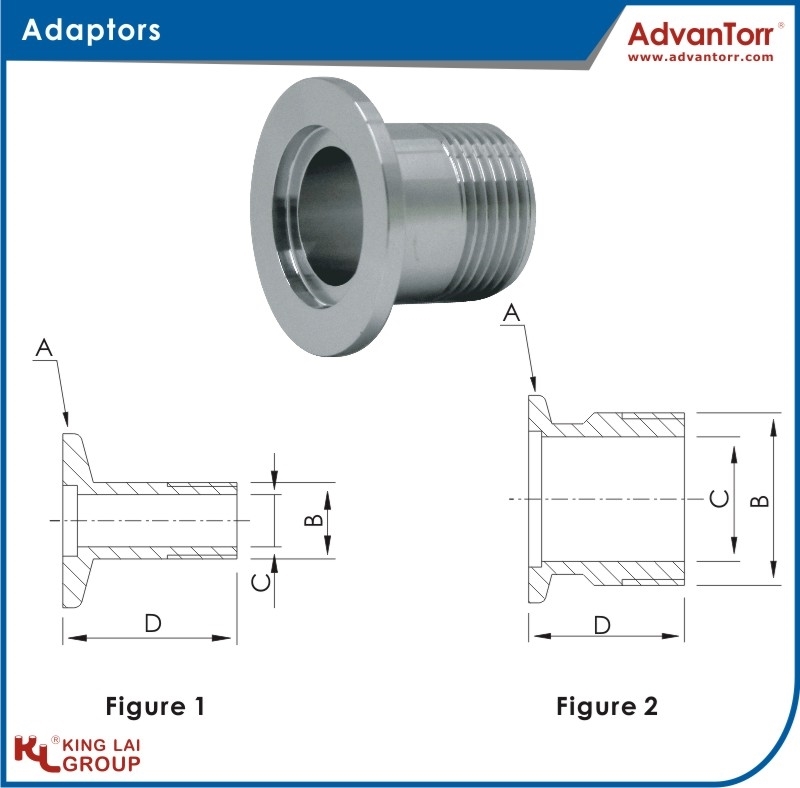

Adaptor: DN to BSP Adaptors
Flange Size: DN10
Thread Size: ¼" x 19BSP

Size	A	B	C	D	Figure
DN10-¼" x 19BSP	DN10	13.16	9	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN10
Thread Size: ⅜" x 19BSP

Size	A	B	C	D	Figure
DN10-⅜" x 19BSP	DN10	16.66	10	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN16
Thread Size: ¼" x 19BSP

Size	A	B	C	D	Figure
DN16-¼" x 19BSP	DN16	13.16	9	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN16
Thread Size: ½" x 14BSP

Size	A	B	C	D	Figure
DN16-½" x 14BSP	DN16	20.96	16	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN25
Thread Size: ½" x 14BSP

Size	A	B	C	D	Figure
DN25-½" x 14BSP	DN25	20.96	16	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN25
Thread Size: ¾" x 14BSP

Size	A	B	C	D	Figure
DN25-¾" x 14BSP	DN25	26.44	20	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN25
Thread Size: 1" x 11BSP

Size	A	B	C	D	Figure
DN25-1" x 11BSP	DN25	33.25	24	30	2

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN40
Thread Size: ¼" x 19BSP

Size	A	B	C	D	Figure
DN40-¼" x 19BSP	DN40	13.16	9	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN40
Thread Size: ½" x 14BSP

Size	A	B	C	D	Figure
DN40-½" x 14BSP	DN40	20.96	16	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN40
Thread Size: 1¼" x 11BSP

Size	A	B	C	D	Figure
DN40-1¼" x 11BSP	DN40	41.91	35	30	1

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN40
Thread Size: 1½" x 11BSP

Size	A	B	C	D	Figure
DN40-1½" x 11BSP	DN40	47.8	41	30	2

料號:

Adaptor: DN to BSP Adaptors
Flange Size: DN50
Thread Size: 2" x 11BSP

Size	A	B	C	D	Figure
DN50-2" x 11BSP	DN50	59.61	51	35	1
